Door Lock Cylinder Switch: Testing and Inspection

Door Key Cylinder Switch Inspection

1. Remove front door trim referring to Step 1 to 3 of Front Door Glass Removal and Installation

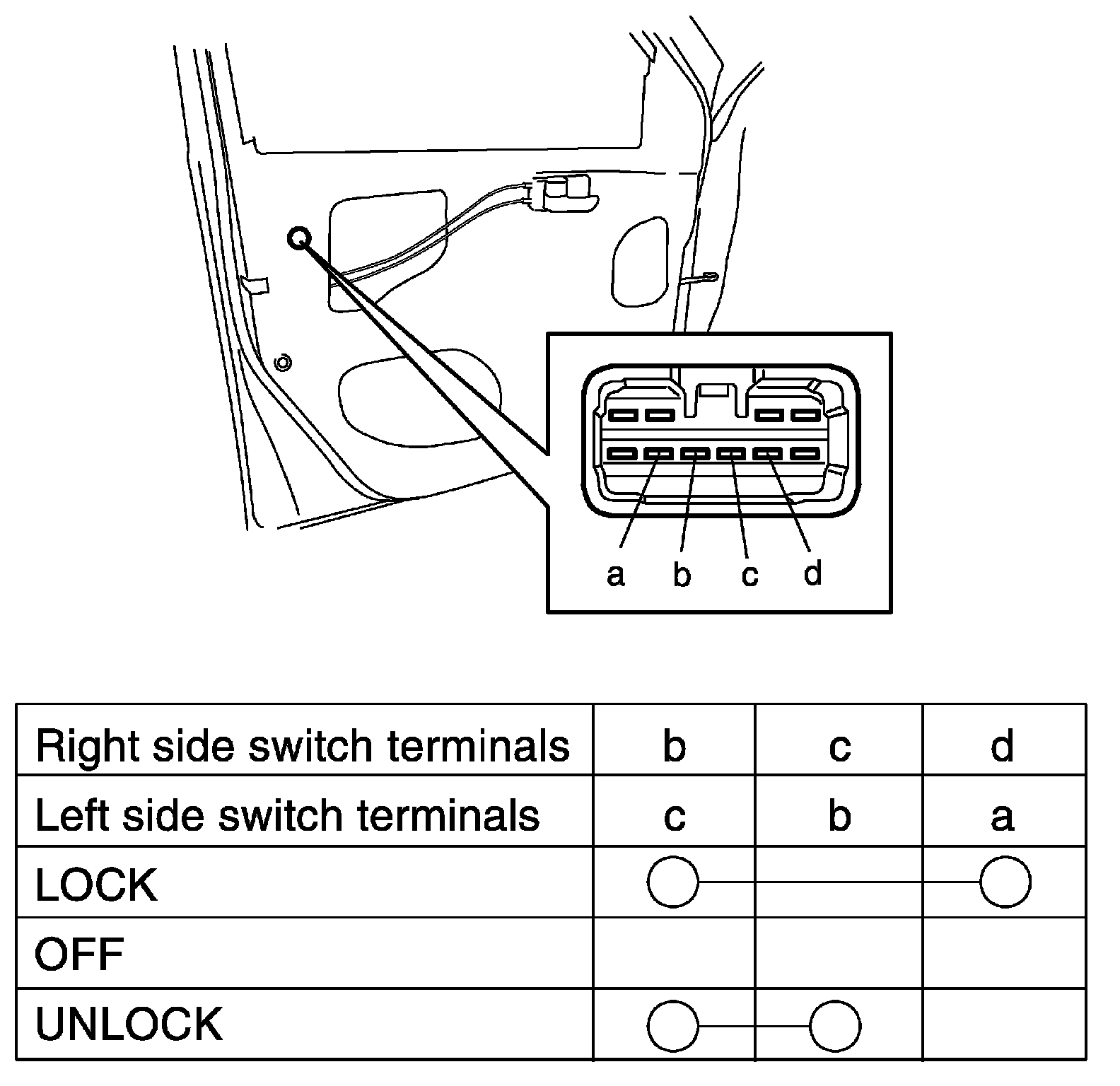

2. Check for continuity between terminals at each switch position. If check result is not as specified, replace door lock assembly.
