Carpet: Service and Repair

Floor Carpet Removal And Installation

Removal

1. Remove front seat and rear seat referring to Front Seat Removal and Installation and Rear Seat Removal and Installation.
2. Remove seat belt lower anchor bolts (front and rear).

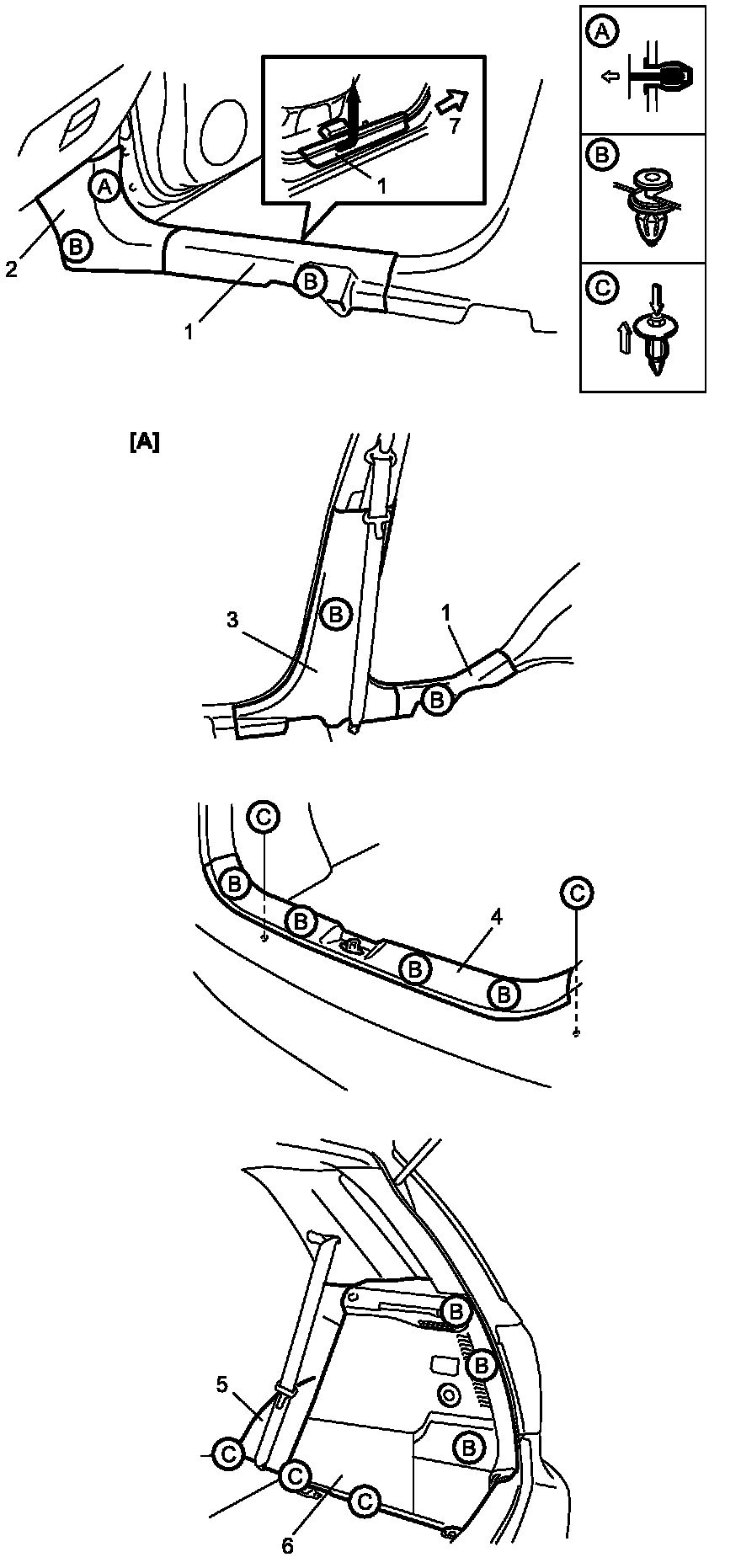

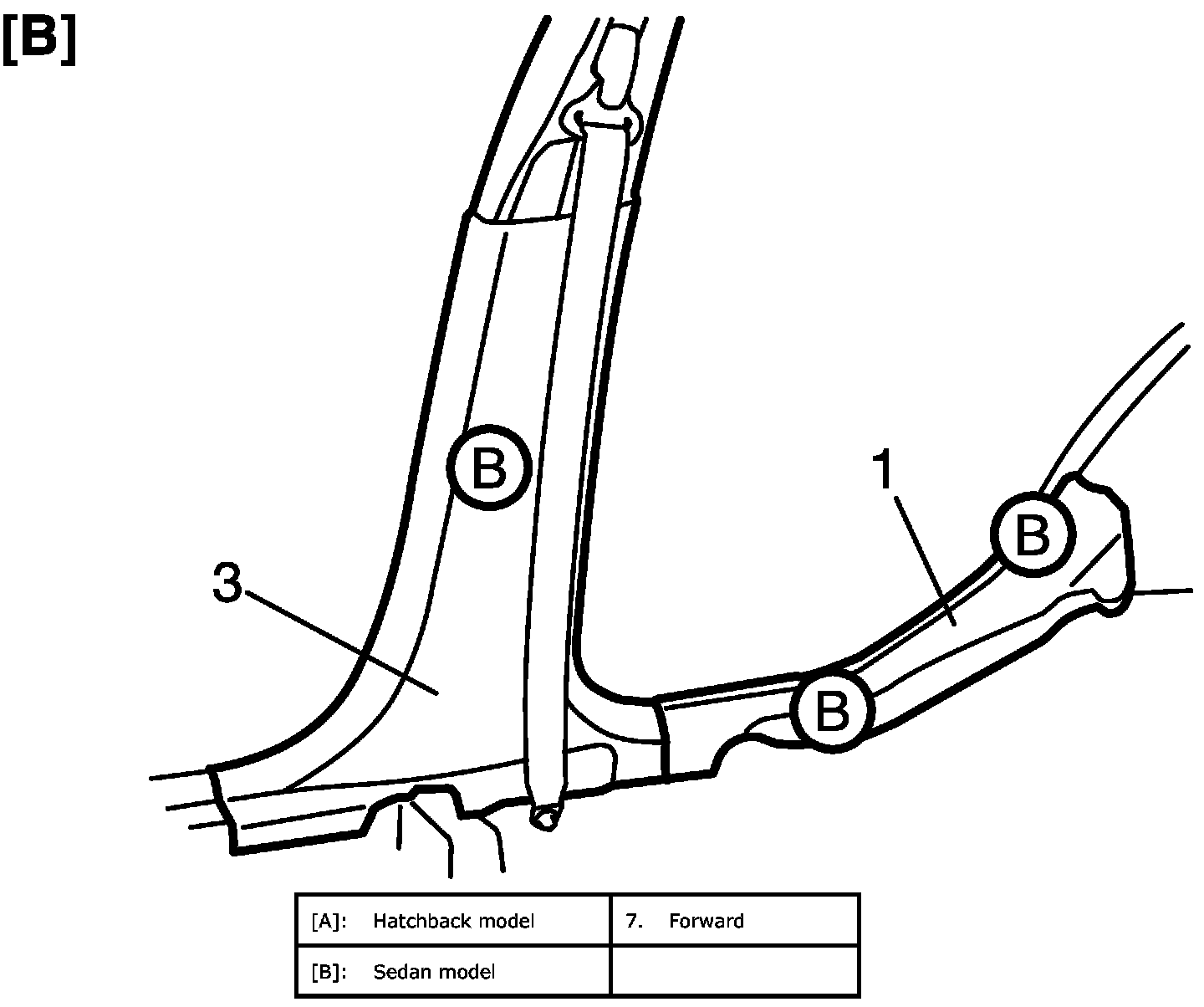

3. Remove center pillar inner lower trims (3), side sill scuffs (1) (front and rear), front pillar lower trims (2), back panel trim (4), rear quarter lower front trims (5) and rear trims (6).










4. Remove console box referring to Console Box Components.
5. Remove floor carpet.

Installation

Reverse removal sequence to install front floor carpet, noting the following instruction.
- For tightening torque of rear seat mounting bolt, refer to Rear Seat Components.
- For tightening torque of front seat mounting bolt, refer to Front Seat Components.
- For tightening torque of seat belt lower anchor bolt, refer to Front Seat Belt Components and Rear Seat Belt Components.
