BCM Power Circuit And Ground Circuit Check

BCM Power Circuit and Ground Circuit Check

Wiring Diagram

Wiring Diagram:

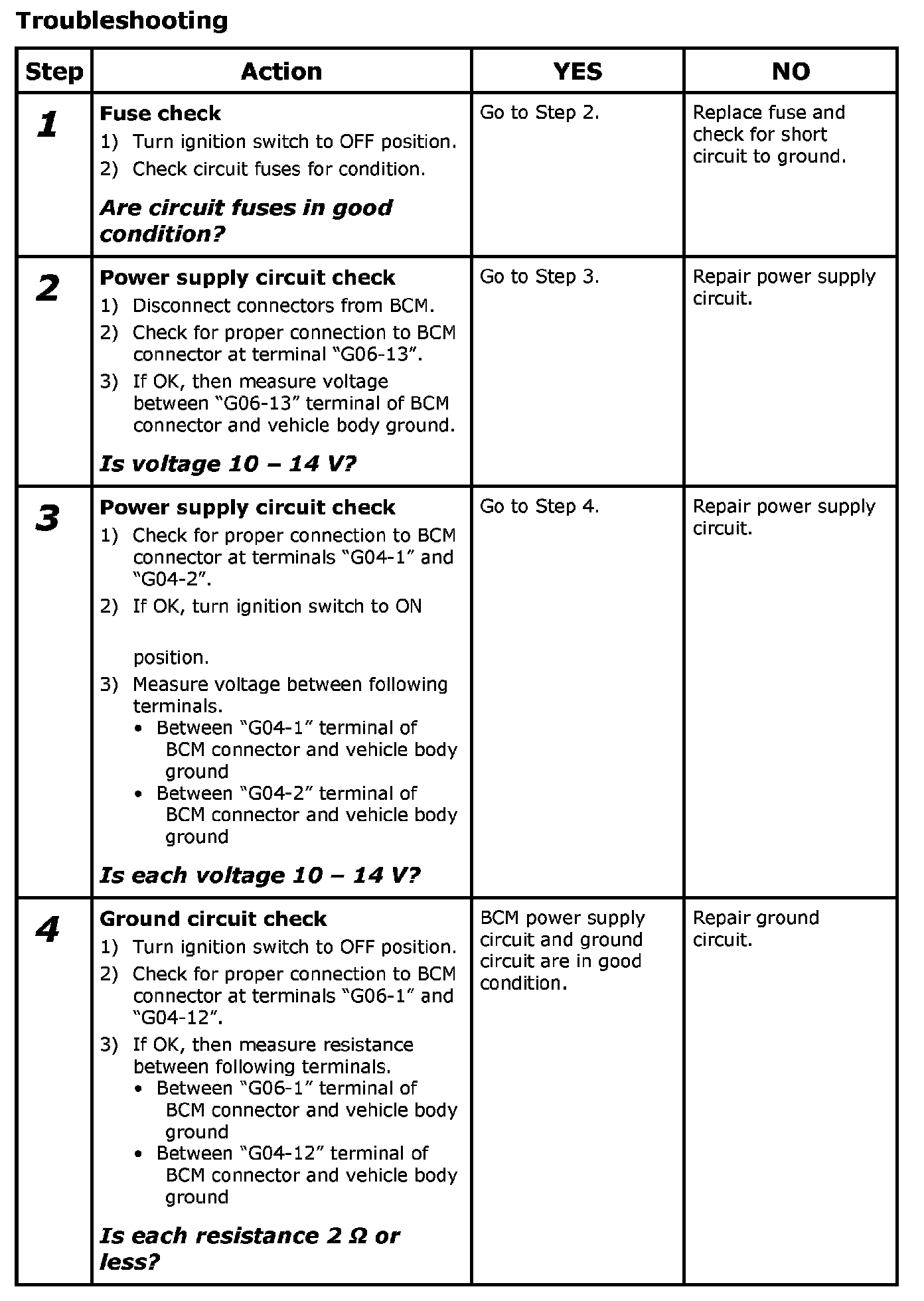

Troubleshooting

Step 1-4:
