Remote Control: Service and Repair

Remote Audio Control Switch Removal and Installation (If Equipped)

Removal
1. Remove steering wheel referring to Steering Wheel Removal and Installation.
2. Remove steering wheel cover (1) from steering wheel.

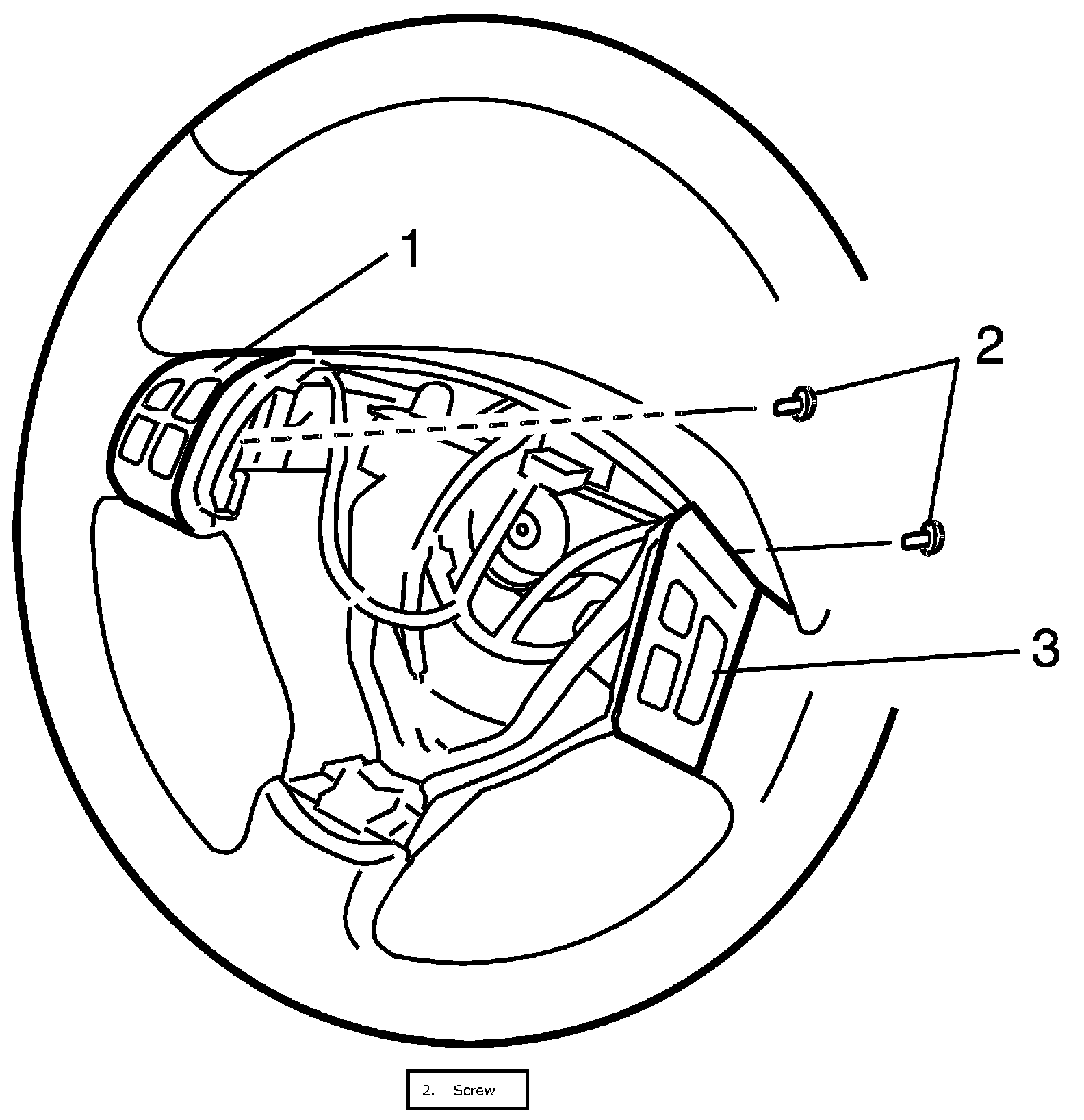

3. Remove remote audio control switch (1) with cruise control switch (3).






Installation
Reverse removal procedure noting the following.
- Install steering wheel referring to Steering Wheel Removal and Installation.
