P2119

DTC P2119

DTC Detecting Condition and Trouble Area

Wiring Diagram

Wiring Diagram:

DTC Confirmation Procedure
1. Warm up engine to normal operating temperature.
2. Run engine at idle speed for 20 sec.
3. Run engine at 3,000 rpm for 20 sec.
4. Repeat Step 2) through 3) for 3 times.

DTC Troubleshooting

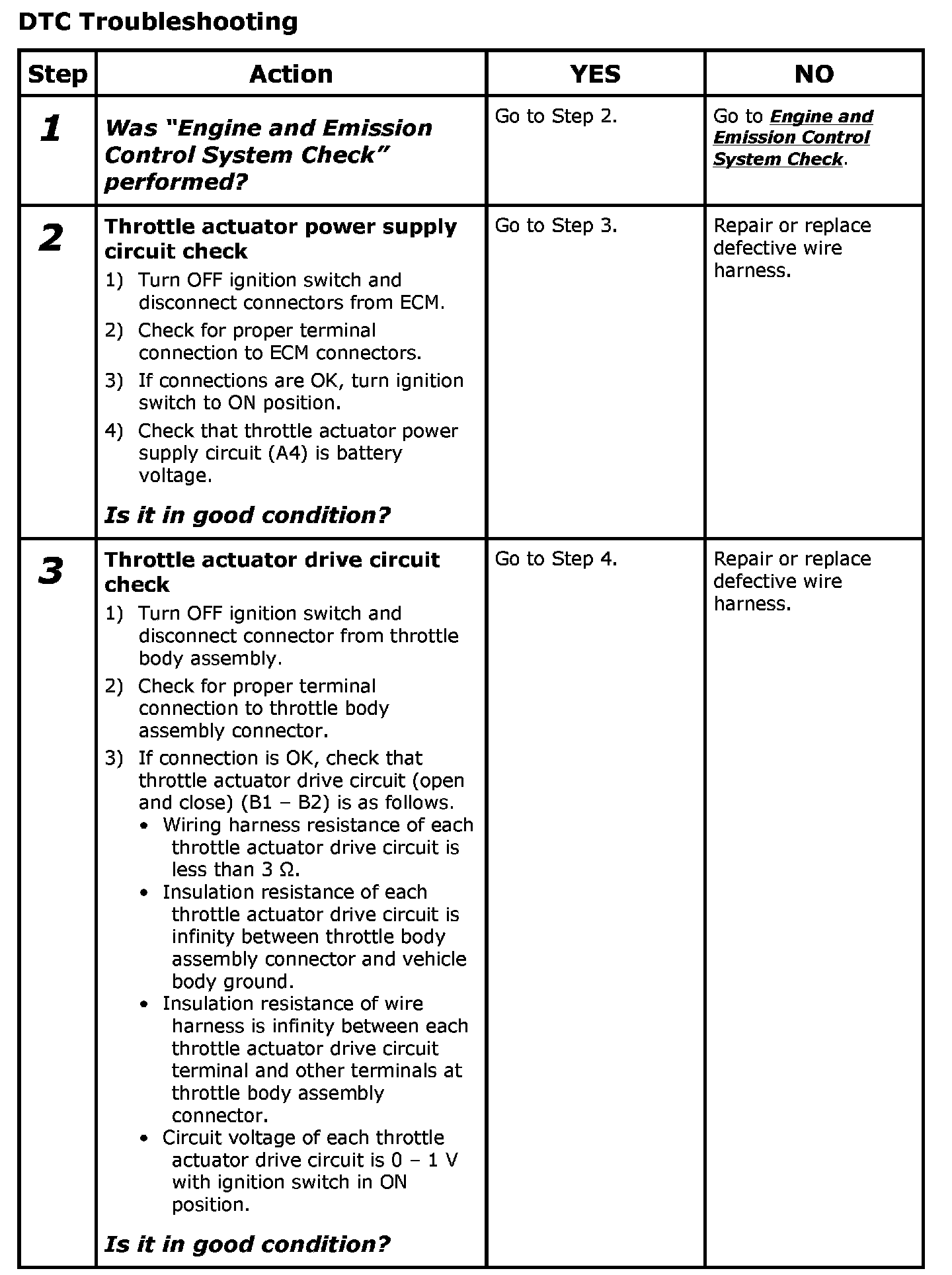

Step 1-3:

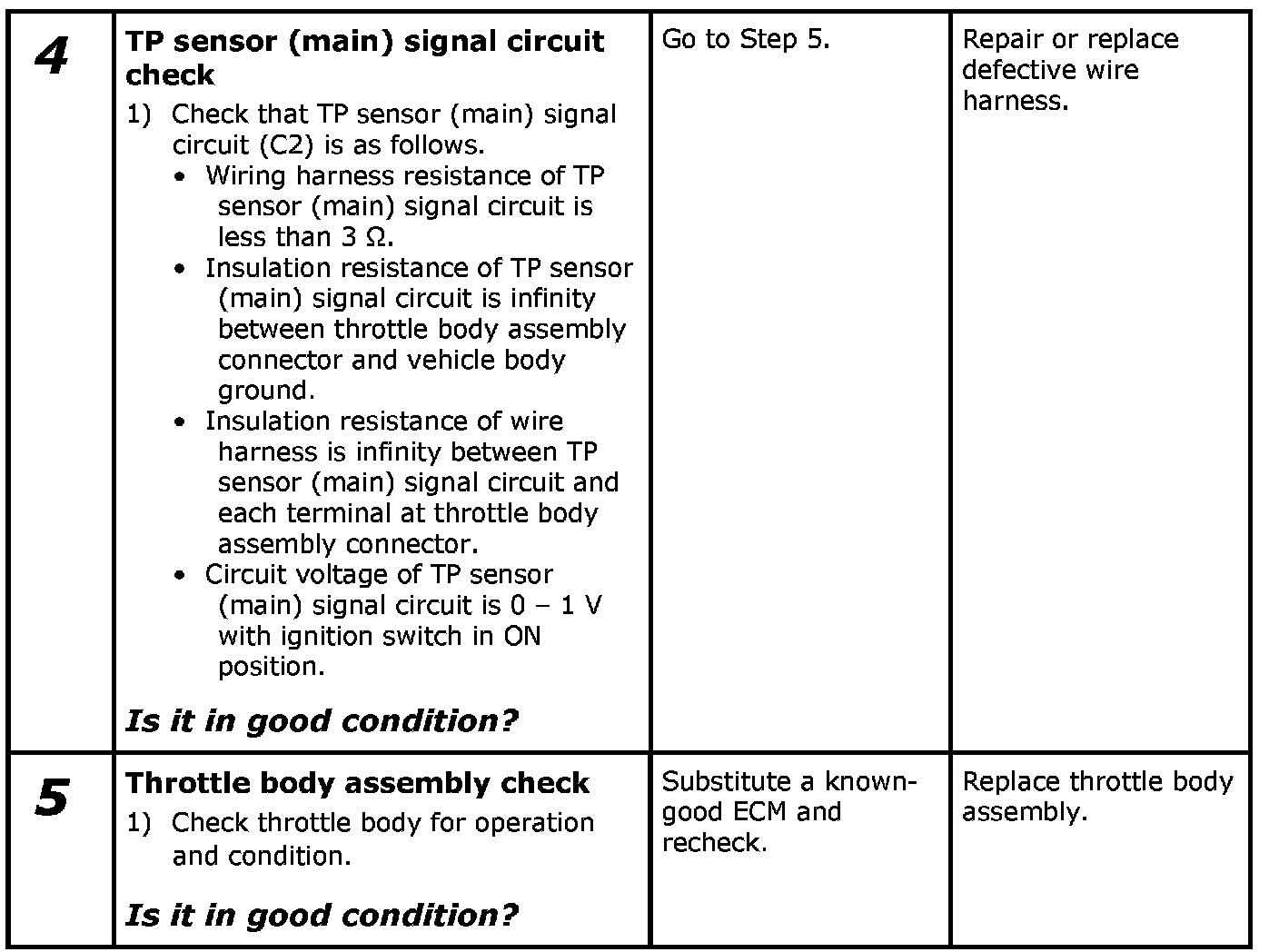

Step 4-5:
