P2101

DTC P2101

DTC Detecting Condition and Trouble Area

Wiring Diagram

Wiring Diagram:

DTC Confirmation Procedure
1. Turn ignition switch to ON position.
2. Keep the accelerator pedal at fully depressed position for 2 sec.
3. Keep the accelerator pedal at idle position for 2 sec.
4. Repeat Step 2) through 3) for 3 times.

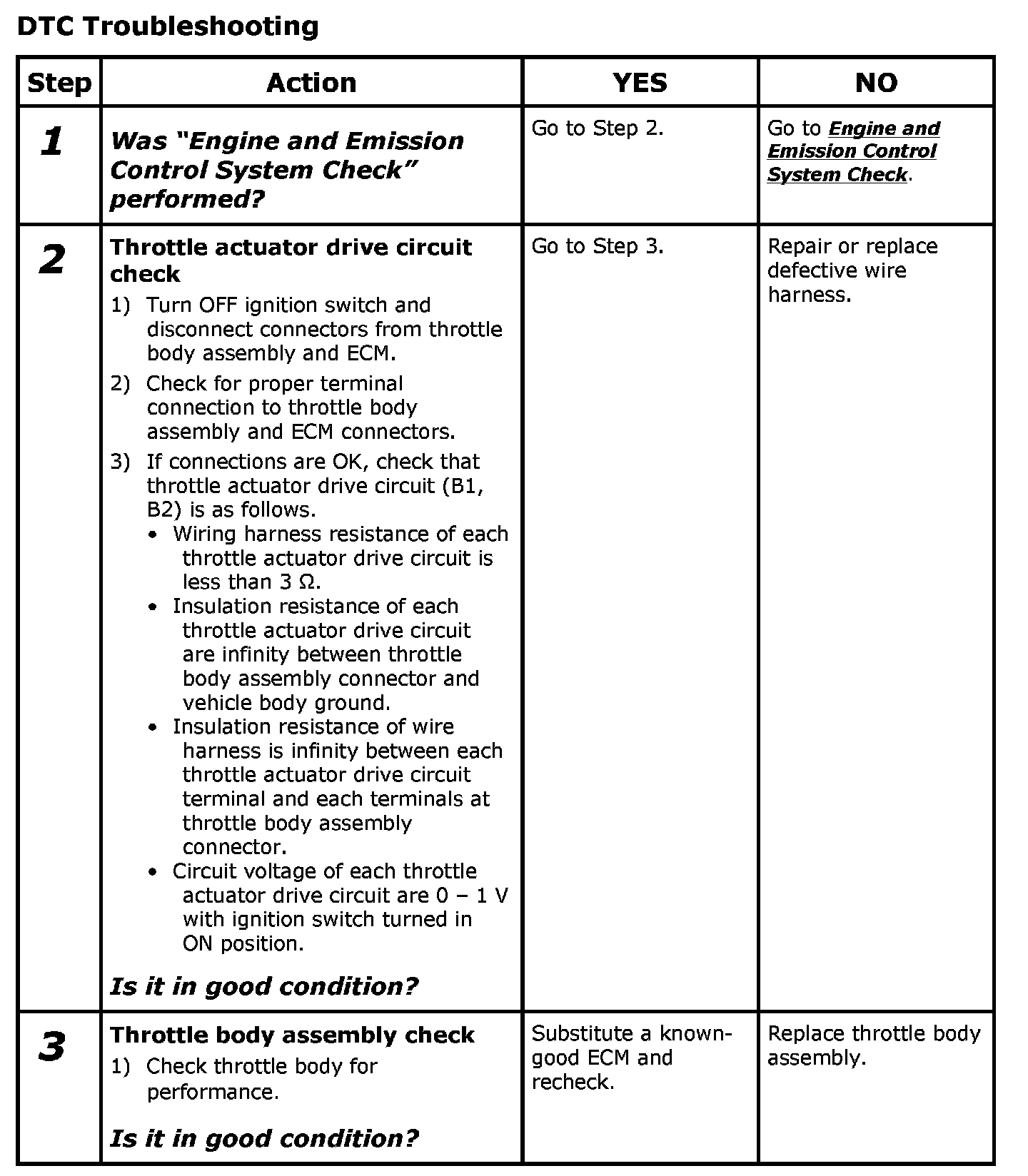

DTC Troubleshooting

Step 1-3:
