P0222

DTC P0222 / P0223

DTC Detecting Condition and Trouble Area

Wiring Diagram

Wiring Diagram:

DTC Confirmation Procedure
1. Turn ignition switch to ON position.
2. Keep accelerator pedal at fully depressed position for 2 sec.
3. Keep accelerator pedal at release position for 2 sec.
4. Repeat Step 2) through 3) for 3 times.

DTC Troubleshooting

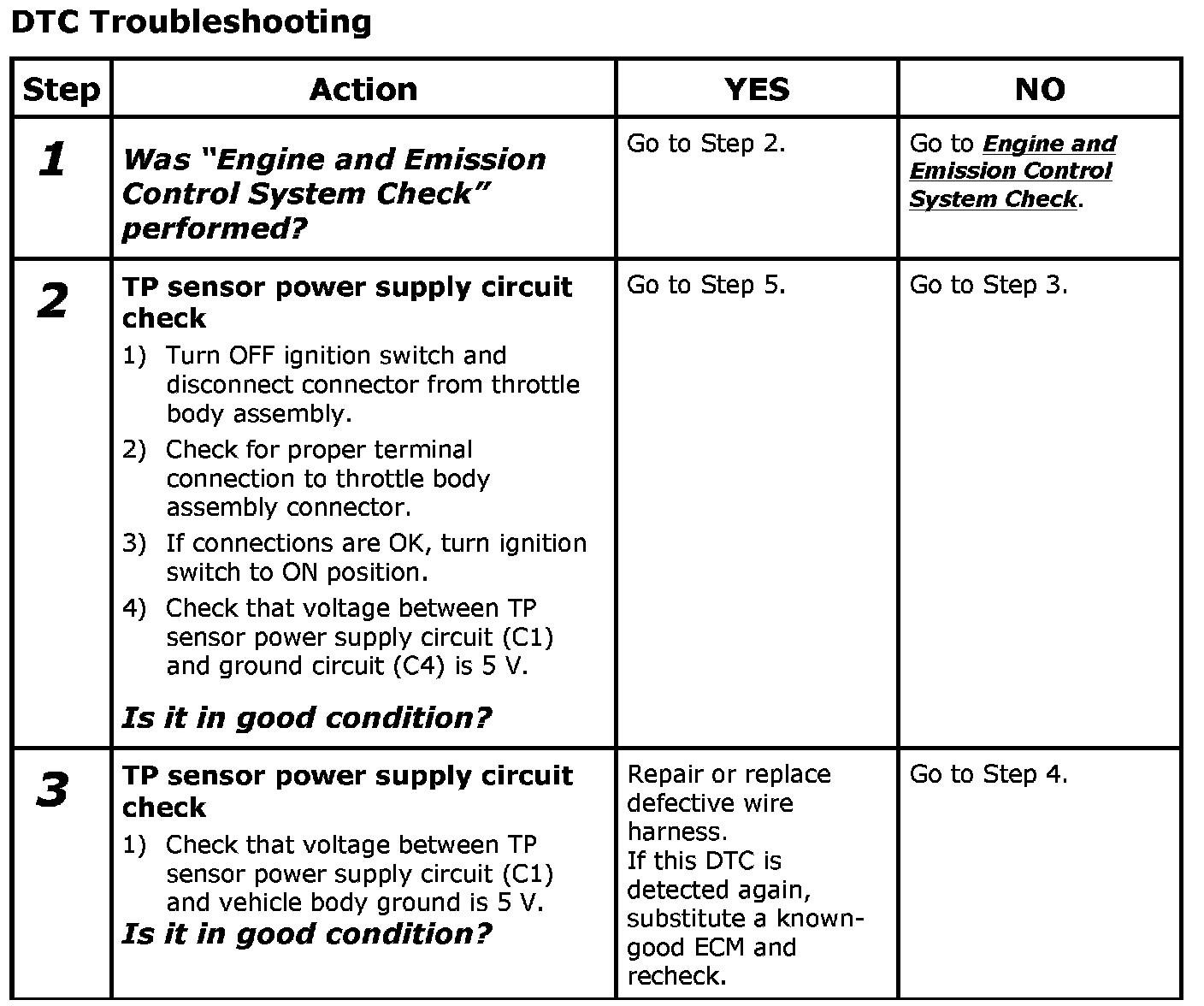

Step 1-3:

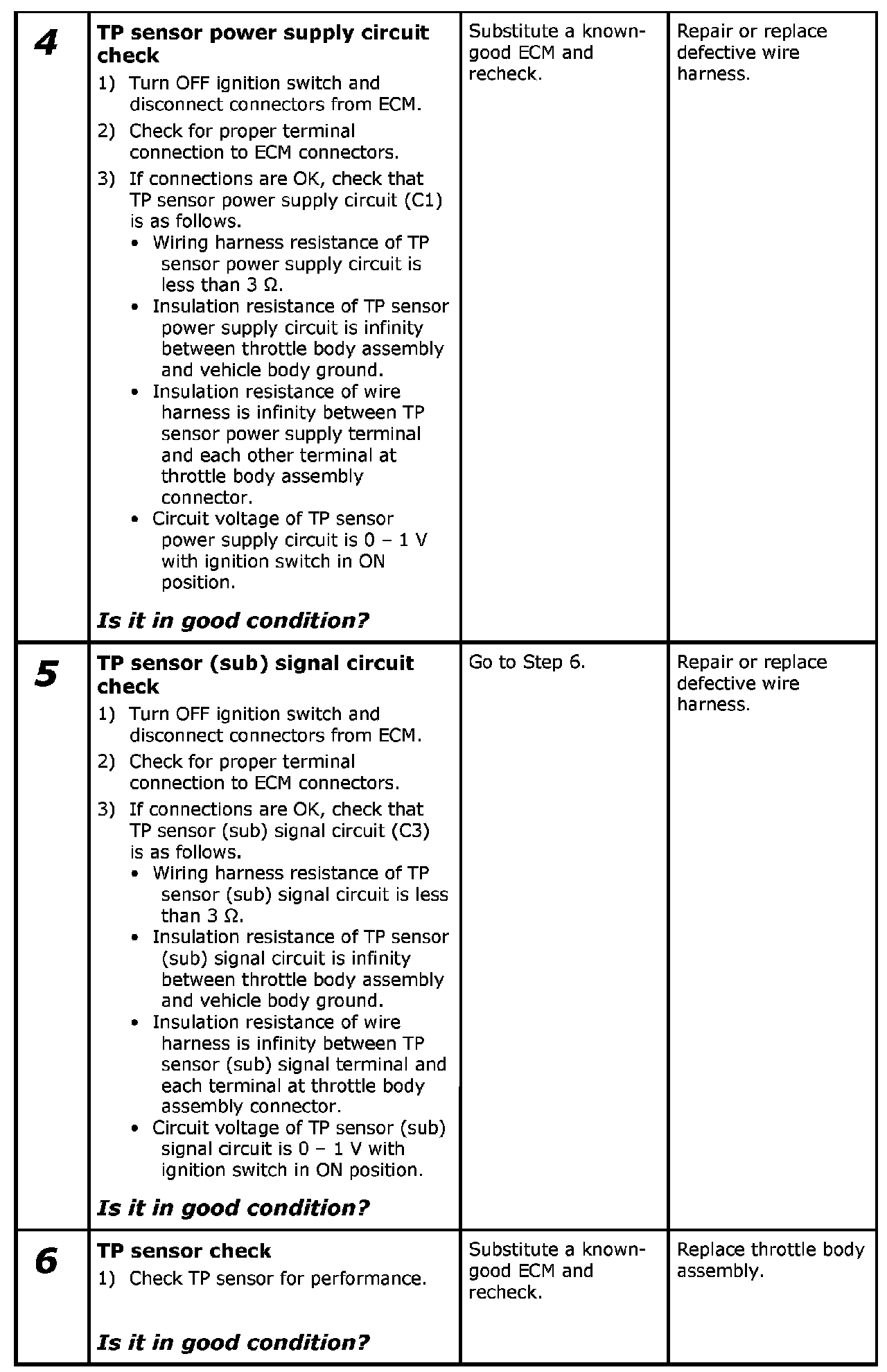

Step 4-6:
