P0032

DTC P0031 / P0032

DTC Detecting Condition and Trouble Area






Wiring Diagram

Wiring Diagram:






DTC Confirmation Procedure
1. Turn ignition switch to ON position for 10 sec.

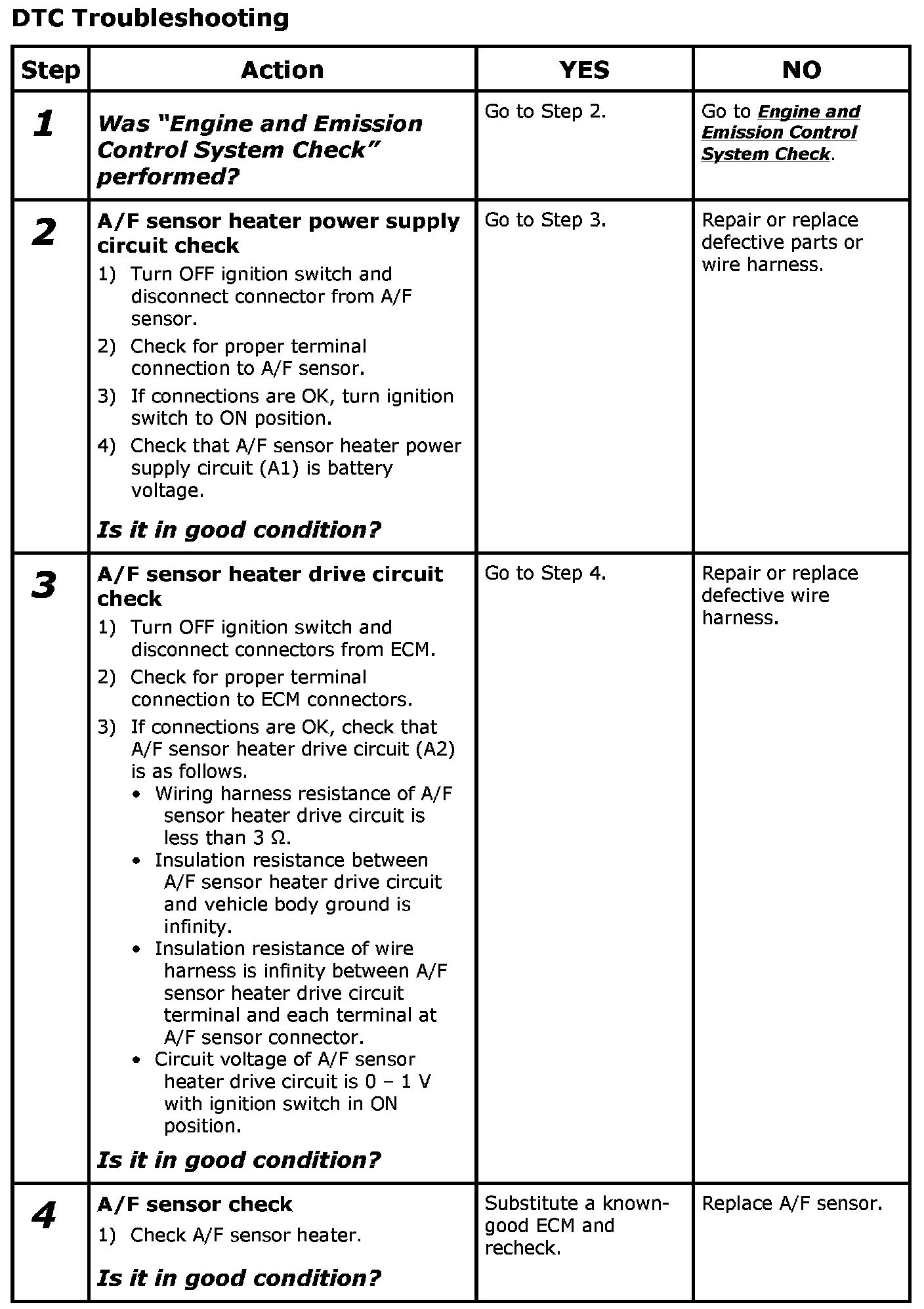

DTC Troubleshooting

Step 1-4:
