Fail-Safe Table


Fail-Safe Table

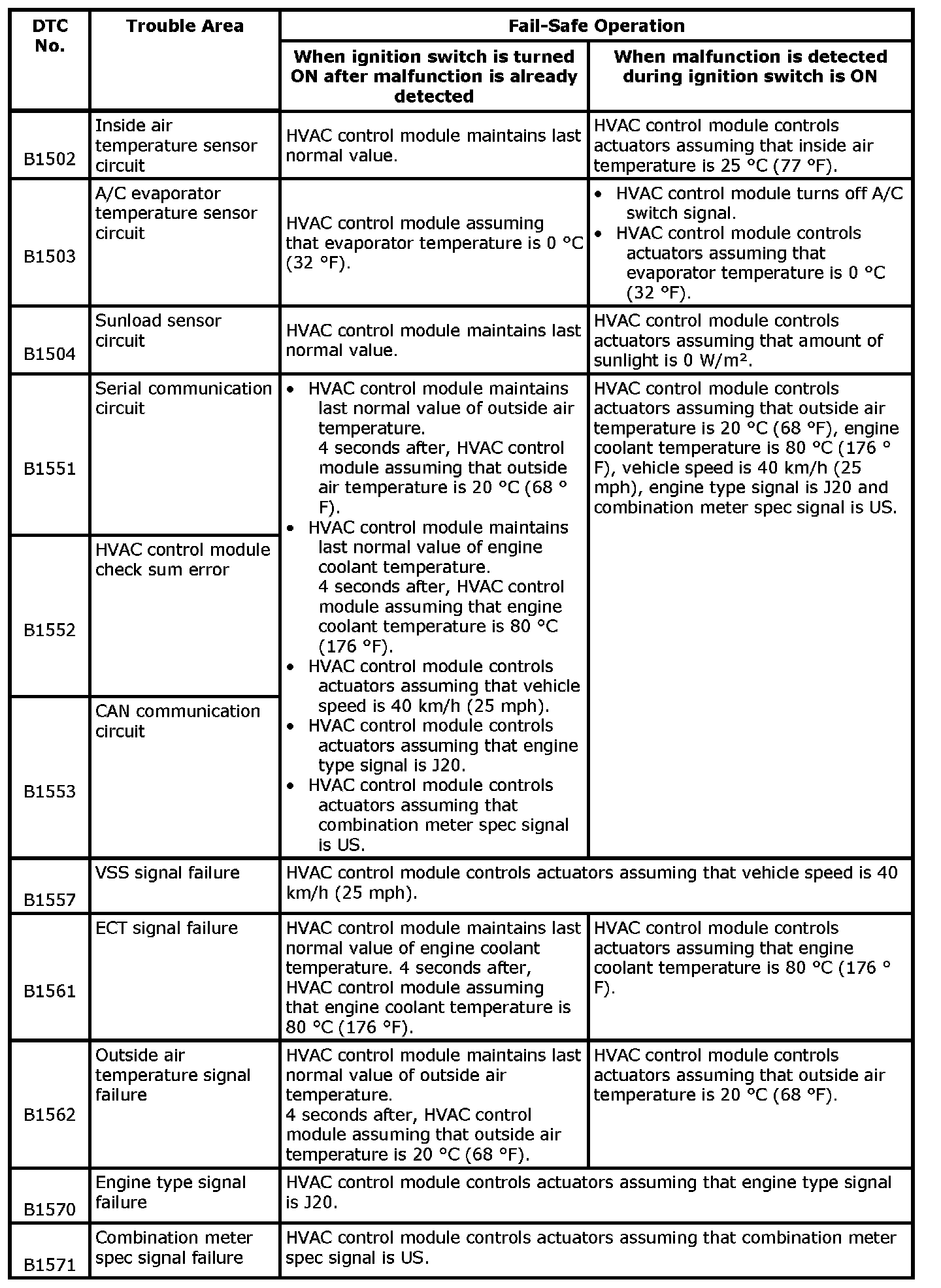

When any of the following malfunctions (DTCs) is detected, fail-safe mode is activated. However, when HVAC control module judges A/C system recovered, fail-safe mode is canceled.


B1502-B1571:
