Electronic Power Steering System (EPS)

DTC Table

CAUTION:
Be sure to perform the EPS System Check:Electric Type before starting troubleshooting corresponding to each DTC. EPS System Check

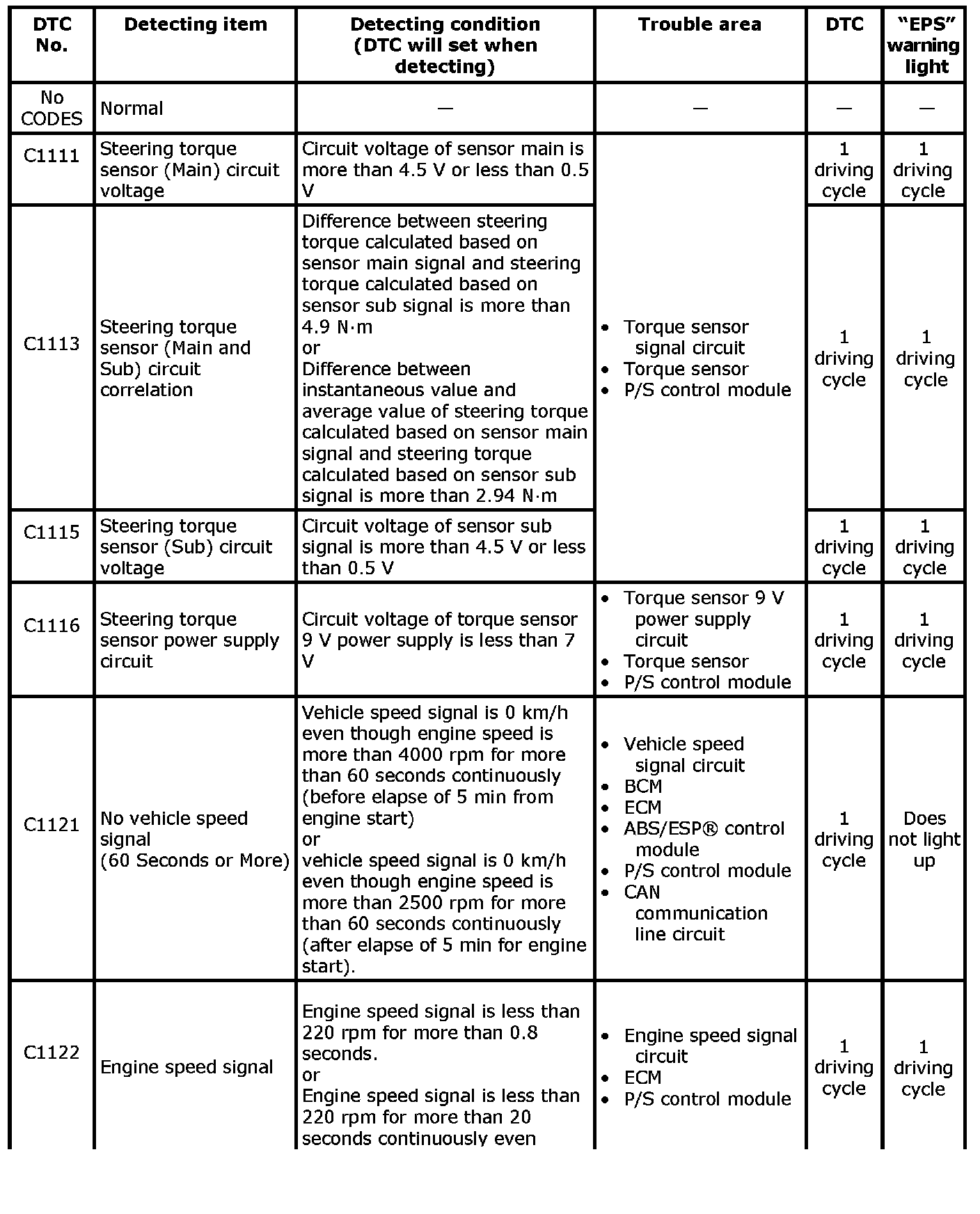

C1111-C1122:

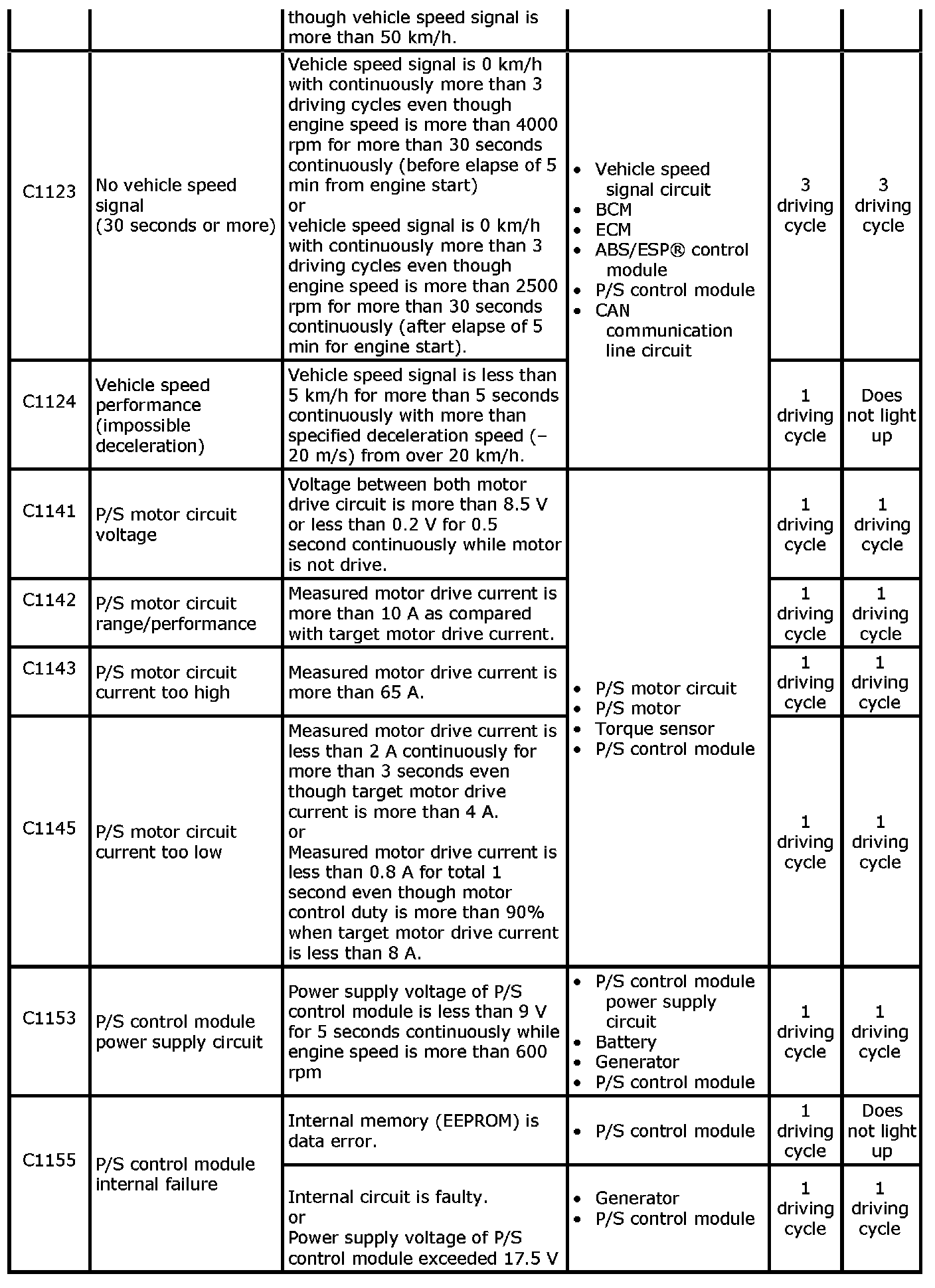

C1122-C1155:
