Fail-Safe Table

Fail-Safe Table
This function is provided by the safe mechanism that assures safe driveability even when the solenoid valve, sensor or its circuit fails. The following table shows the fail-safe function for each fail condition of sensor, solenoid valve or its circuit.

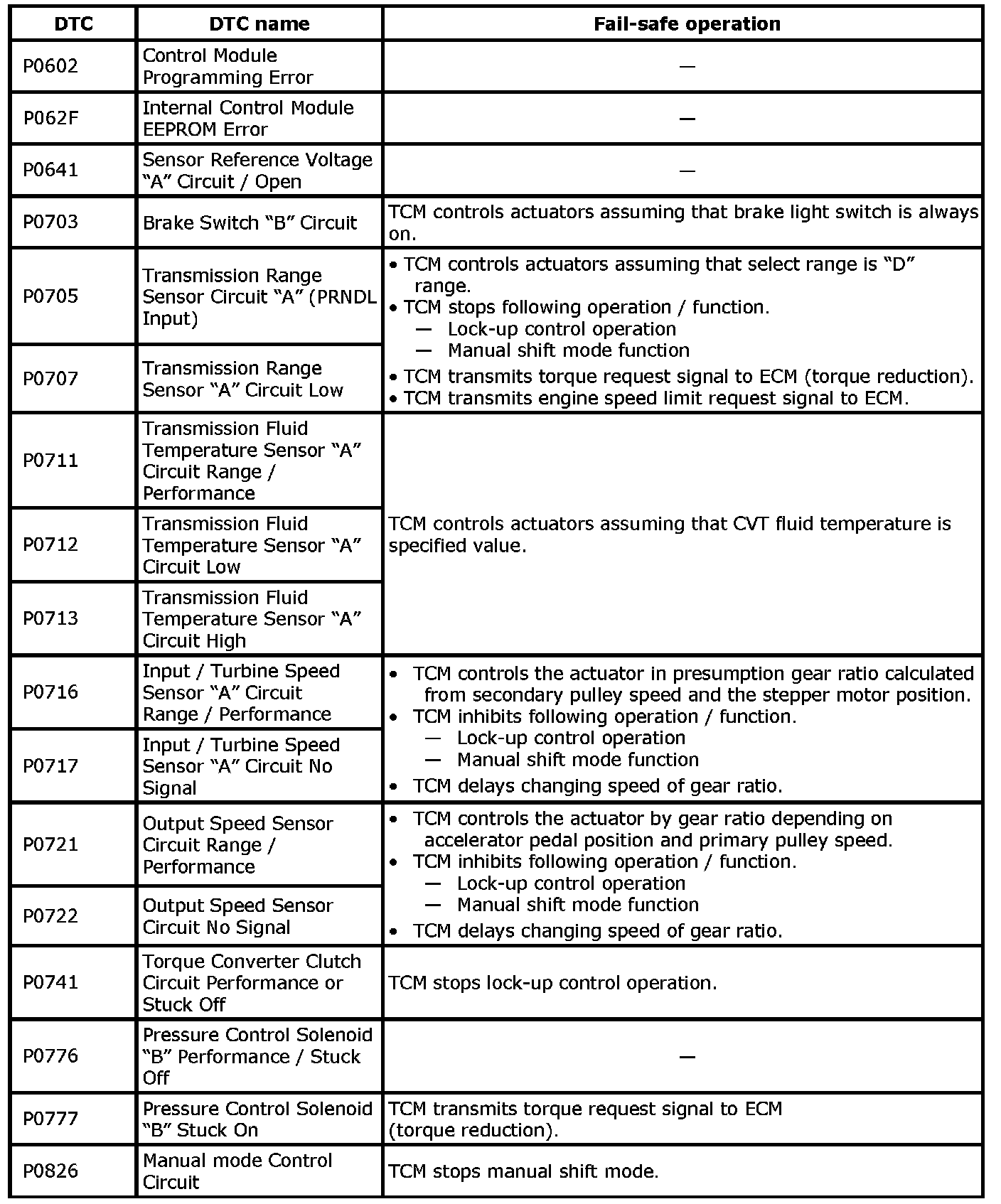

P0602-P0826:

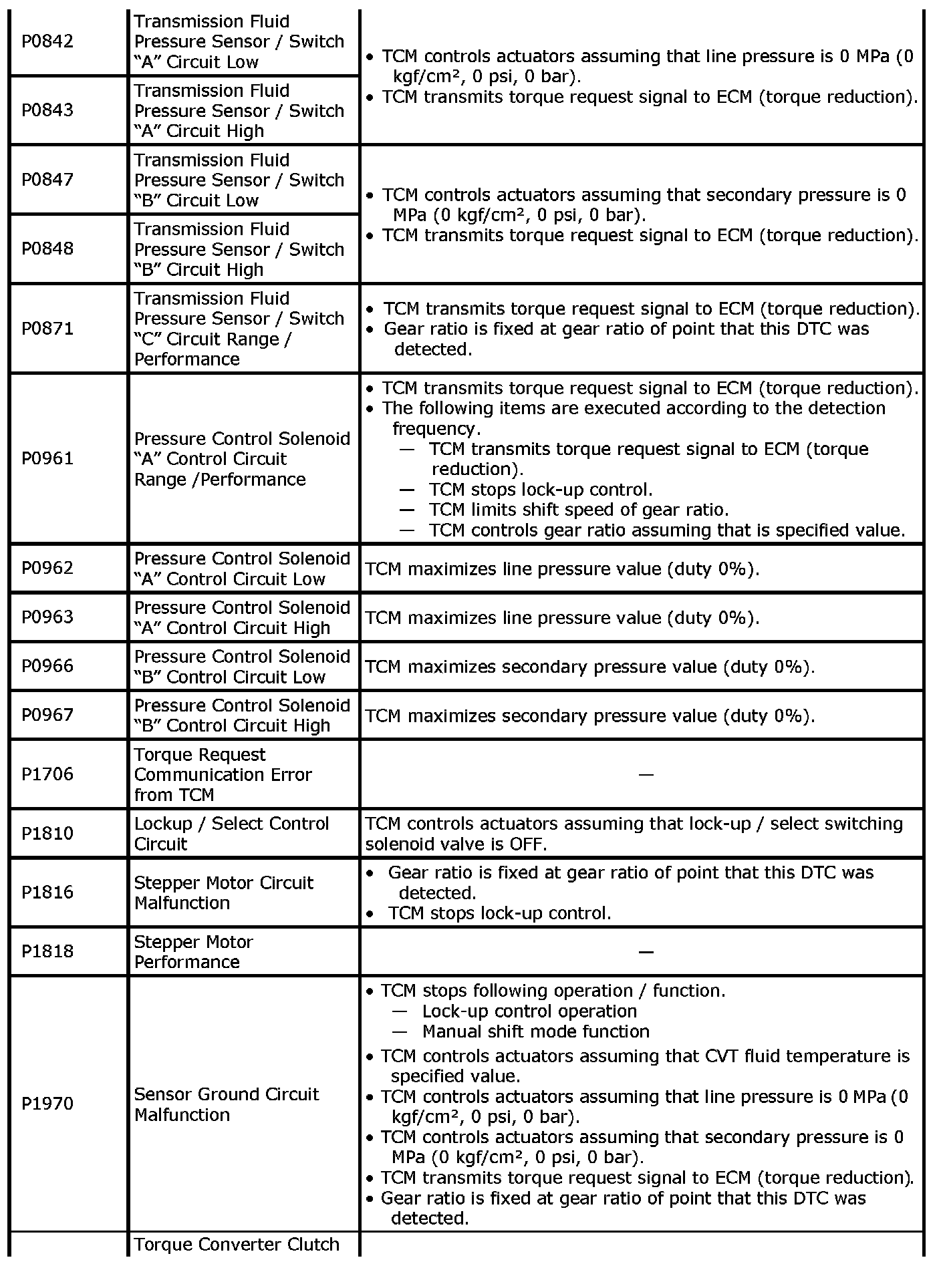

P0842-P1970:




P2763-P2764 / U0073-U0140:
