ABS

DTC Table

NOTE:
Be sure to perform ABS Check before starting diagnosis.

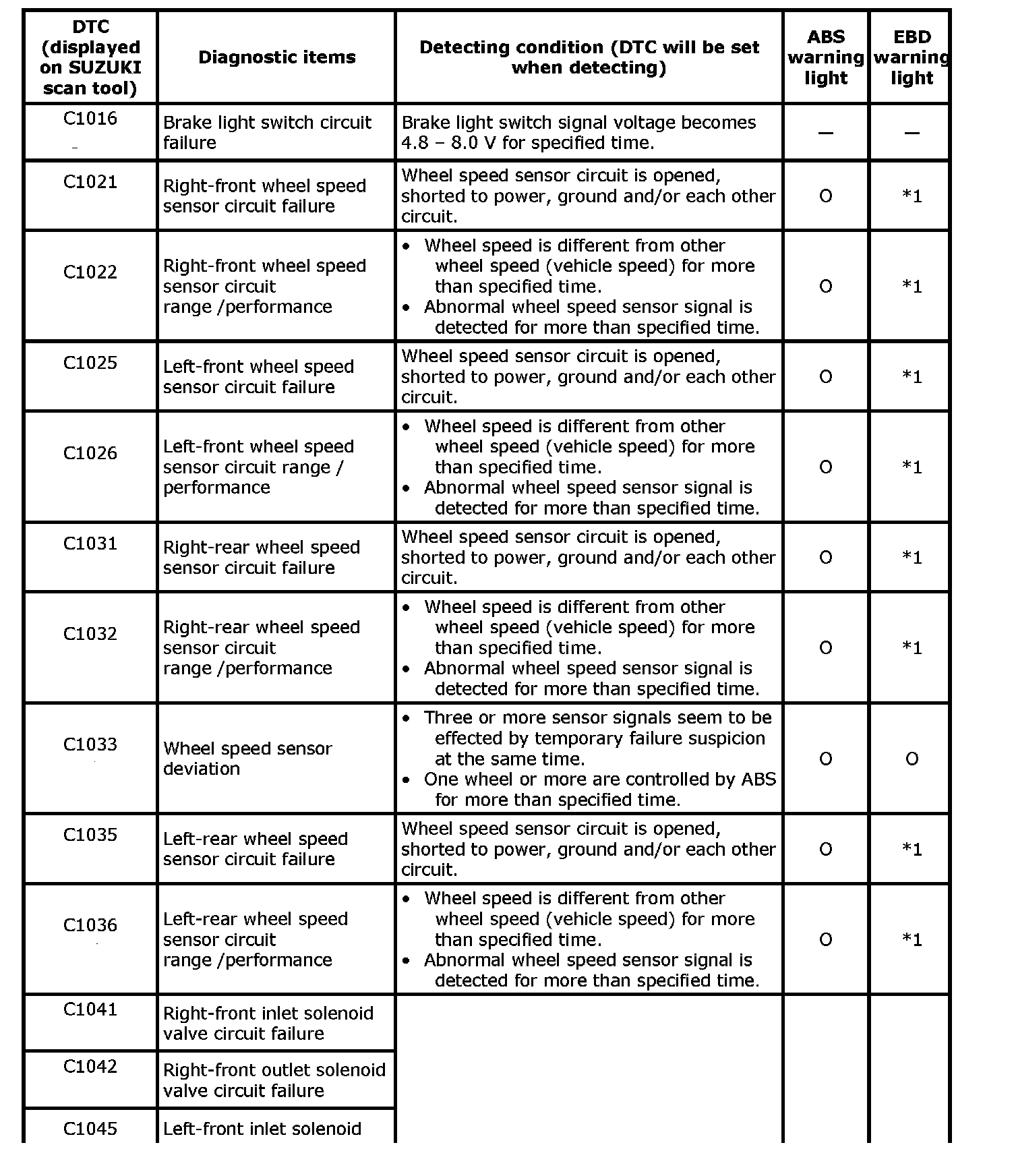

C1016-C1045:

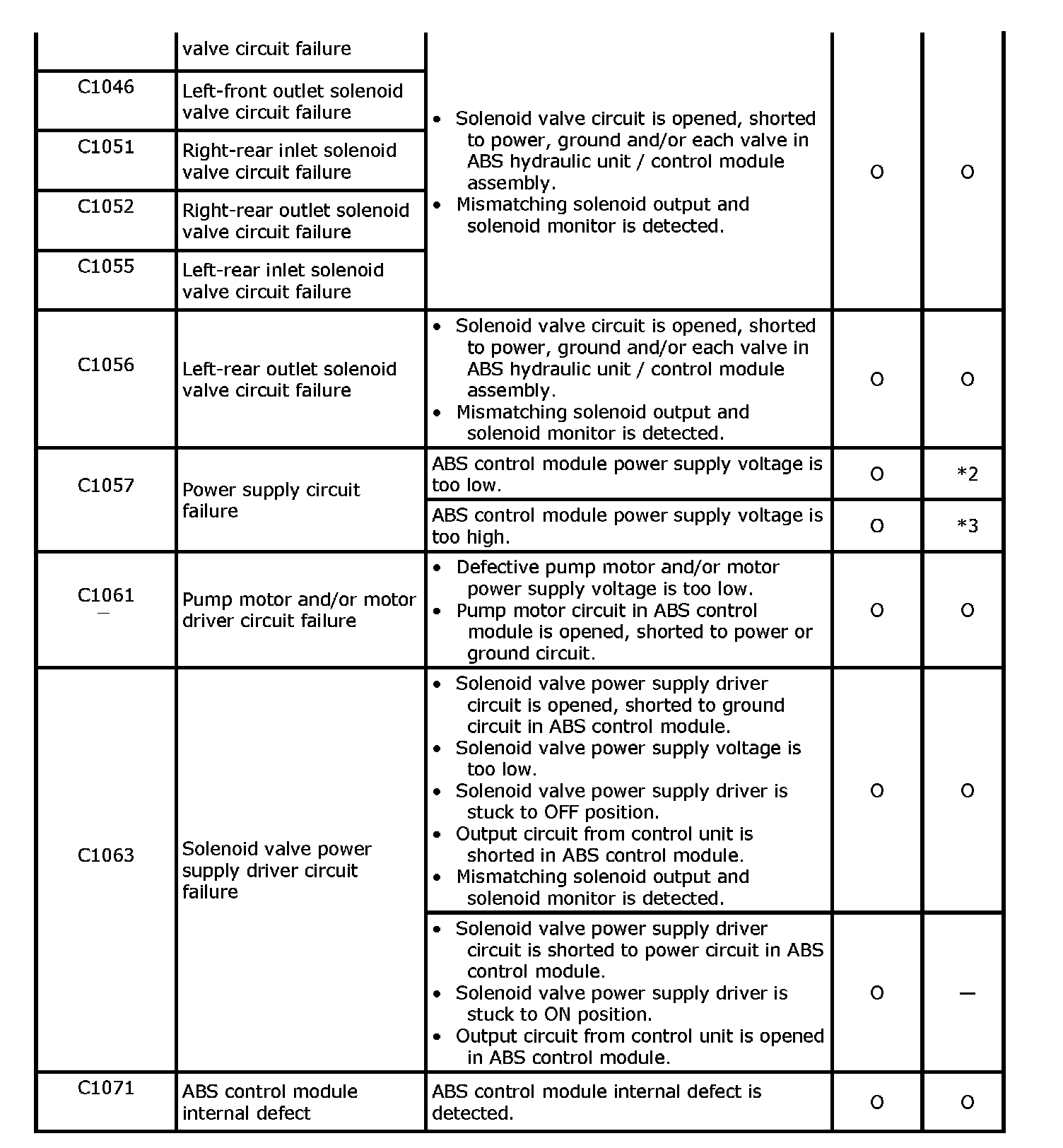

C1045-C1071:

NOTE:
^ "0" in ABS warning light and EBD warning light column of the above table means warning light is lit when DTC is detected.
^ *1: If two or more wheel speed sensor are defective, EBD warning light (brake warning light) is lit.
^ *2: If ABS control module power supply voltage is lower about 8 V, EBD warning light (brake warning light) is lit.
^ *3: If ABS control module power supply voltage is higher than 18 V, EBD warning light (brake warning light) is lit.
