Electronic Stability Program (ESP)
DTC C1021 / C1022 / C1025 / C1026 / C1031 / C1032 / C1035 / C1036: Wheel Speed Sensor Circuit Failure / Range / Performance(DTC C1021 / C1025 / C1031 / C1035: Right-Front / Left-Front / Right-Rear / Left-Rear Wheel Speed Sensor Circuit Failure)
(DTC C1022 / C1026 / C1032 / C1036: Right-Front / Left-Front / Right-Rear / Left-Rear Wheel Speed Sensor Circuit Range / Performance)

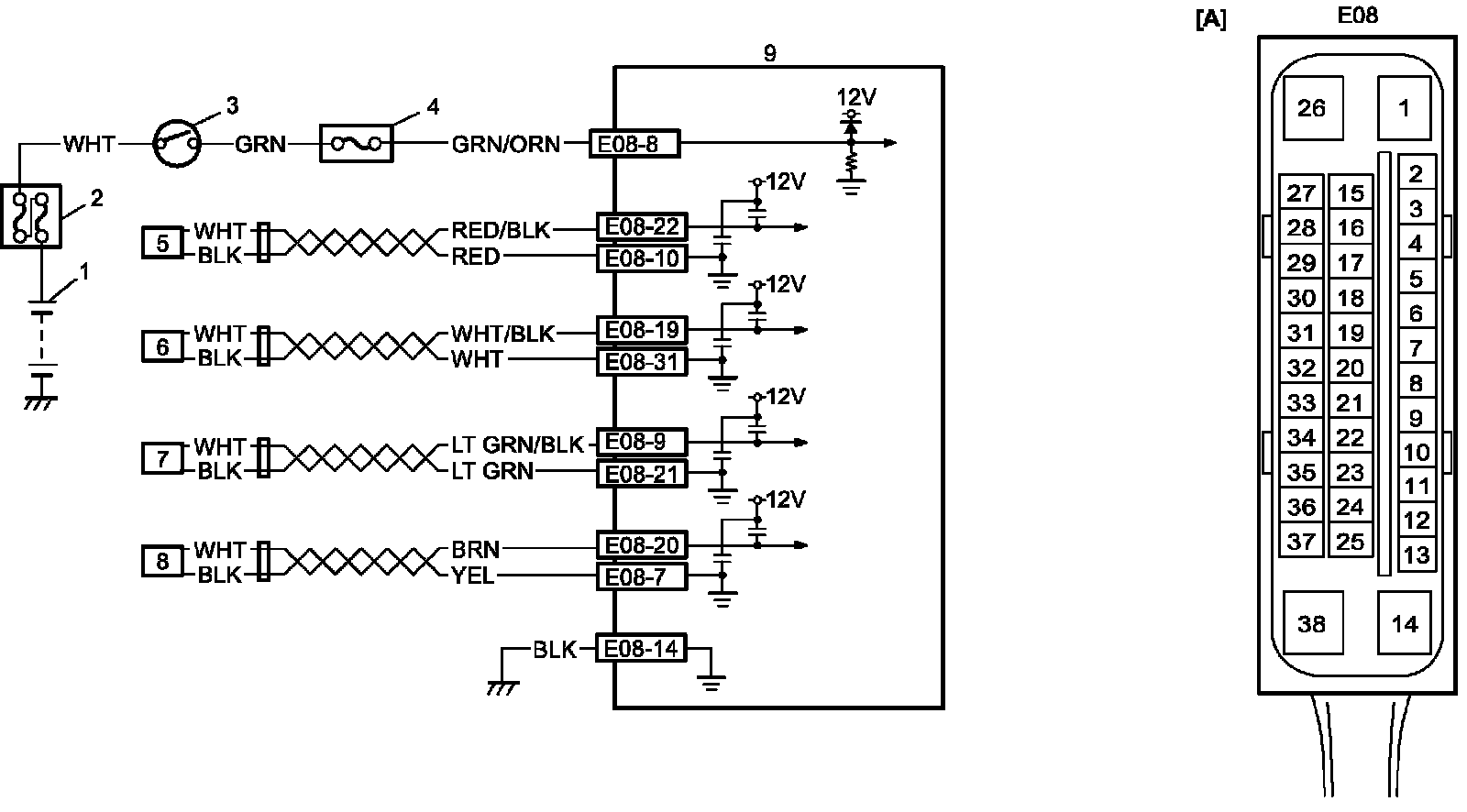

Wiring Diagram
DTC Detecting Condition and Trouble Area
NOTE:
When the vehicle was operated in any of the following ways, one of these DTCs may be set even when the sensor is in good condition. If such possibility is suspected, clear DTC once referring to DTC Clearance DTC Clearance and after performing the driving test as described in Step 2 of Electronic Stability Program Check Electronic Stability Program Check check whether or not any abnormality exists.
^ The vehicle was driven with parking brake pulled.
^ Wheel spin occurred while driving.
^ Wheel(s) was turned while the vehicle was jacked up.
^ The vehicle was stuck.

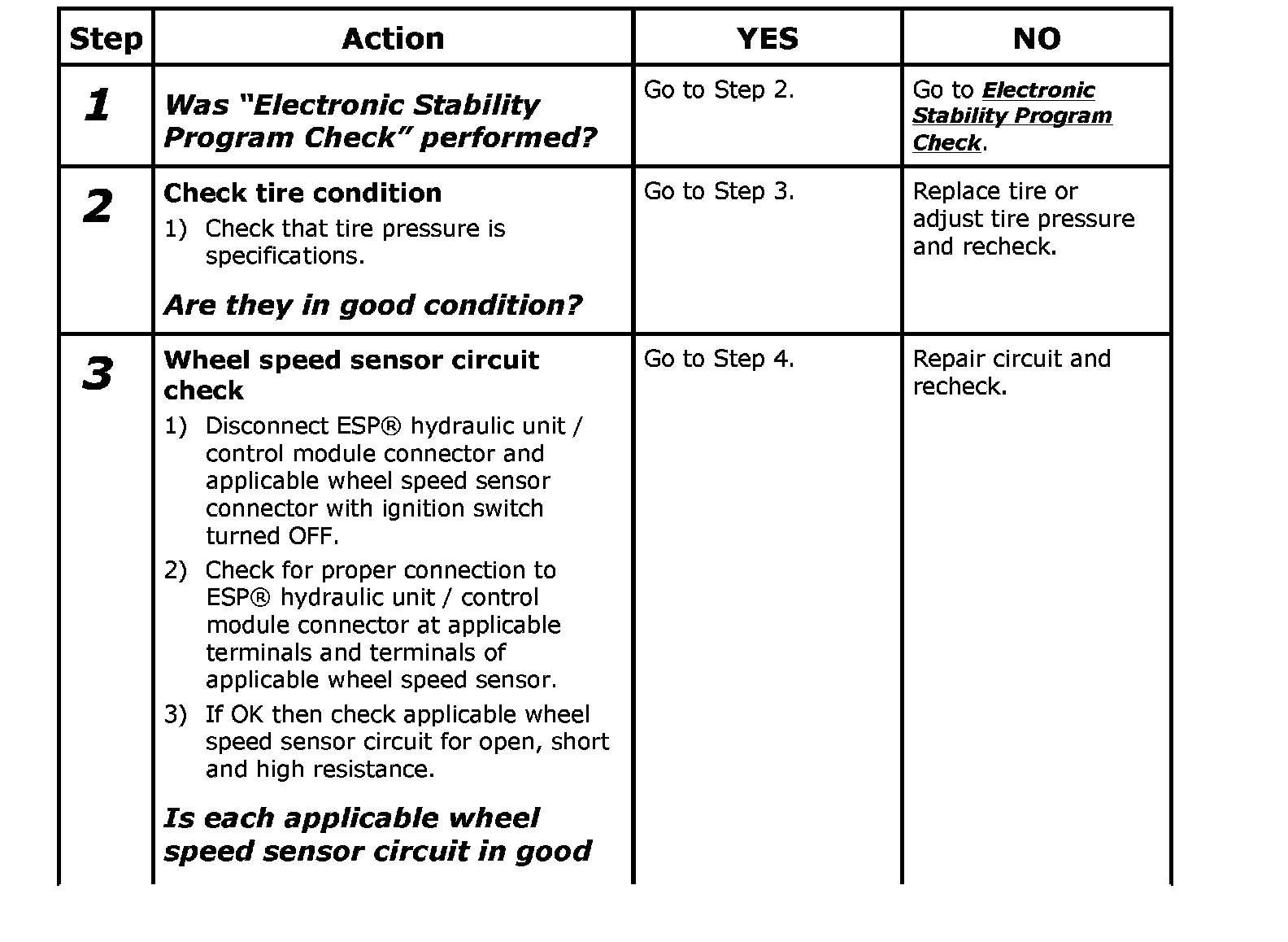

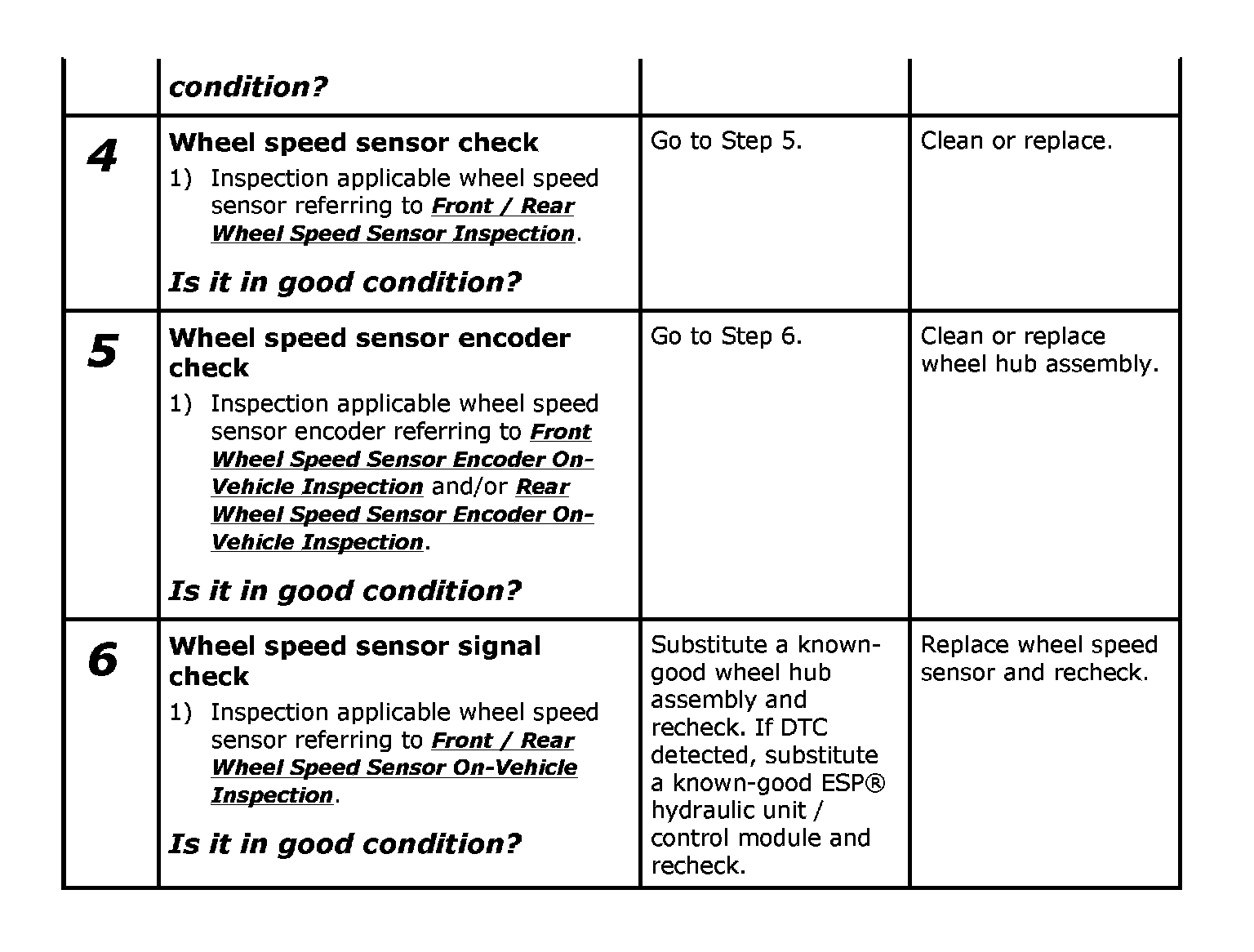

DTC Troubleshooting
