Circuit Diagram

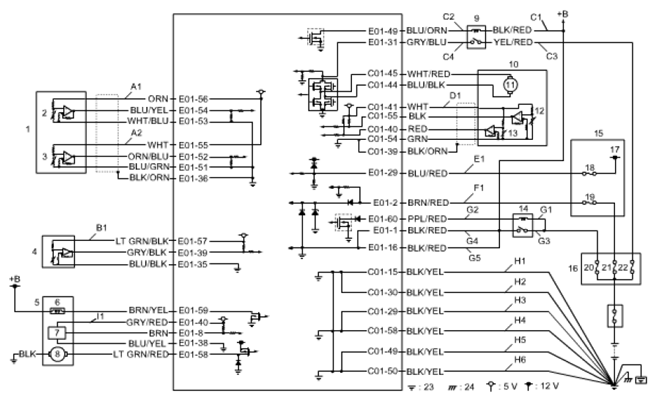

Fig 1: APP Sensor (Main) Power Supply Circuit Diagram
G06526463Courtesy of SUZUKI OF AMERICA CORP.

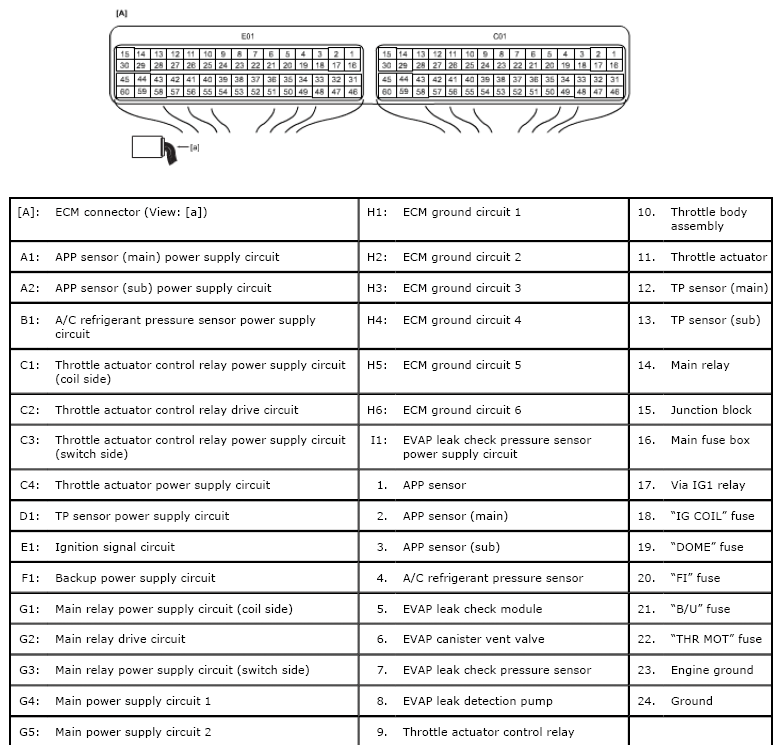

Fig 2: Identifying ECM Connector Terminals
G06526464Courtesy of SUZUKI OF AMERICA CORP.
