Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

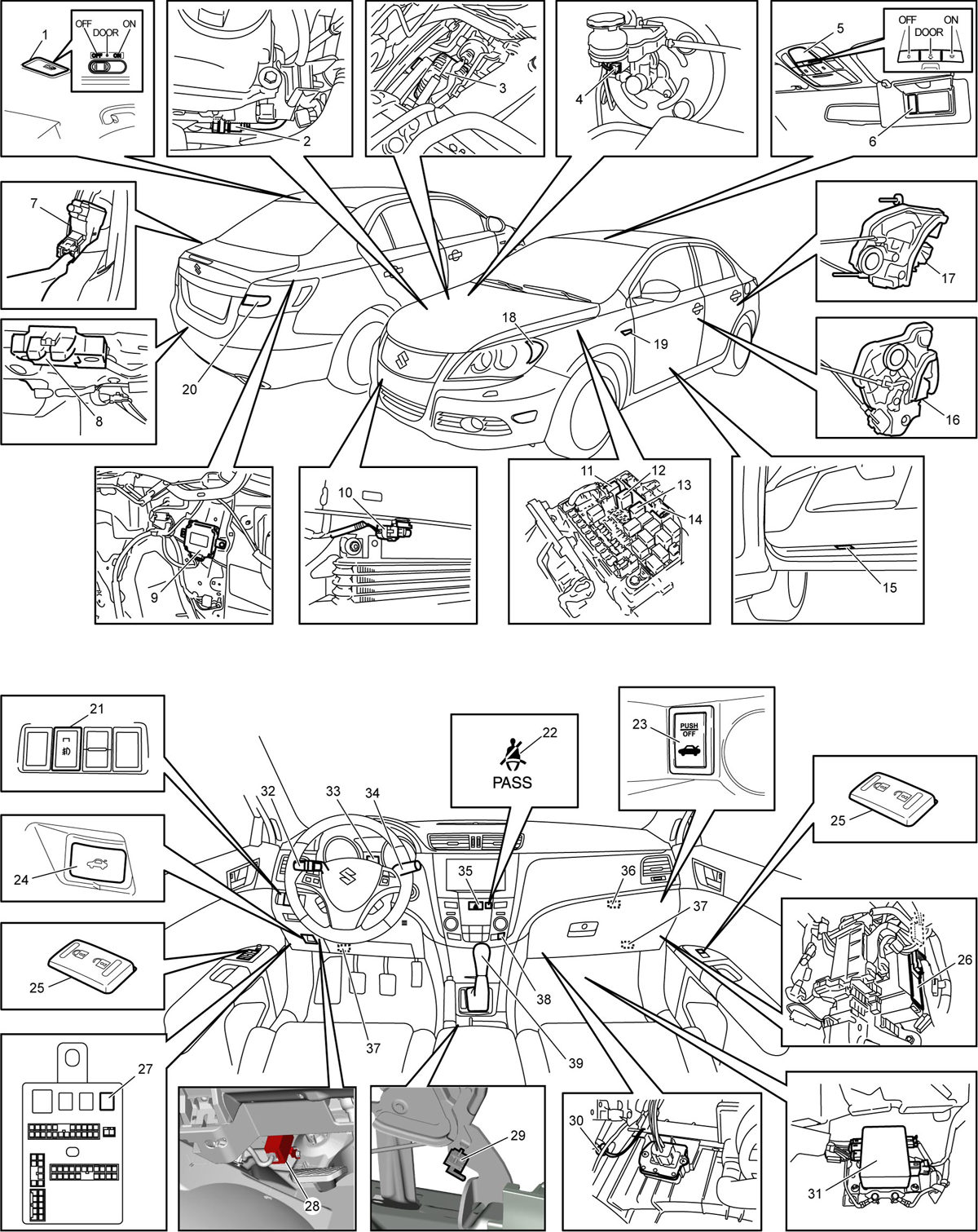

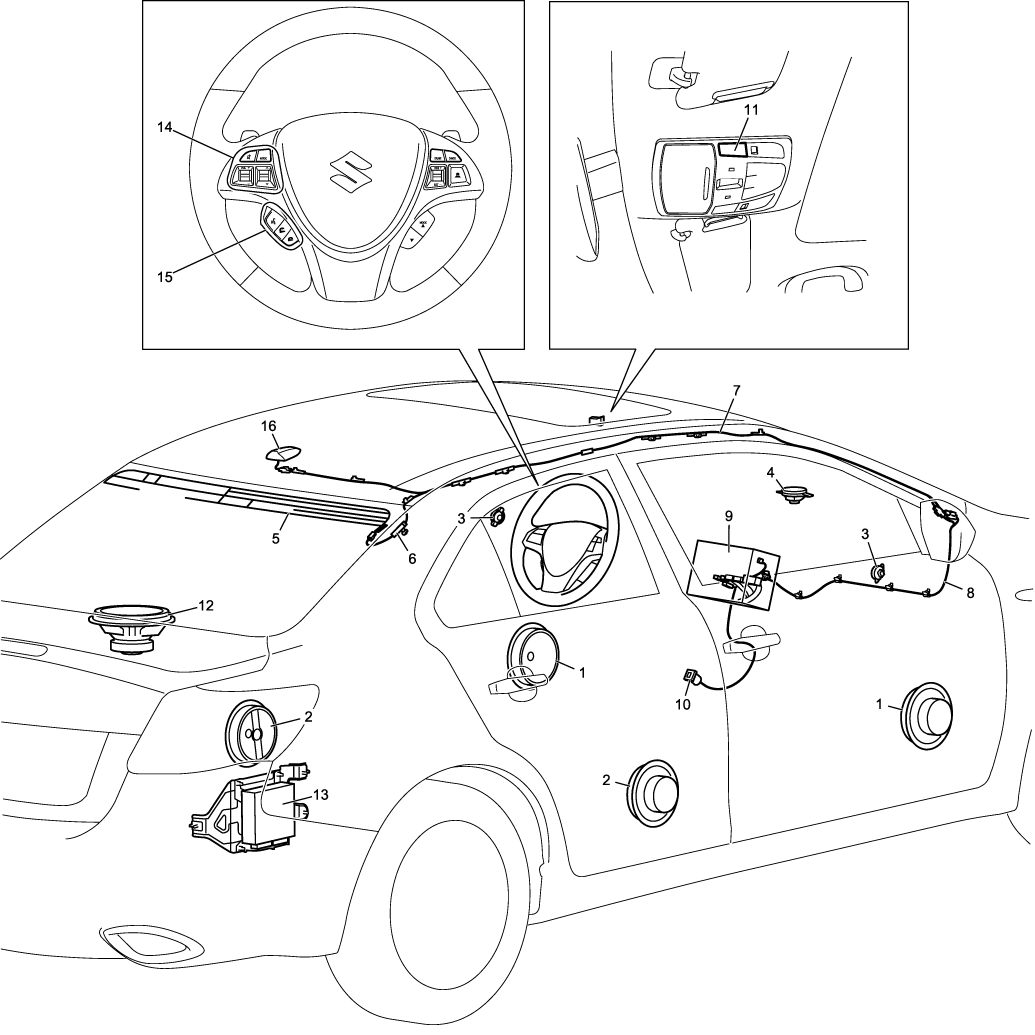

| Audio Amplifier (13) | Right side of trunk. See Figure. |
| BCM (12) | Right side of dash. See Figure. |

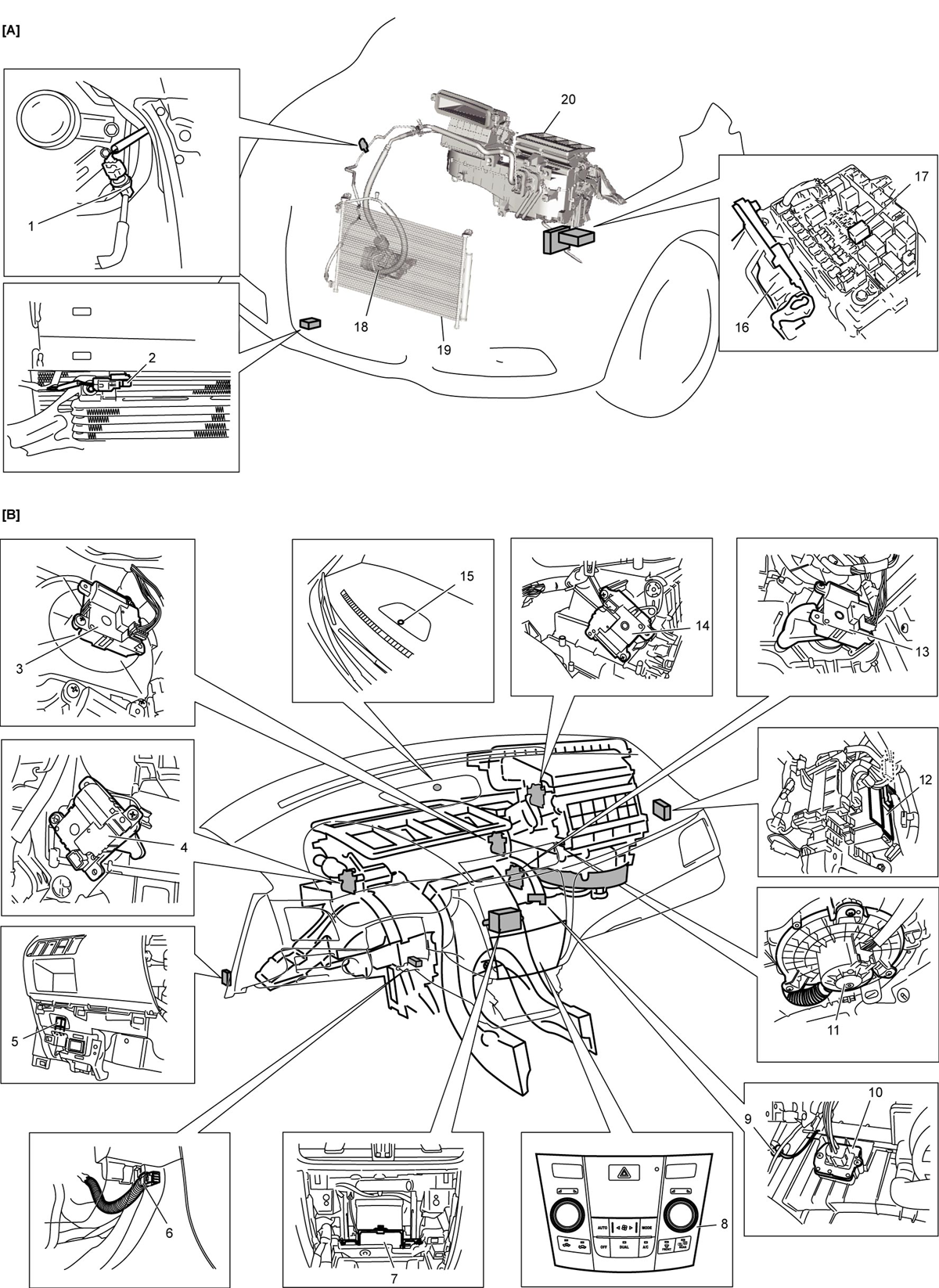

| Blower Motor Controller (10) | Right center of dash. See Figure. |
| DRL Control Module (28) | Left side of dash. See Figure. |
| ECM ([4]) | Left side of engine compartment. See Figure. |

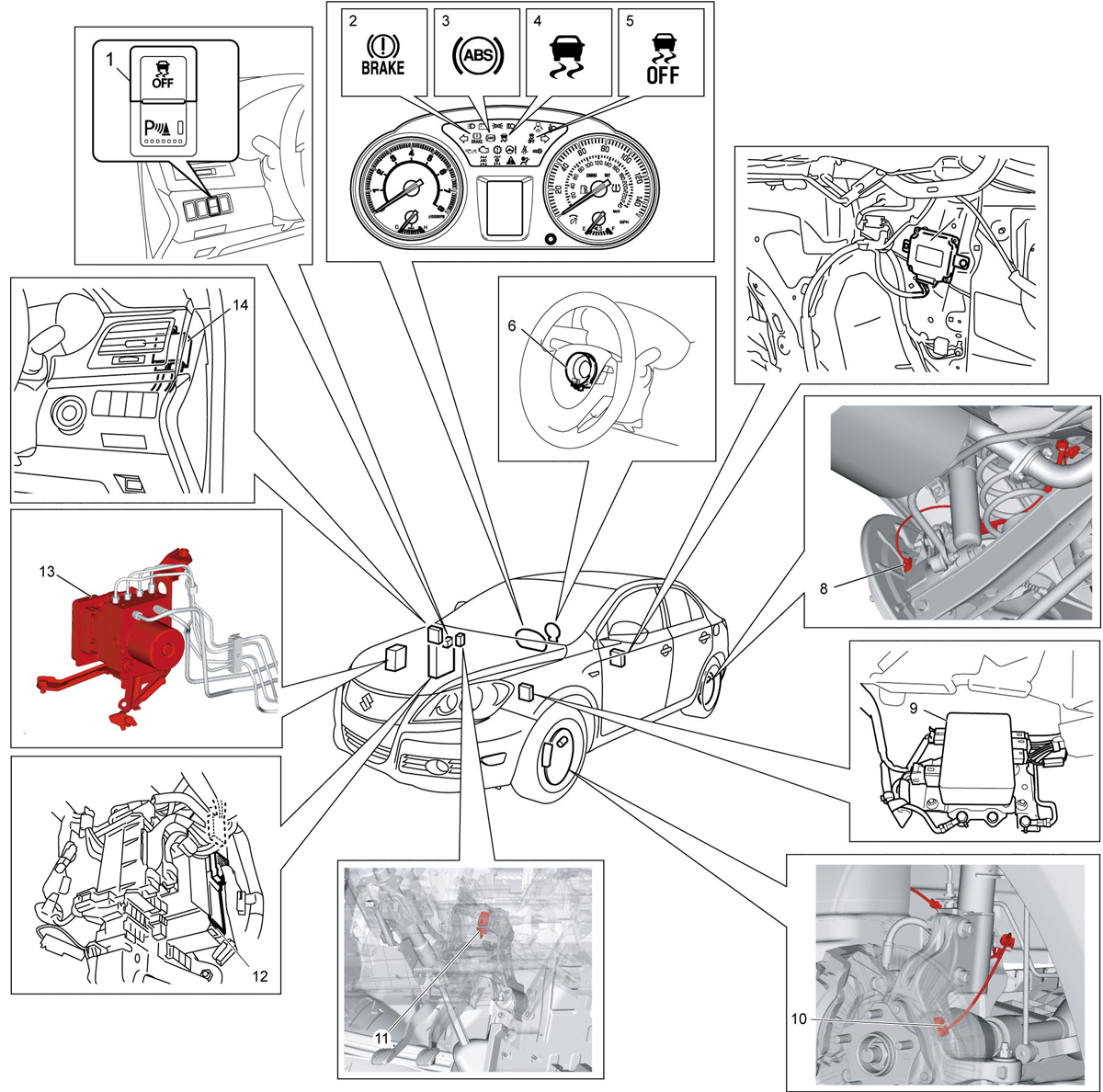

| ESP® Hydraulic Unit/Control Module (13) | Right side of engine compartment. See Figure. |
| EVAP Leak Check Module ([8]) | Rear undercarriage. See Figure. |
| HVAC Control Module (7) | Center of dash. See Figure. |
| Keyless Start Control Module (5) | Left side of engine compartment. See Figure. |
| OCM (15) | Right front seat. See Figure. |

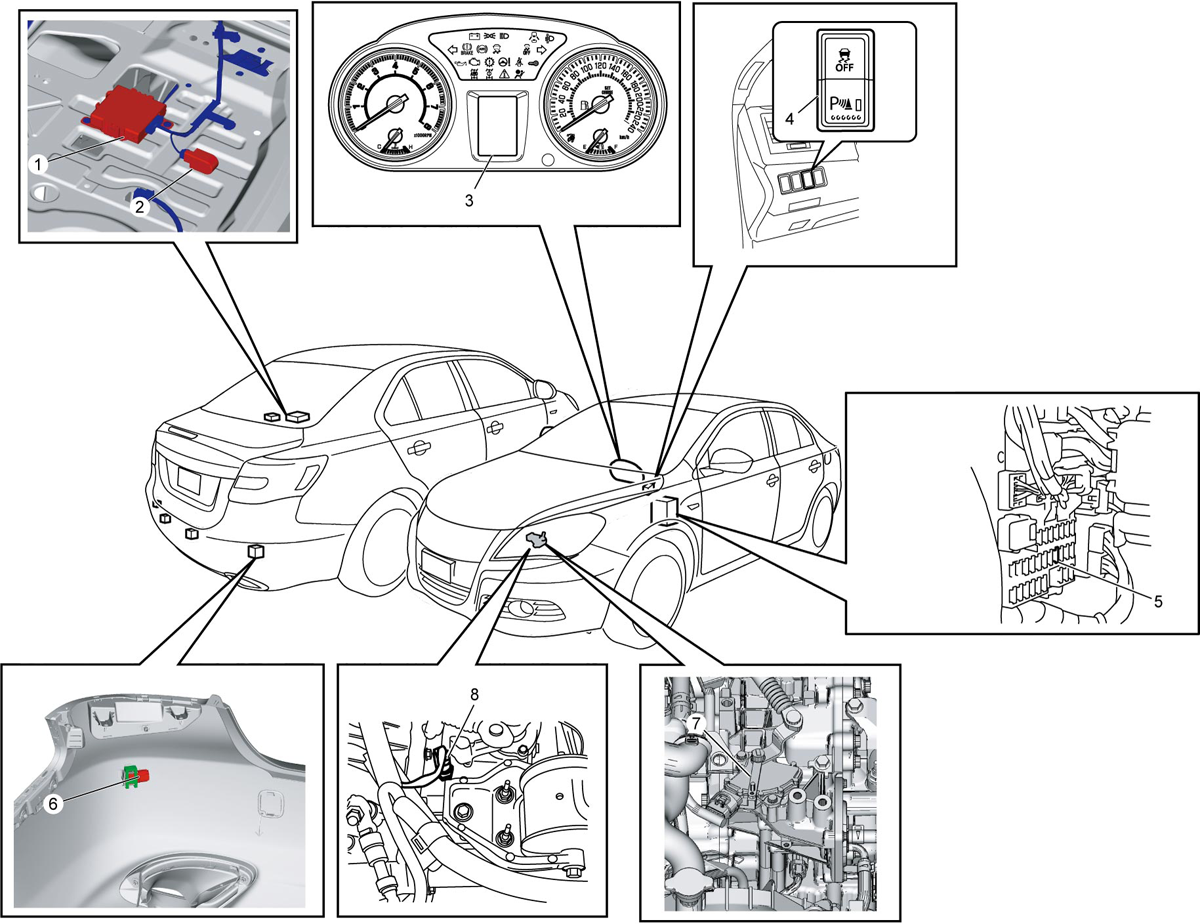

| Parking Sensor System Control Module (1) | Rear package tray. See Figure. |
| P/S Control Module (3) | Right side of engine compartment. See Figure. |
| SDM (13) | Center floor console. See Figure. |
| Tail Light Relay (27) | Left side of dash. See Figure. |
| TCM (14) | Right side of dash. See Figure. |
| 4WD Control Module (9) | Right side of trunk. See Figure. |
