P/S Control Module Power Supply and Ground Circuit Check
P/S Control Module Power Supply and Ground Circuit Check
Circuit Diagram

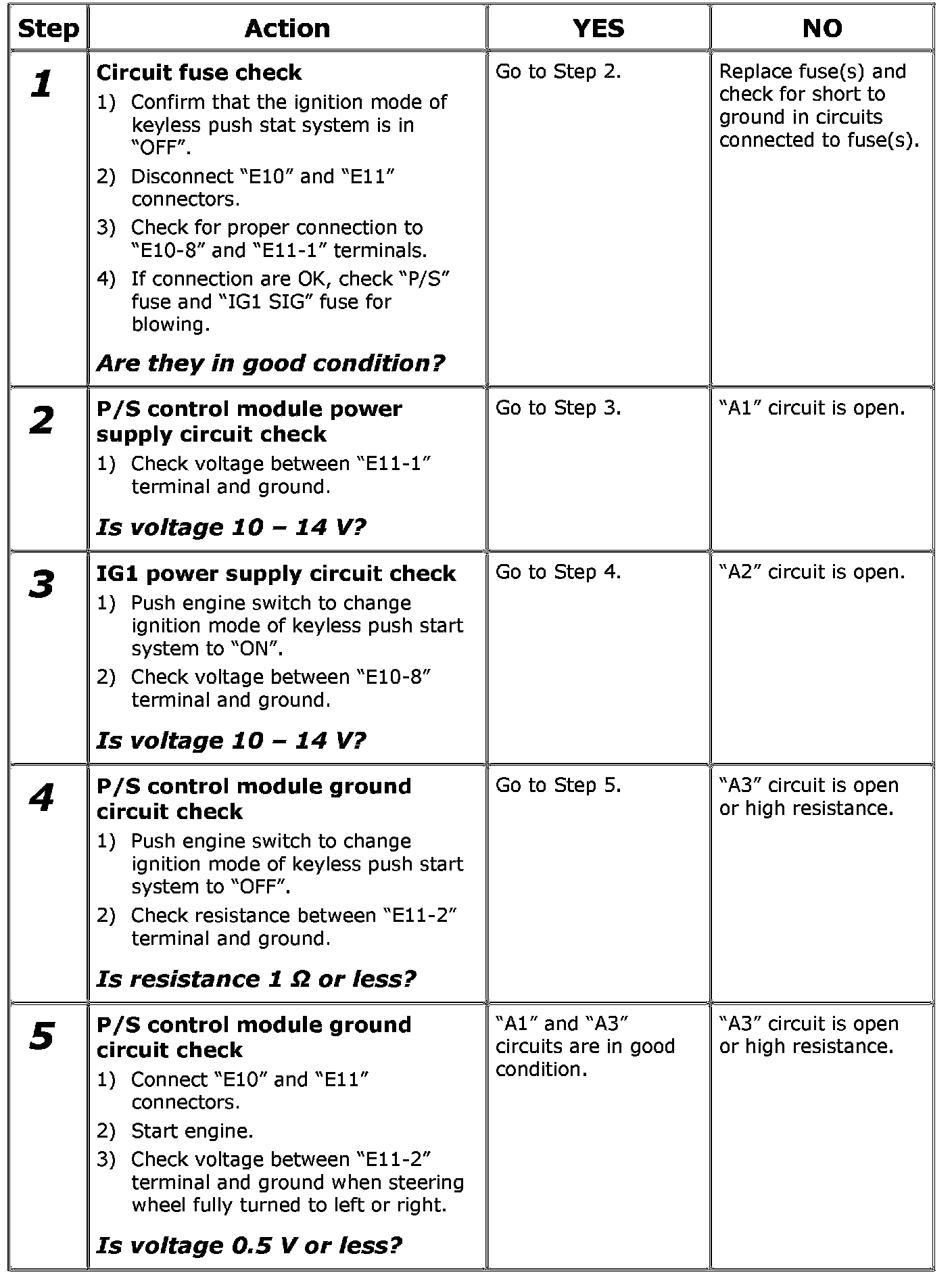

DTC Troubleshooting
Step 1-5:
