Oil Pan, Engine

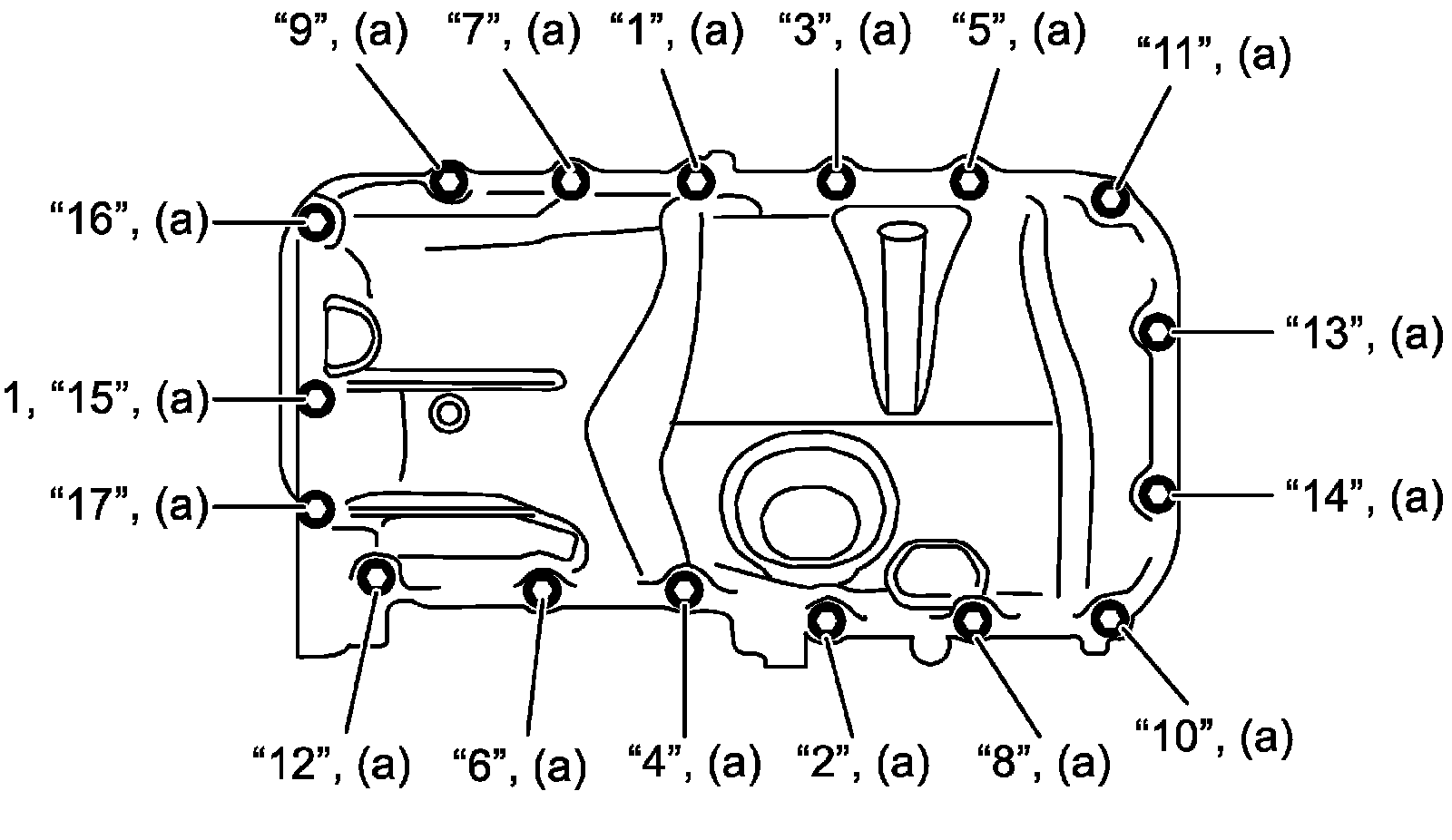

Oil Pan





Tighten bolts 15 N.m (1.5 kgf-m, 11.0 lbf-ft)
Retighten bolts 25 N.m (2.5 kgf-m, 18.5 lbf-ft)
