Number One Cylinder: Locations

Identification of Cylinder

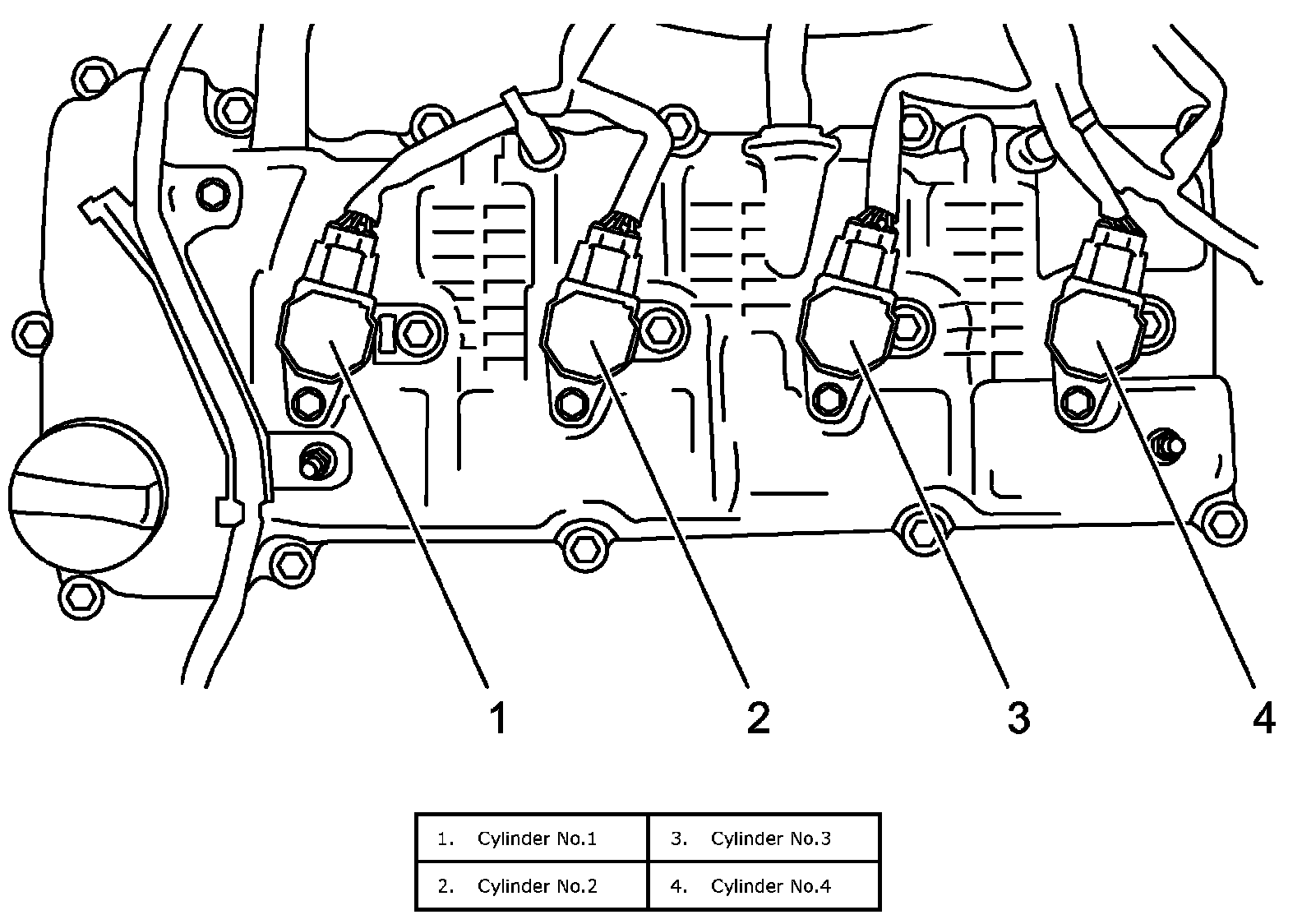

J24B engine has four cylinders and each cylinder is identified by number (cylinder No.1 through No.4) as shown in figure.
