Engine Basic Inspection
Engine Basic Inspection
Perform troubleshooting referring to the following points when no DTC is detected in ECM and no abnormality is found in Visual Inspection.
Visual Inspection

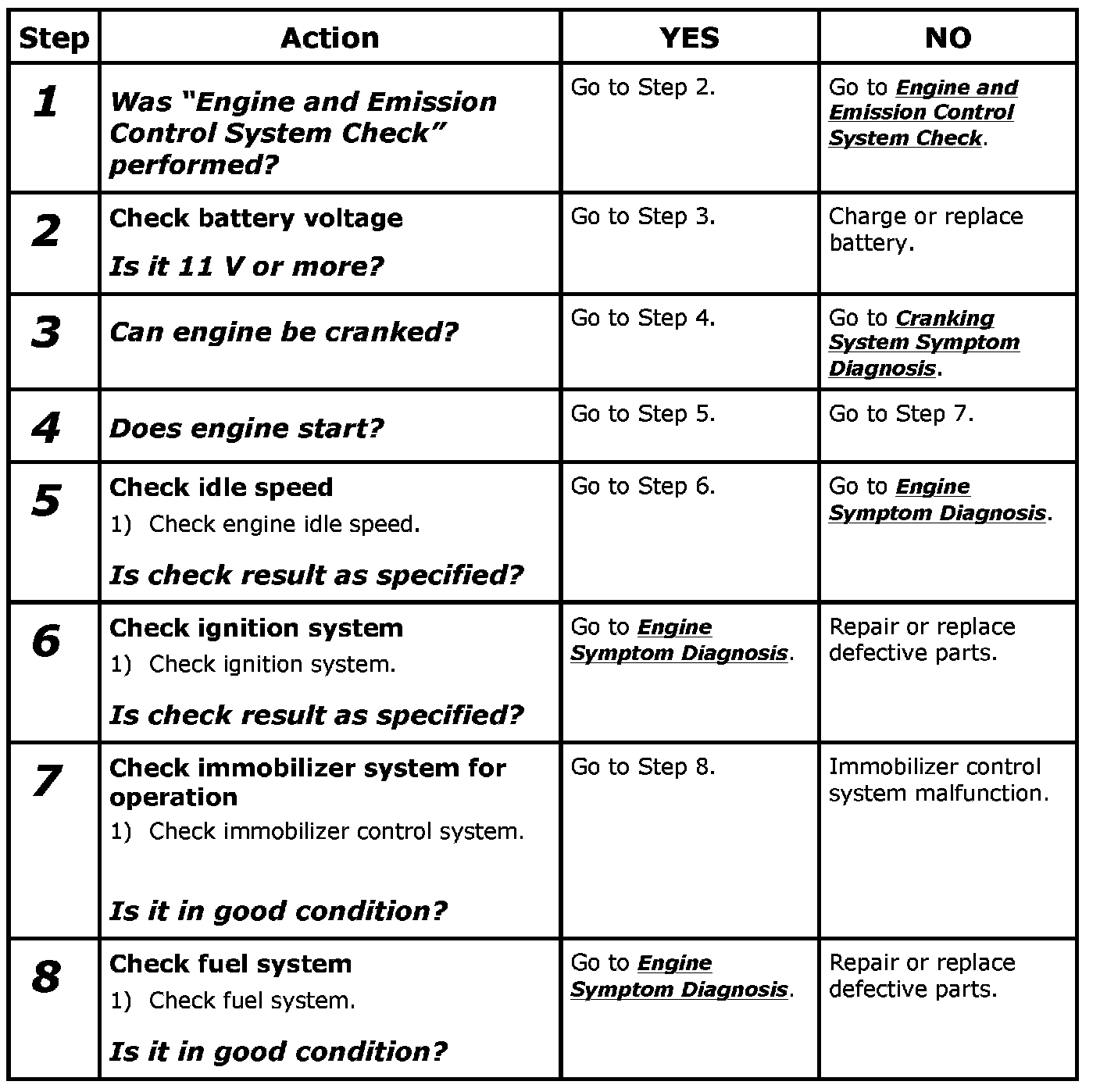

Step 1-8:
