Marker Lamp: Service and Repair

Front Side Marker Light Removal and Installation

Removal
1. Disconnect negative (-) cable at battery.
2. Remove front bumper.

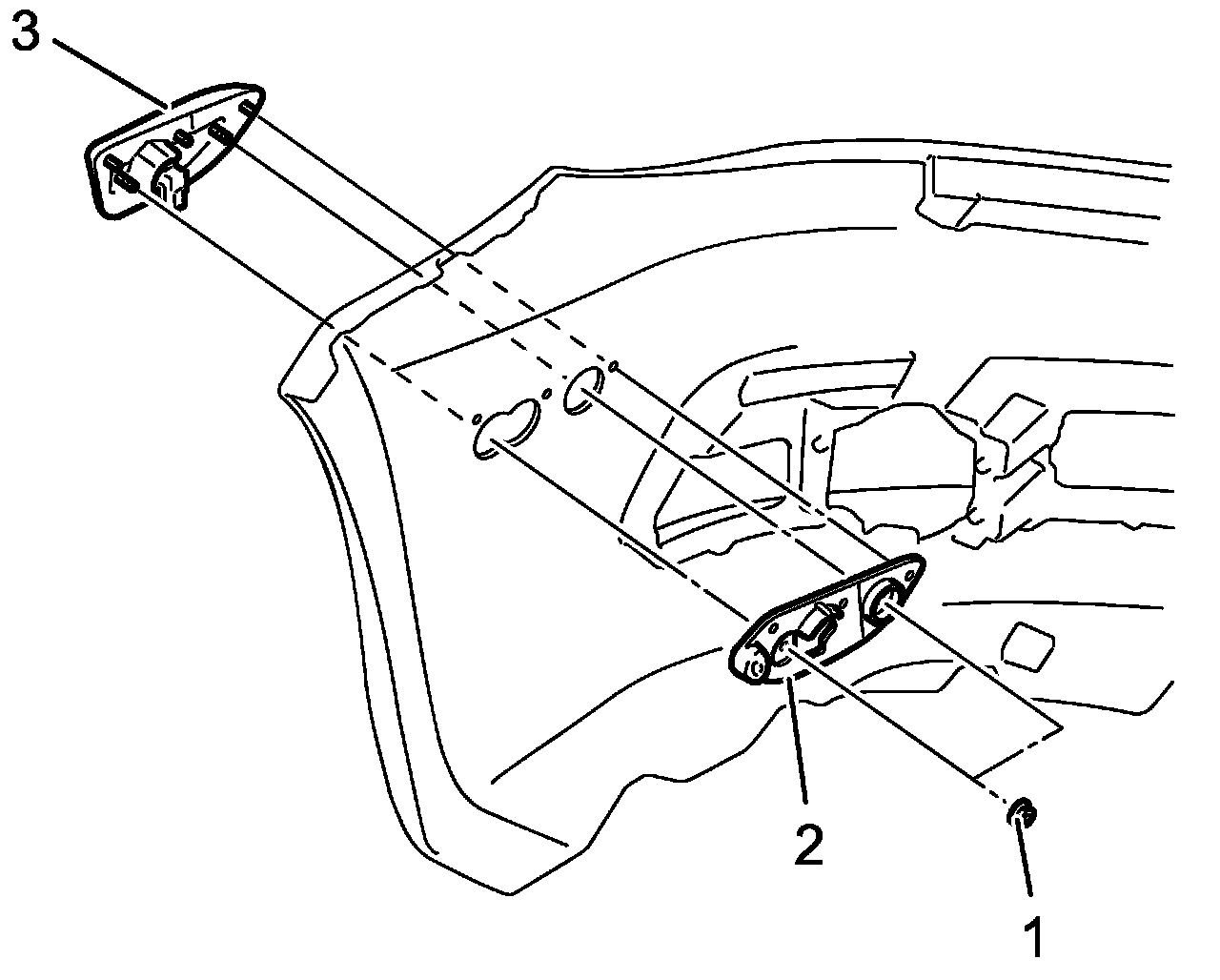

3. Remove front side marker light nuts (1)
4. Remove front side marker light holder (2) and front turn signal light (3).







5. Remove bulb.

Installation
Reverse removal procedure, noting the following points.
- Tighten front side marker light nuts to specified torque.

Tightening torque

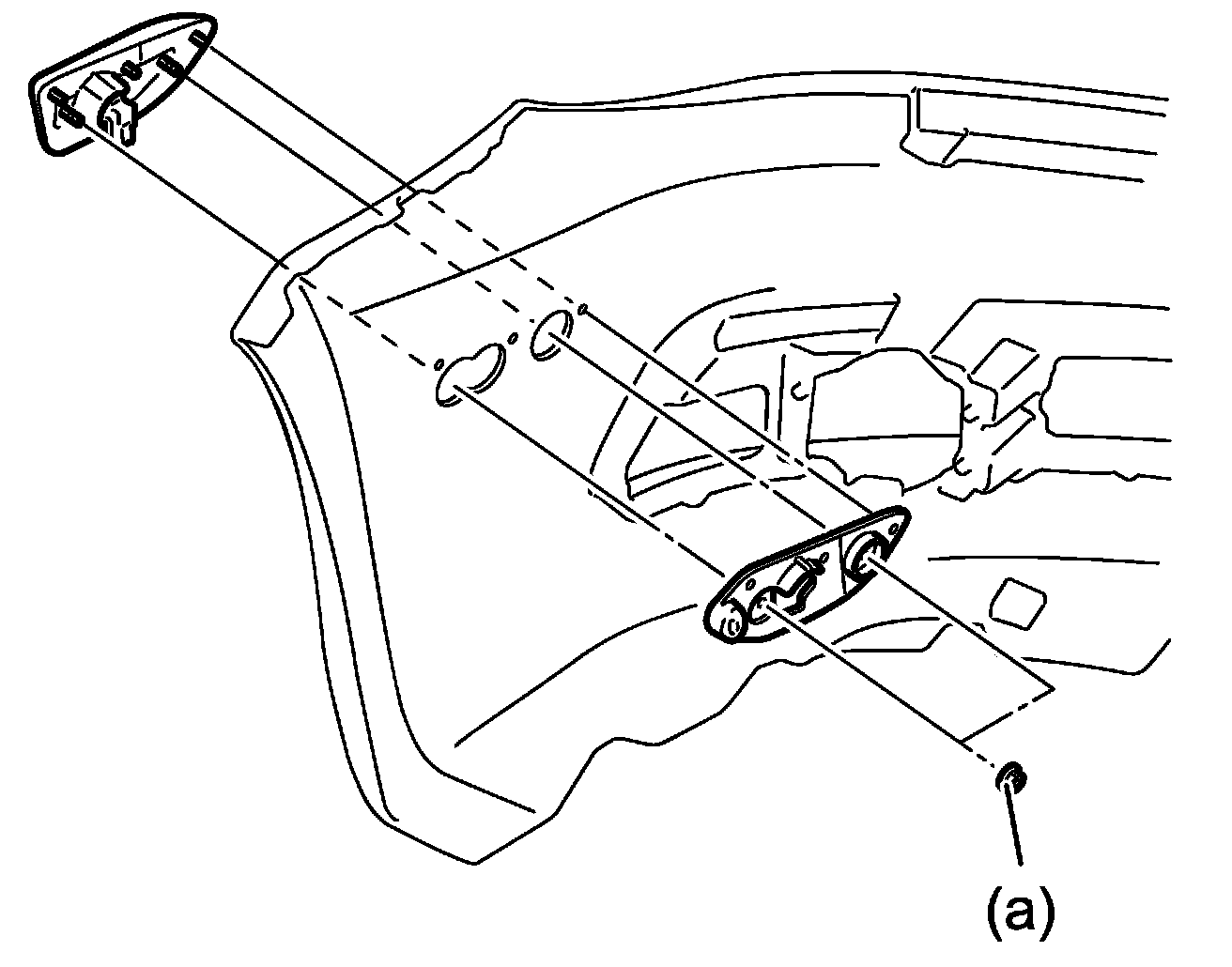

Front side marker light nut (a): 3.4 N.m (0.34 kg-m, 2.5 lbf-ft)
