Brake Light Switch: Adjustments

Brake Light Switch Adjustment

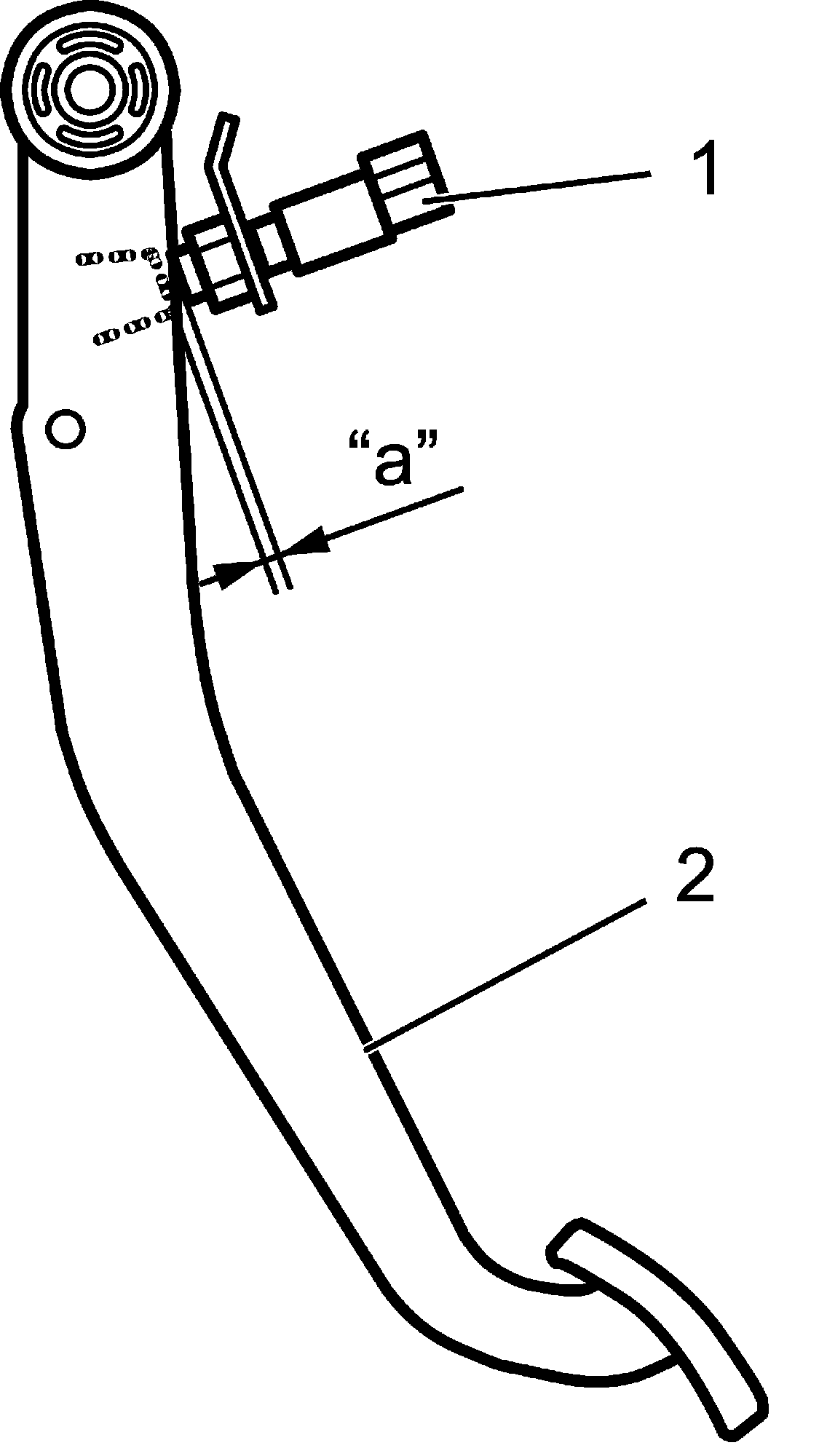

Pull up brake pedal (2) toward driver. While holding the pedal, adjust brake light switch (1) position so that clearance between end of thread and brake pedal is as specified. Then lock it by turning clockwise.

Clearance between brake pedal and brake light switch
"a": 1.0 - 2.0 mm (0.040 - 0.080 in.)
