Wiper Switch: Testing and Inspection

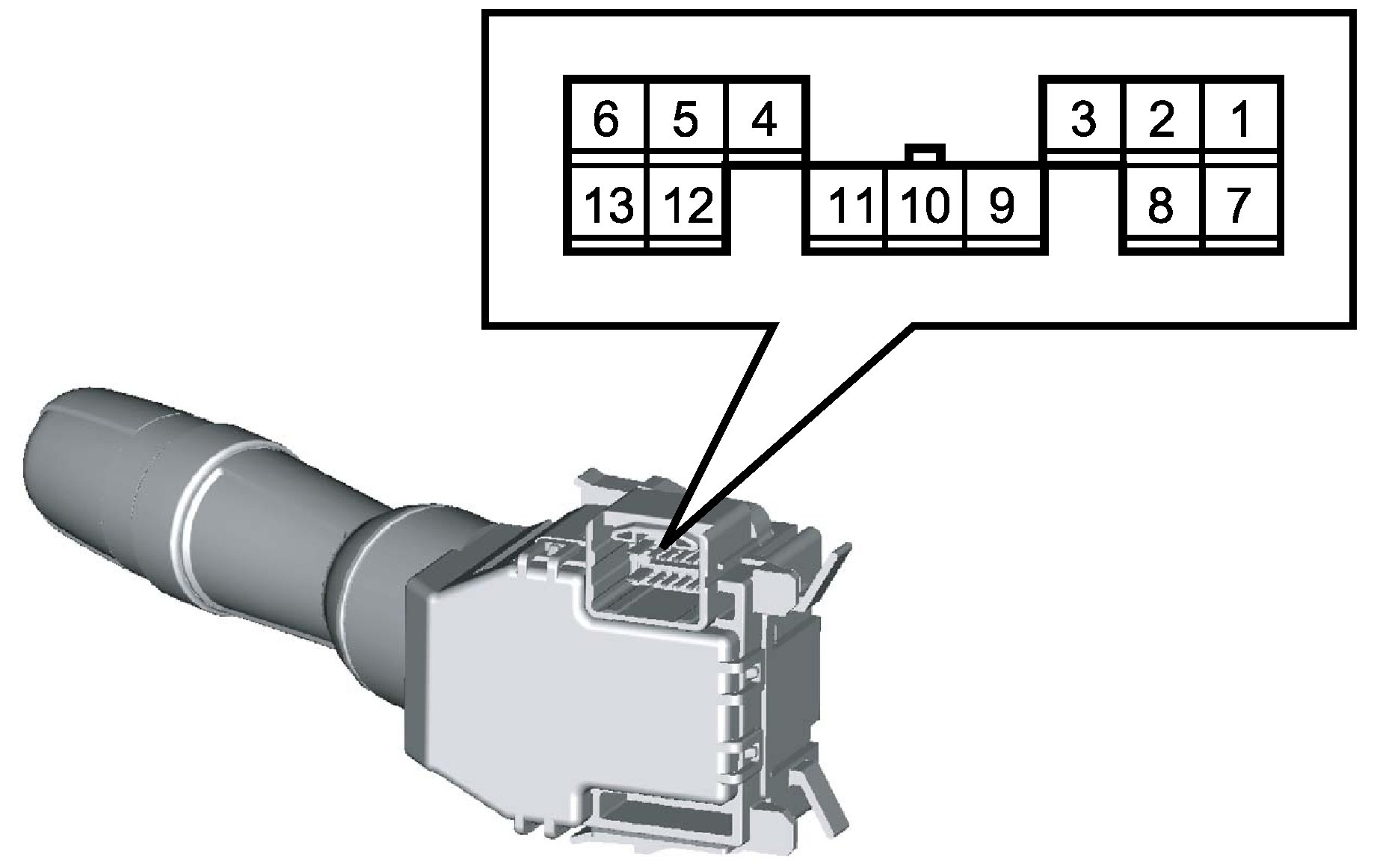

Wiper and Washer Switch InspectionWiper and Washer Switch Circuit Continuity Check
Check continuity between terminals at each switch position. If check result is not as specified, replace wiper and washer switch.
Wiper switch continuity

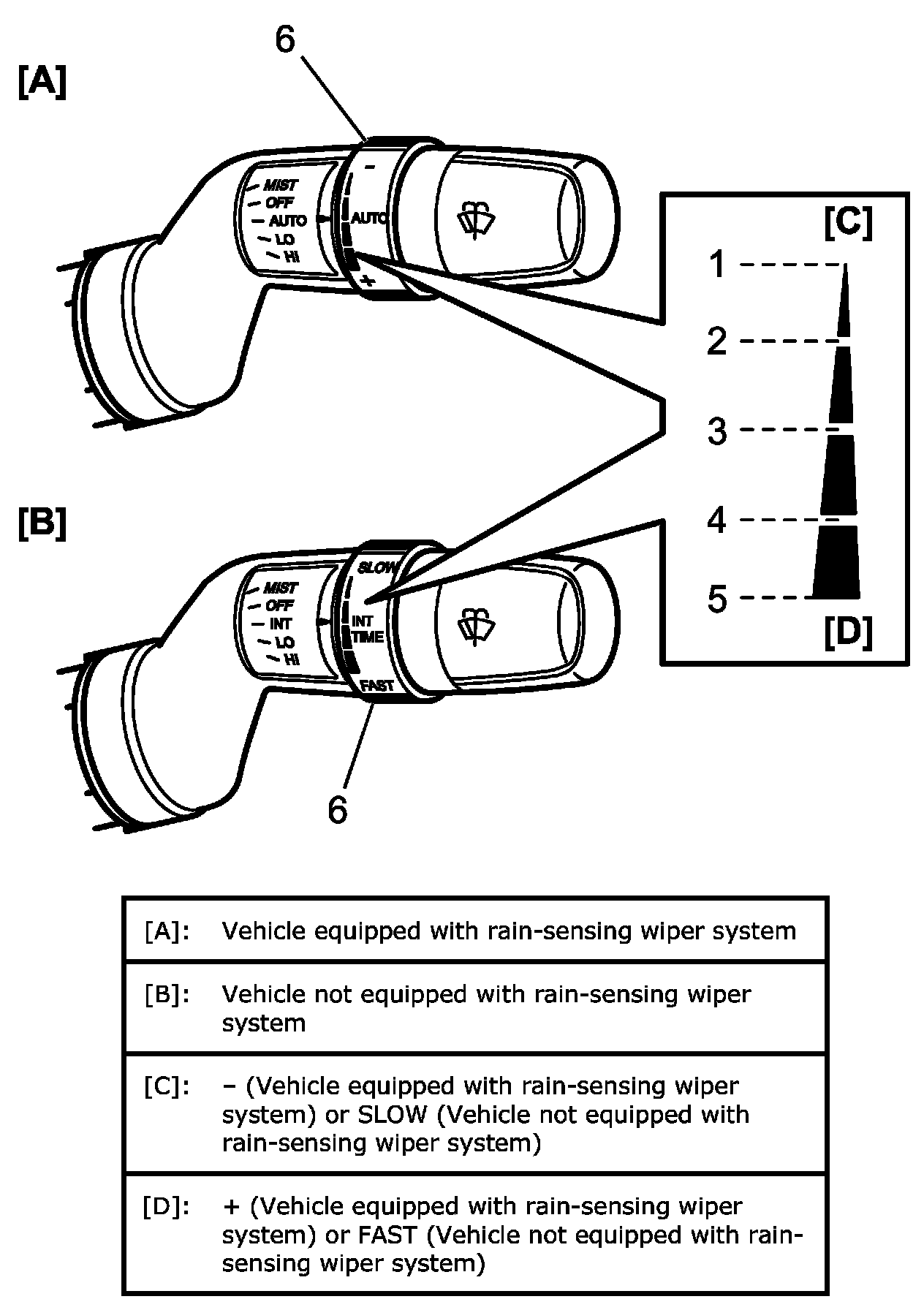

Adjustment Knob Check
Check resistance between terminal "9" and terminal "12" with adjustment knob (6) set at each position. If check result is not as specified, replace wiper and washer switch.
Wiper adjustment knob resistance
