Rear Door Window Regulator: Service and Repair

Rear Door Components

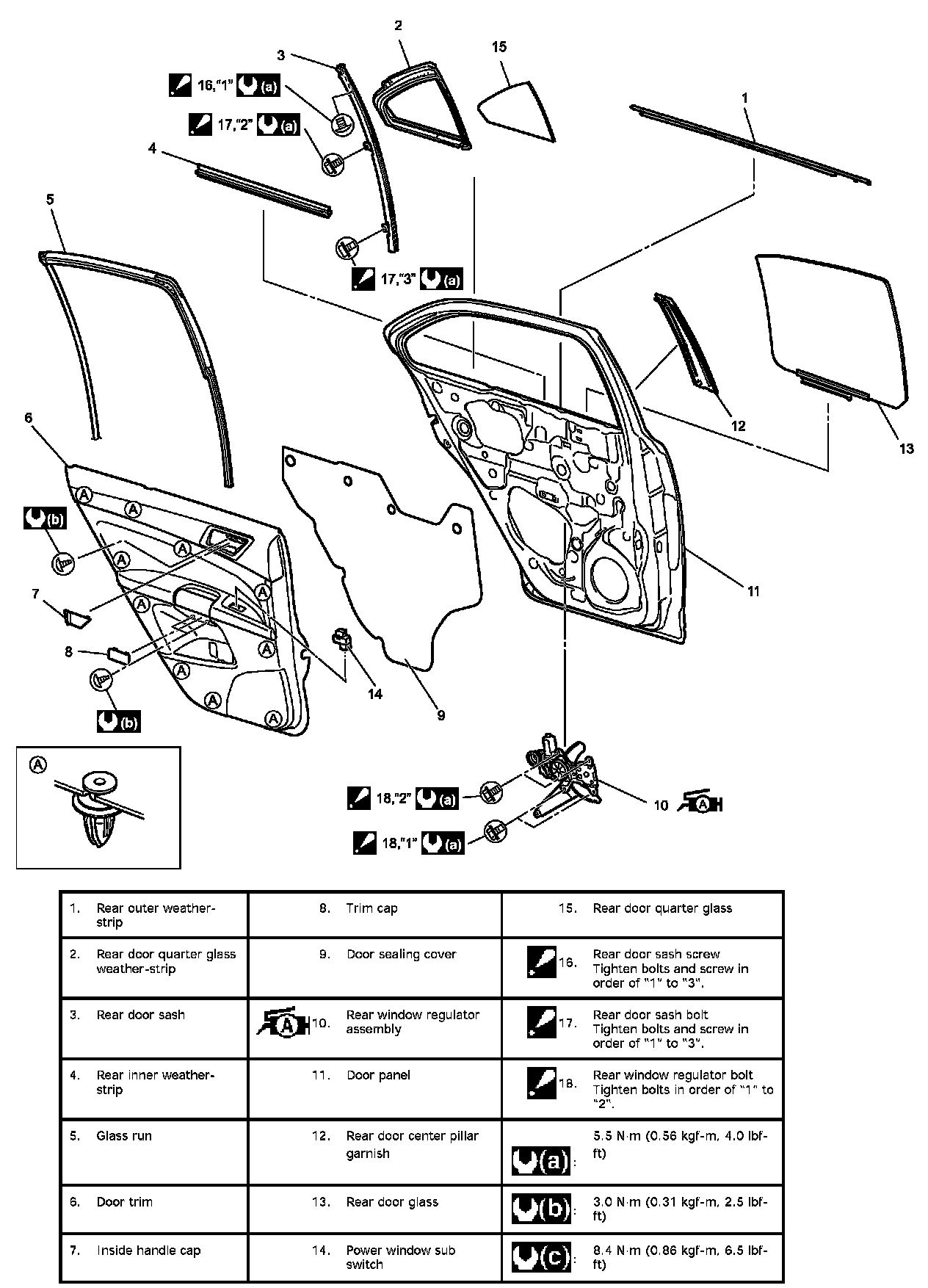

Rear Door Components:

Rear Window Regulator Assembly Removal And Installation

Removal

1. Disconnect negative (-) cable at battery.
2. Remove rear door glass.

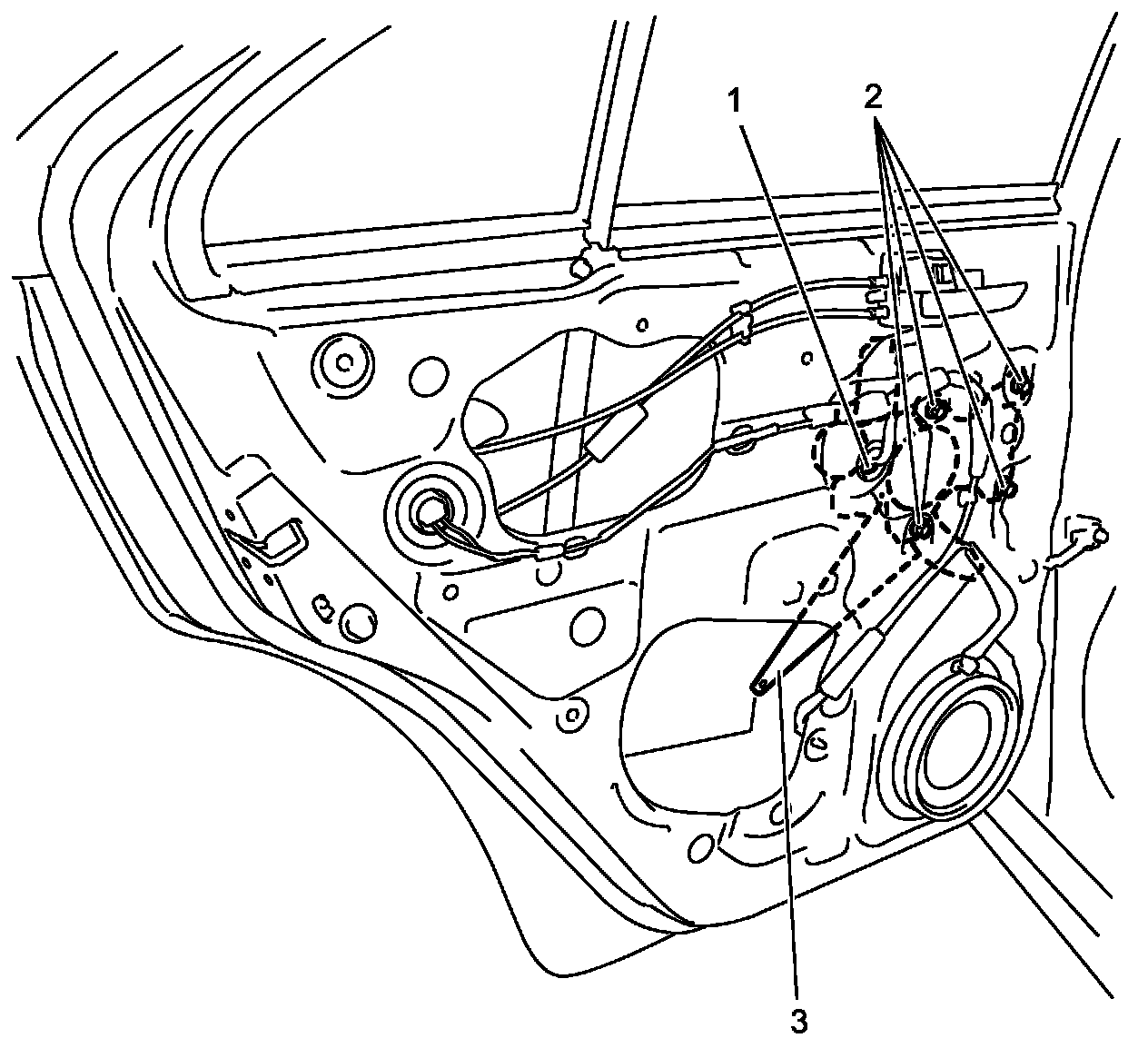

3. Disconnect power window motor connector (1).
4. Remove window regulator bolts (2) and remove rear window regulator assembly (3).







Installation

Reverse removal procedure noting the following points.
- Apply grease to sliding parts of rear window regulator assembly.

: Grease 99000-25011 (SUZUKI Super Grease A)

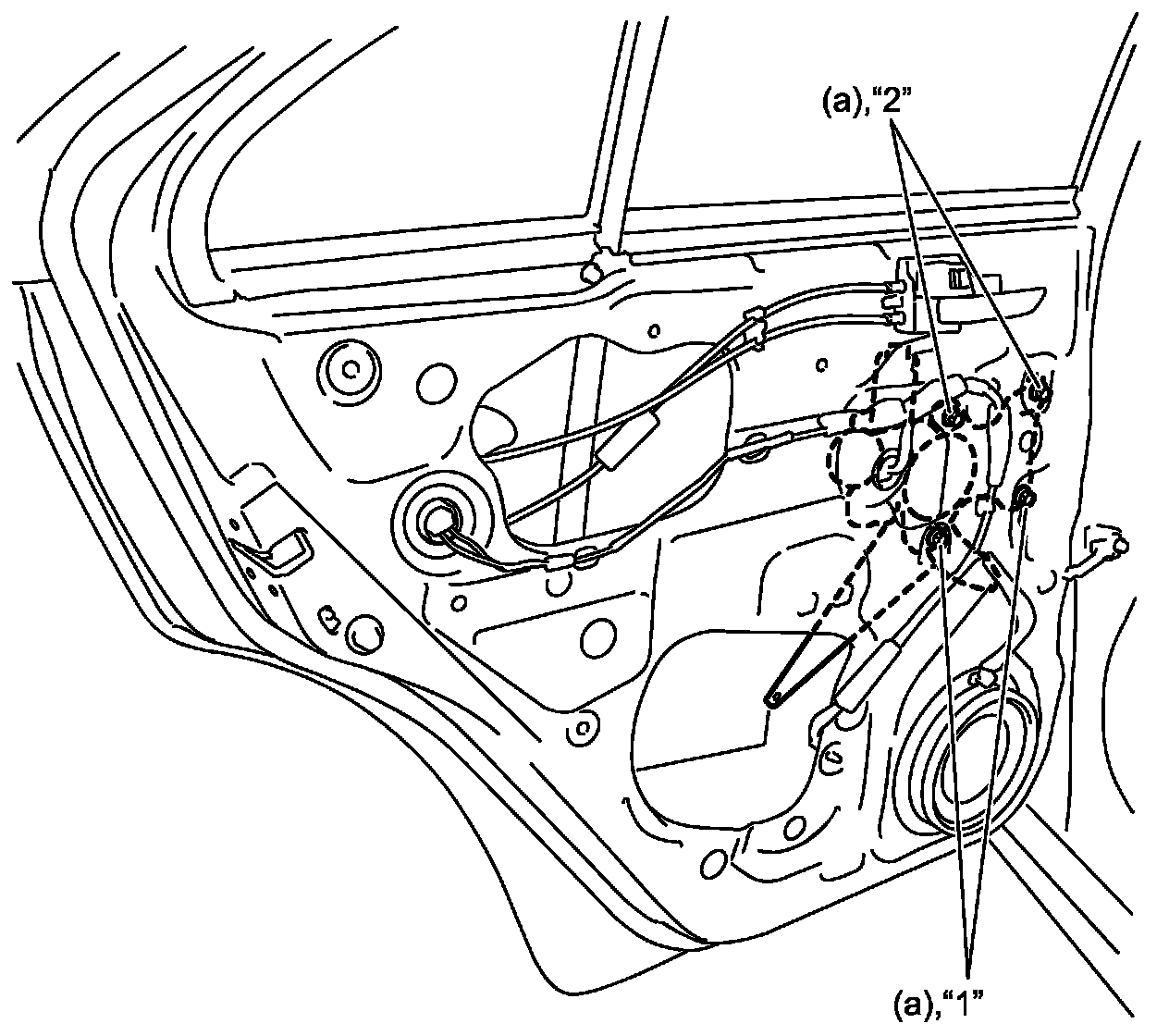

- Tighten rear window regulator bolts in order ("1" to "2") to specified torque.

Tightening torque
Rear window regulator bolt (a): 8.4 N.m (0.86 kg-m, 6.5 lbf-ft)







- Tighten each part to specified torque referring to Rear Door Components.
