Front Door Window Regulator: Service and Repair

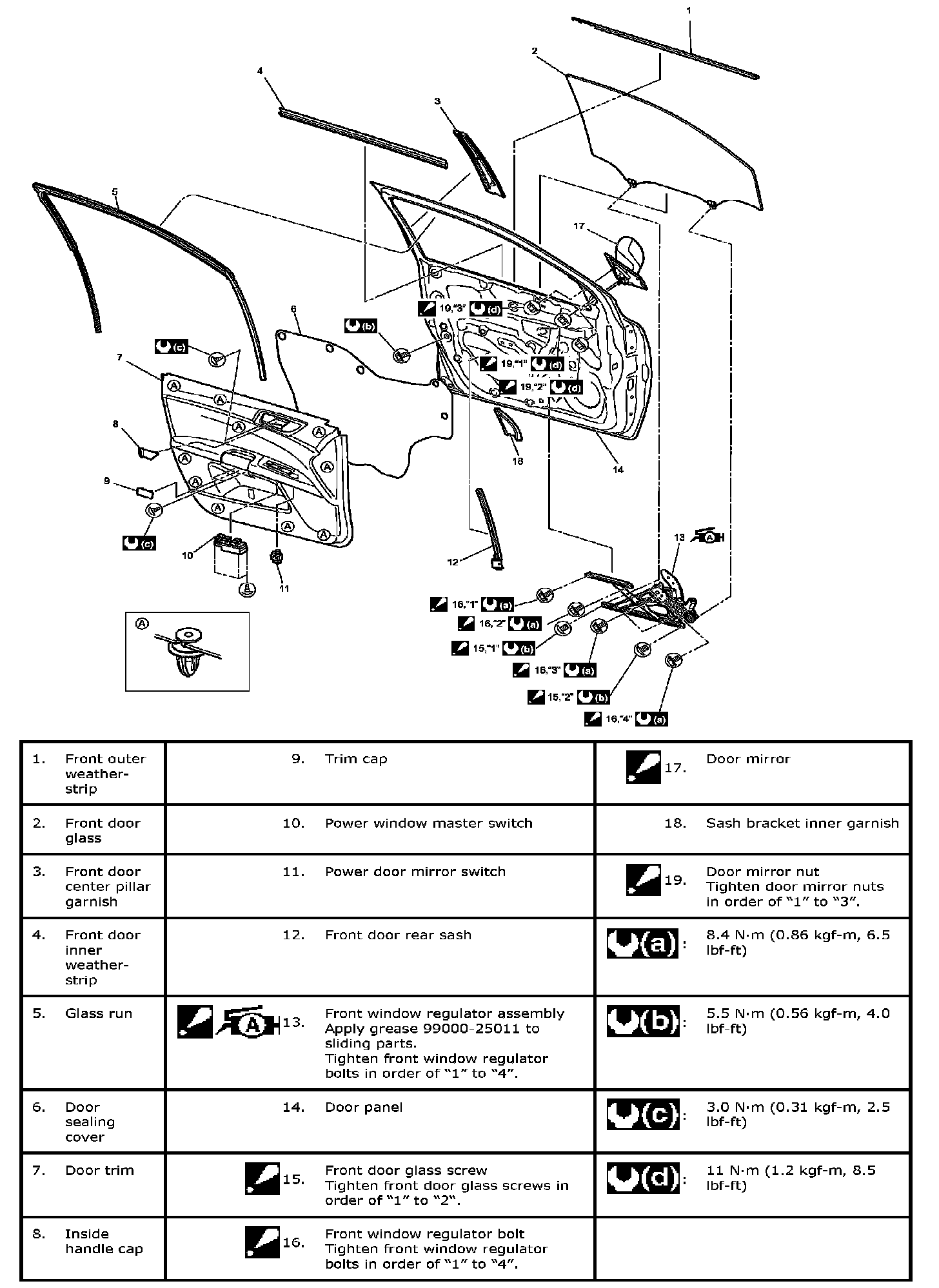

Front Door Components

Front Door Componenst:

Front Window Regulator Assembly Removal And Installation

Removal

1. Remove front door glass.
2. Disconnect negative (-) cable at battery.

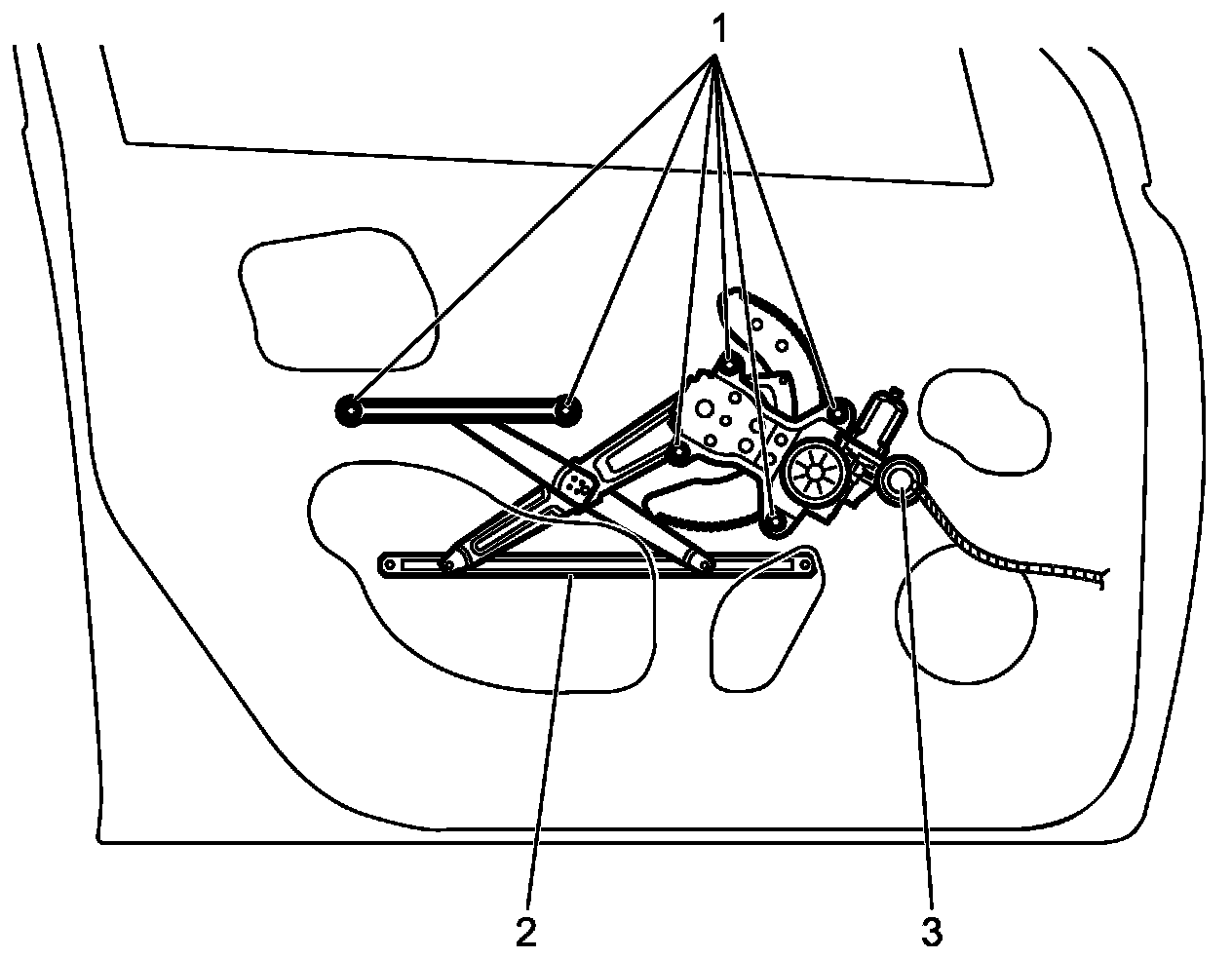

3. Disconnect power window motor connector (3).
4. Remove front window regulator bolts (1) and remove front window regulator assembly (2).







Installation

Reverse removal procedure noting the following points.
- Apply grease to sliding parts of front window regulator assembly.

: Grease 99000-25011 (SUZUKI Super Grease A)

- Tighten each part to specified torque referring to Front Door Components.

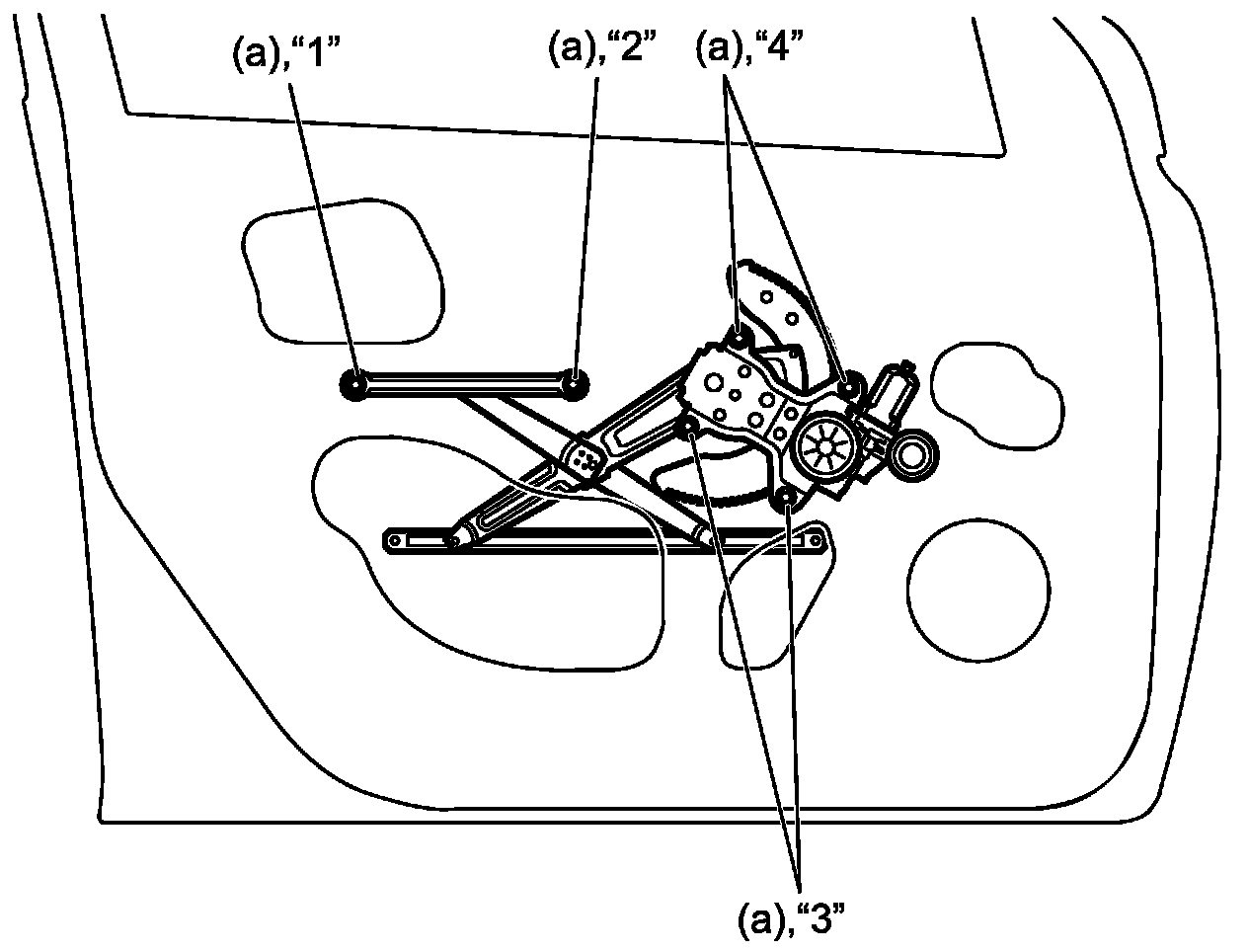

- Tighten front window regulator bolts in order ("1" to "4") to specified torque.

Tightening torque
Front window regulator bolt (a): 8.4 N.m (0.86 kg-m, 6.5 lbf-ft)







- Initialize power window setup if front window regulator assembly is replaced.
