Component Tests and General Diagnostics

Inspection Of Power Window Anti-Pinching Function

1. Open door glass fully.

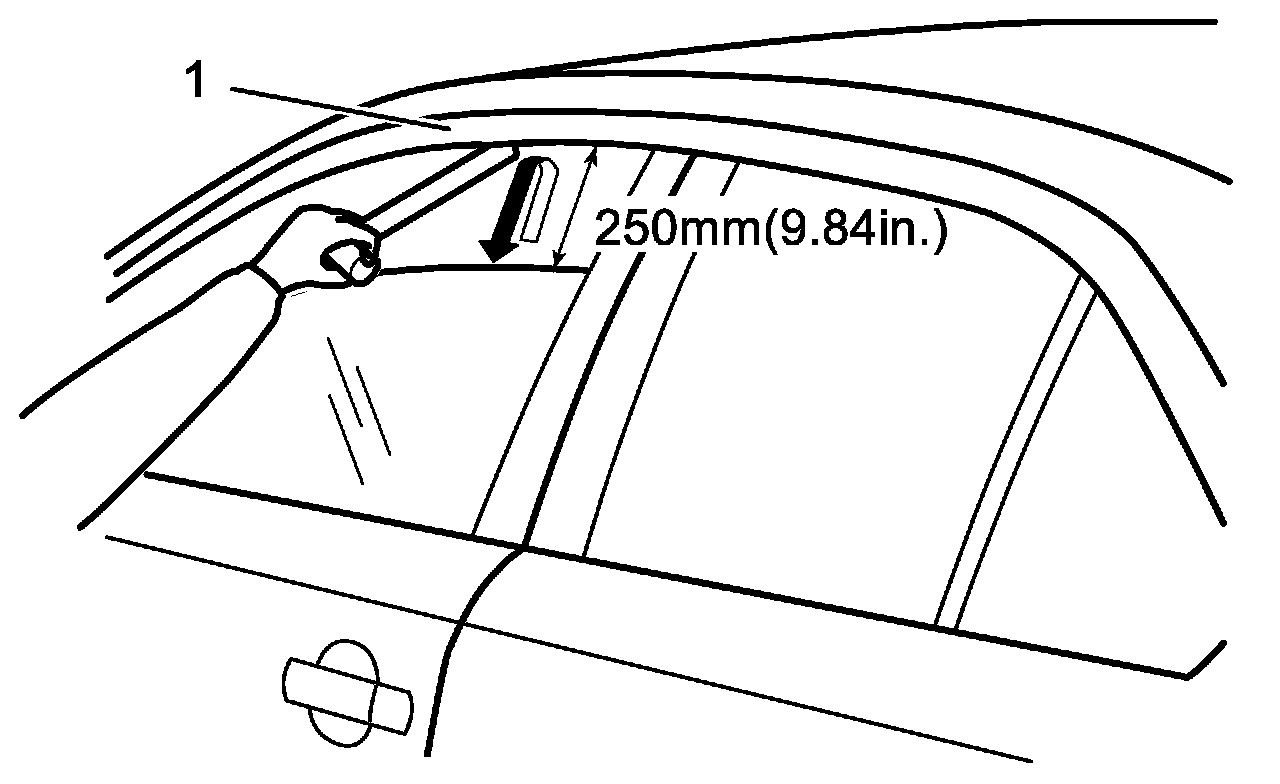

2. Place wood handle of hammer as shown in figure.

CAUTION: If vehicle is equipped with door visor, put hammer handle from inside the vehicle to prevent it from touching the visor.

NOTE: Use switch on each door when checking.

3. Activate auto up of power window.
4. Check that window glass automatically reverses to prevent pinching the hammer handle (to a point about 250 mm (9.84 in.) below outside top end (1) of glass run-channel.)
5. If the function is faulty, initialize power window system.
