Gear Shift and Select Shaft Assembly Disassembly and Reassembly

Gear Shift and Select Shaft Assembly Disassembly and Reassembly
Reference: Manual Transaxle Unit Dismounting and Remounting
Reference: Gear Shift and Select Shaft Assembly Removal and Installation
Reference: Gear Shift and Select Shaft Assembly Components

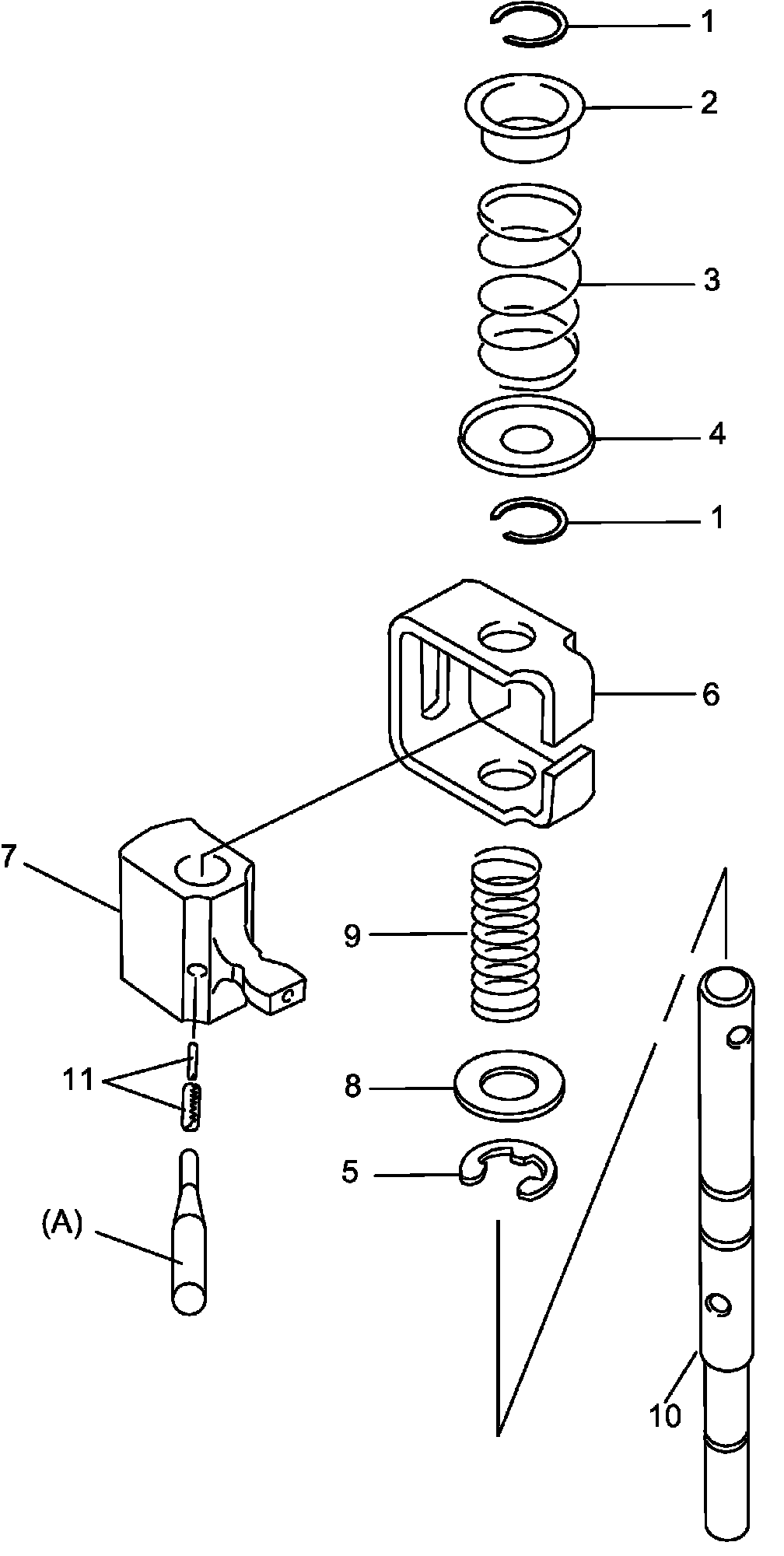

1) Push spring pins out using special tool as shown in figure.

Special Tool
(A): 09925-78210 6.0 mm

2) Inspect component parts for wear, distortion or damage. If any defect is found, replace defective part with new one.

NOTE:
When driving in spring pins, prevent shaft from being bent by supporting it with wood block.
