Flywheel/Drive Plate Inspection

Flywheel/Drive Plate Inspection
Reference: Main Bearings, Crankshaft and Cylinder Block Removal and Installation

Visual Inspection
^ Check ring gear of flywheel for M/T model or drive plate for CVT model, for cracking, wear or any damage.
Replace flywheel for M/T model or drive plate for CVT model if defective condition is found.

Flywheel/Drive Plate Face Runout

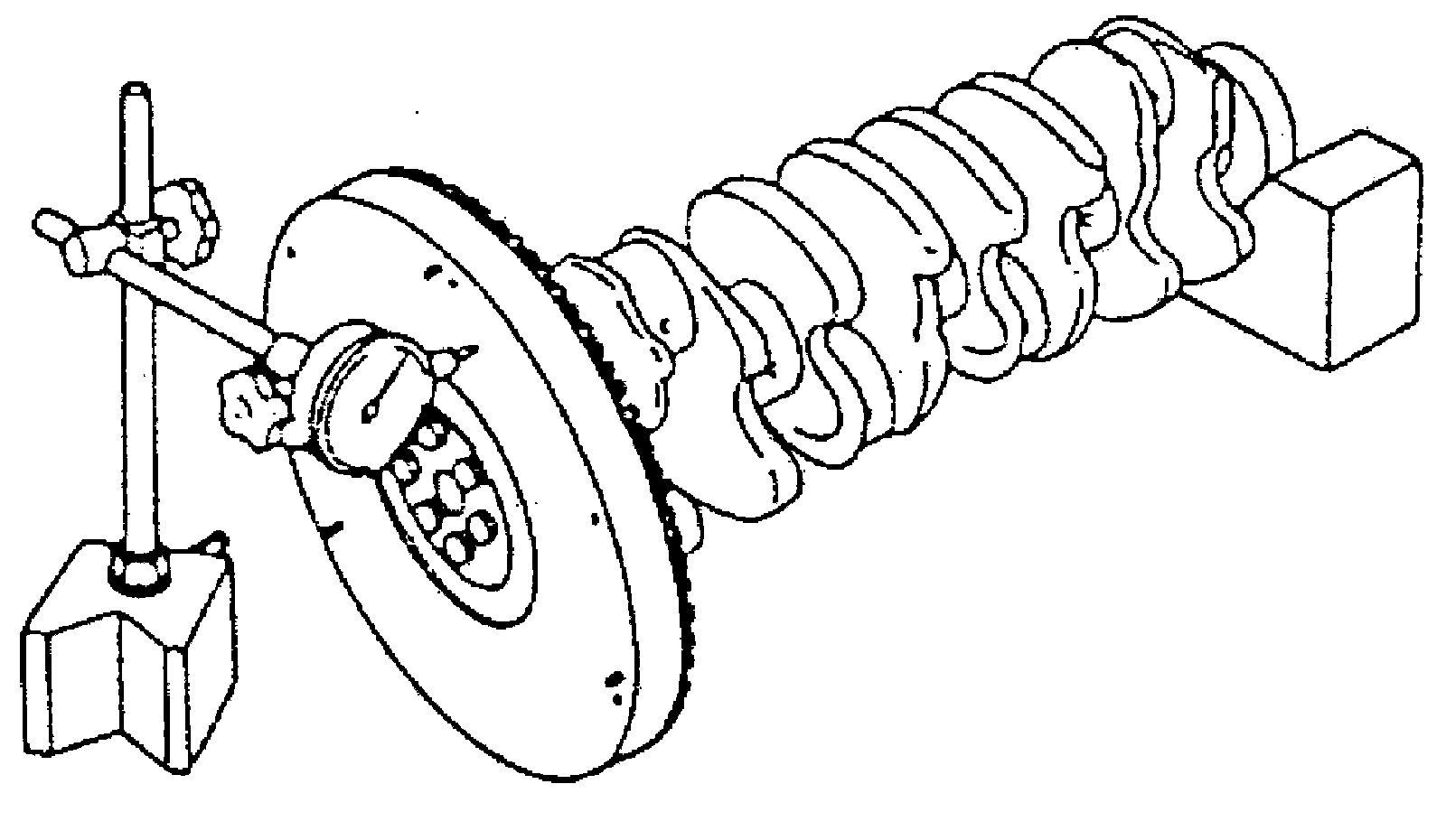

^ Check flywheel for M/T model or drive plate for CVT model for runout using dial gauge and "V" blocks.
Replace flywheel for M/T model or drive plate for CVT model if measured runout exceeds the limit.

Flywheel/drive plate face runout
Limit: 0.2 mm (0.0078 in.)
