Switch: Service and Repair

2WD/i-AWD Switch Removal and Installation

Removal

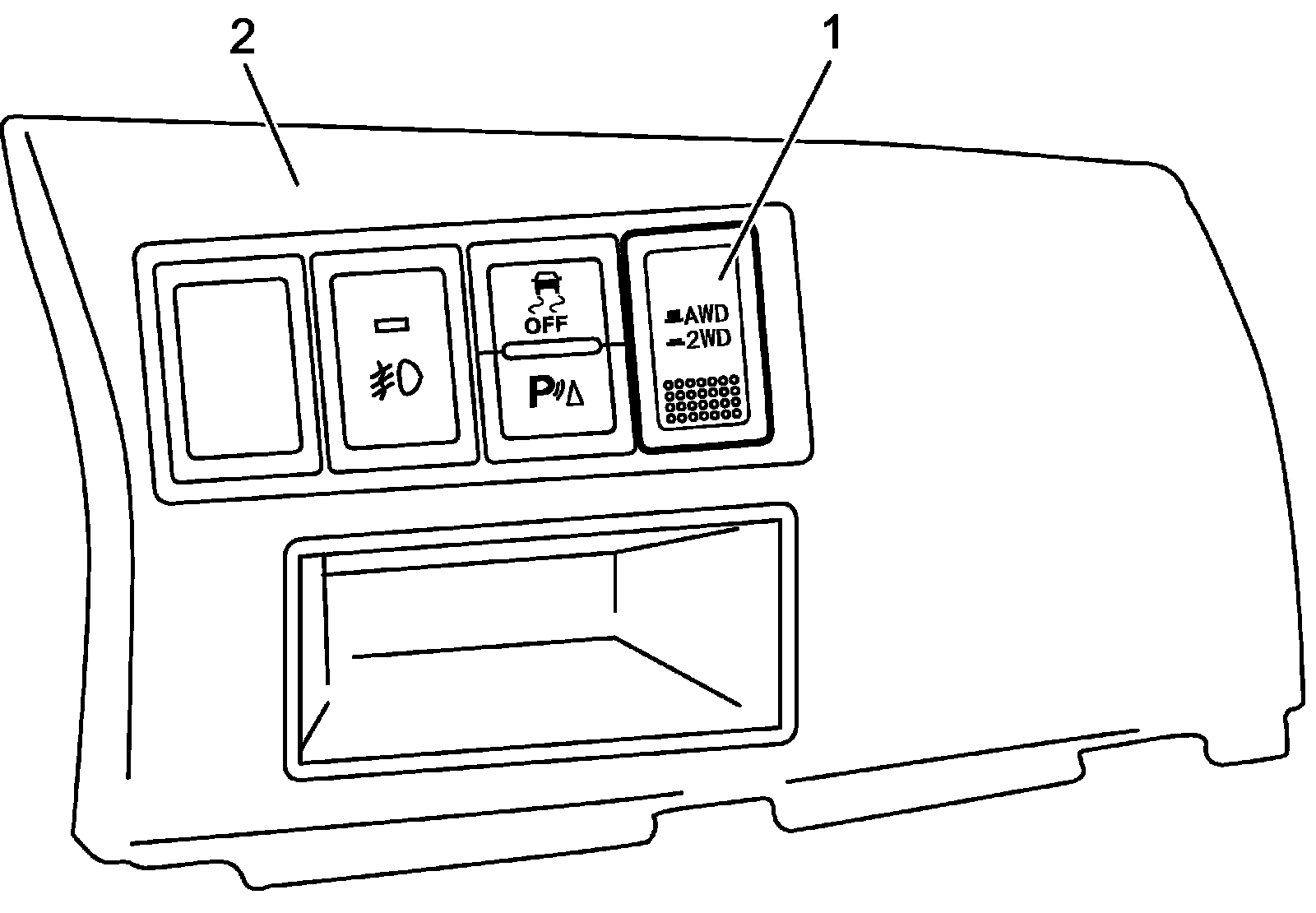

1) Remove instrument panel switch bezel (2).
2) Remove 2WD/i-AWD switch (1) from instrument panel switch bezel.





Installation
Reverse removal procedure.
