Differential Lock Hydraulic Fluid Temperature Sensor: Service and Repair

Coupling Air Temperature Sensor Removal and Installation

Removal
1) Dismount rear differential.

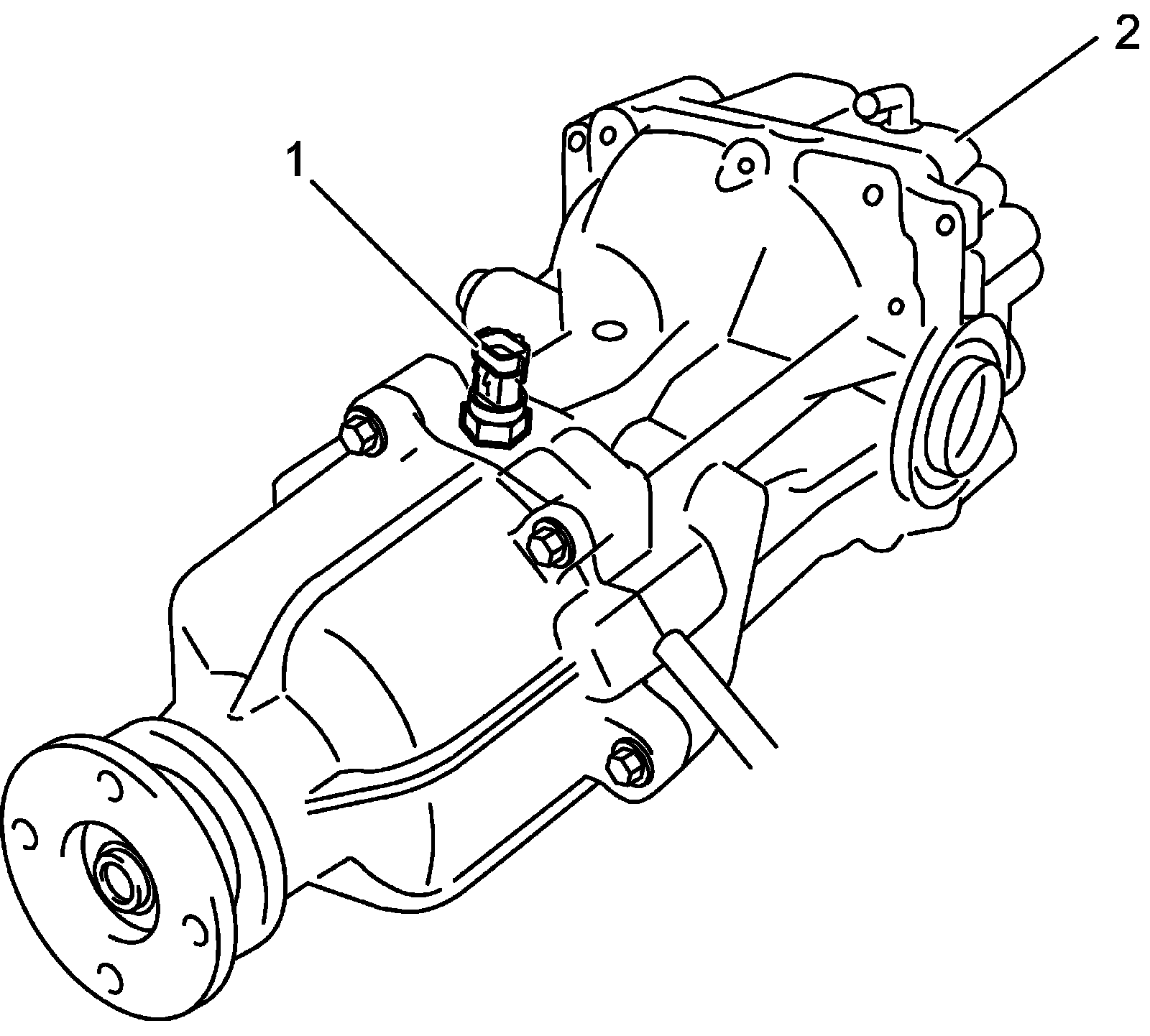

2) Remove coupling air temperature sensor (1) from rear differential (2).





Installation
Reverse removal procedure, noting the following point:
^ Tighten coupling air temperature sensor to specified torque.

Tightening torque
Coupling air temperature sensor: 18 Nm (1.8 kg-m, 13.5 lbf-ft)
