Transmission Speed Sensor: Testing and Inspection

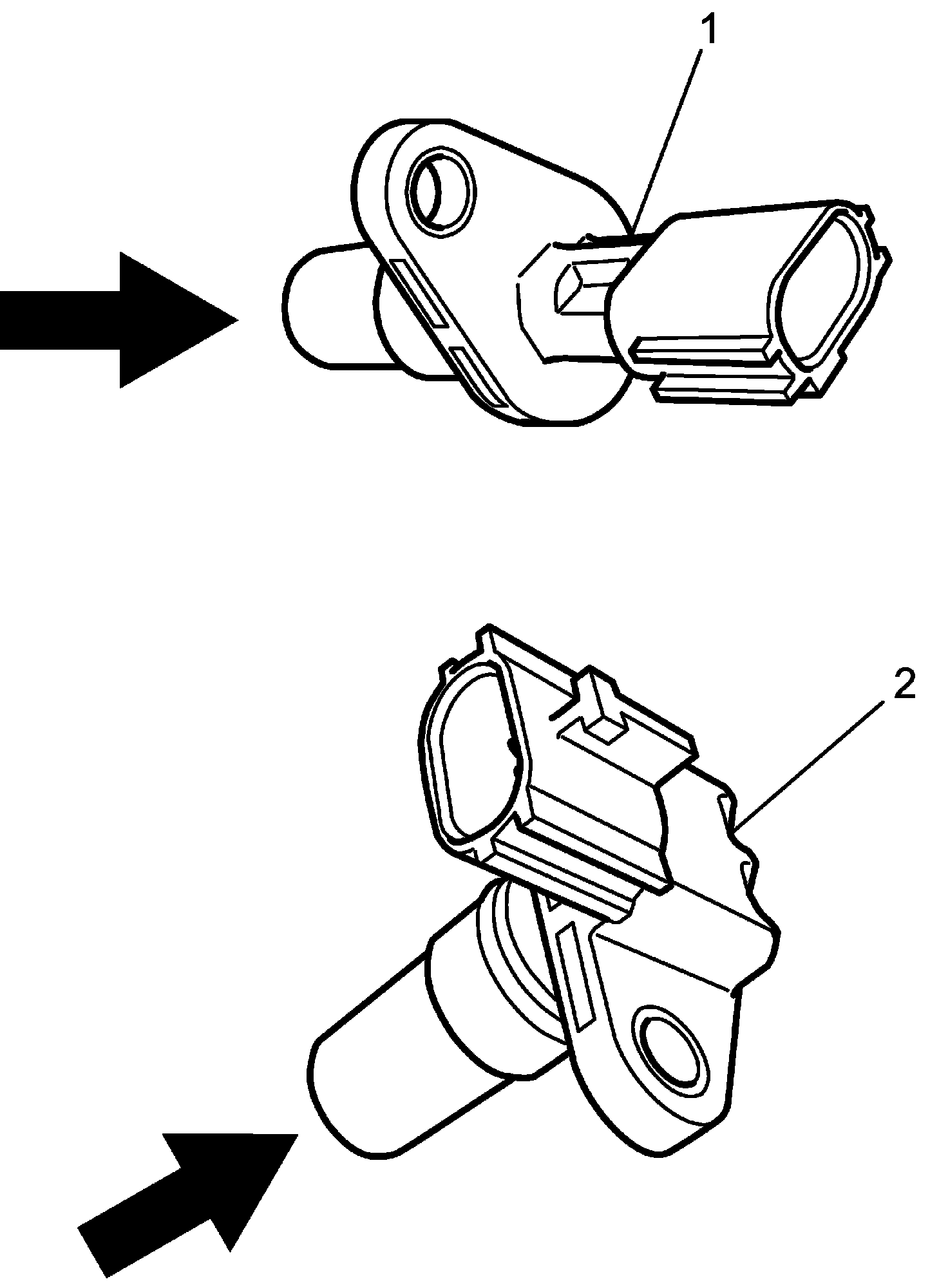

Primary Pulley Speed Sensor and Secondary Pulley Speed Sensor InspectionReference: Primary Pulley Speed Sensor Removal and Installation
Reference: Secondary Pulley Speed Sensor Removal and Installation
1) Check the following points:
^ O-ring is free of damage.
^ End face of sensor is free of any metal particles and damage.
2) Check sensors by the following procedure:

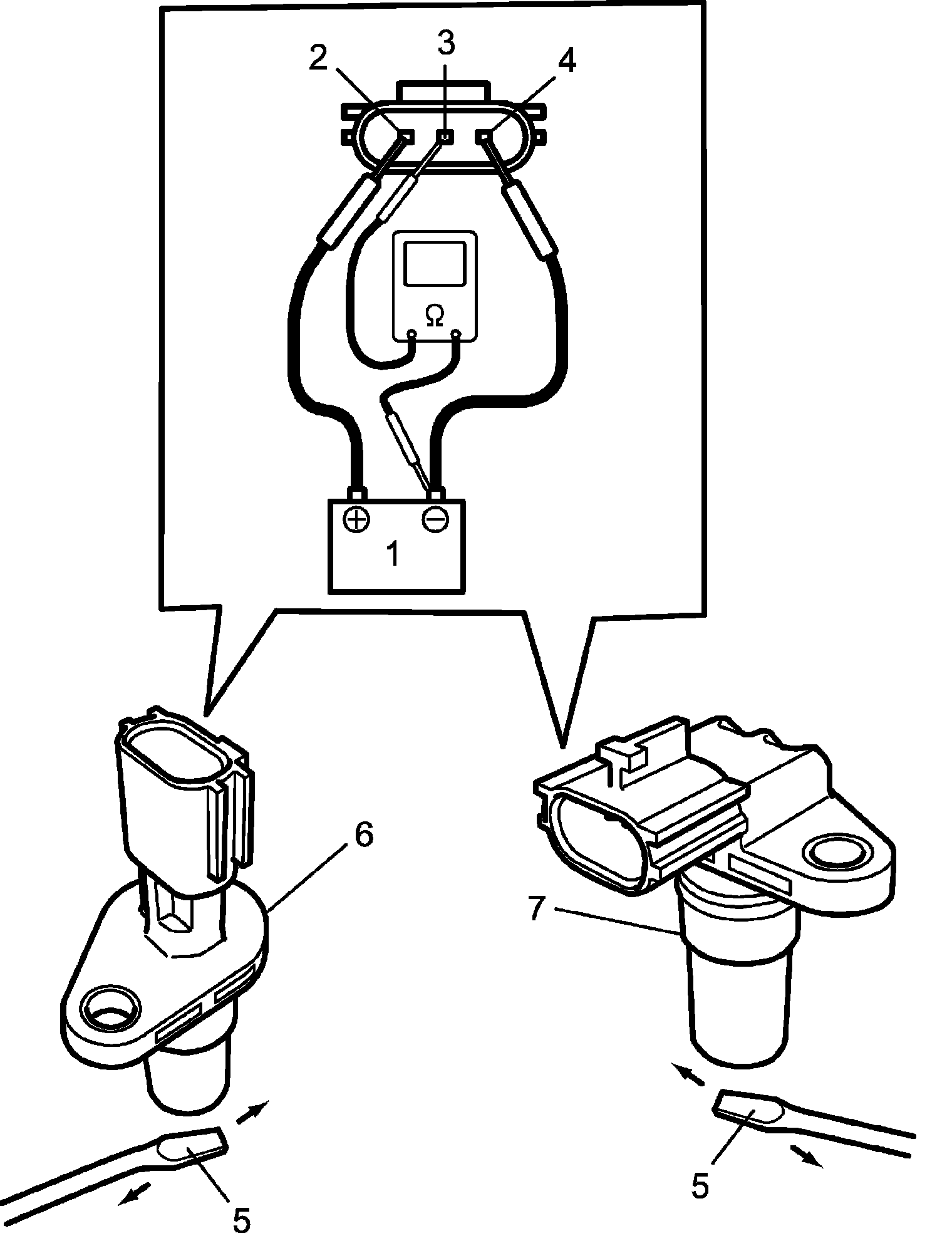

a) Arrange 12 V battery (1) and connect its positive terminal to terminal "2" (2) and negative terminal to terminal "4" (4) of primary pulley speed sensor connector or secondary pulley speed sensor connector.
b) Use ohmmeter to measure resistance between terminal "3" (3) of sensor connector and negative terminal of battery by passing flat-end screwdriver or the like (5) between them while maintaining an approximately 1 mm (0.03 in) gap with respect to end face of primary pulley speed sensor (6) or secondary pulley speed sensor (7).
Primary pulley speed sensor and secondary pulley speed sensor resistance
Less than 220 ohms (ON) <--> Infinity (OFF)
3) If resistance does not vary, replace primary pulley speed sensor or secondary pulley speed sensor.
