Transmission Position Sensor/Switch: Testing and Inspection

Transmission Range Sensor Inspection

CAUTION:
Do not reuse transmission range sensor. Reusing of transmission range sensor may affect the performance of CVT system.

1) Disconnect negative (-) cable at battery.
2) Remove air cleaner assembly.

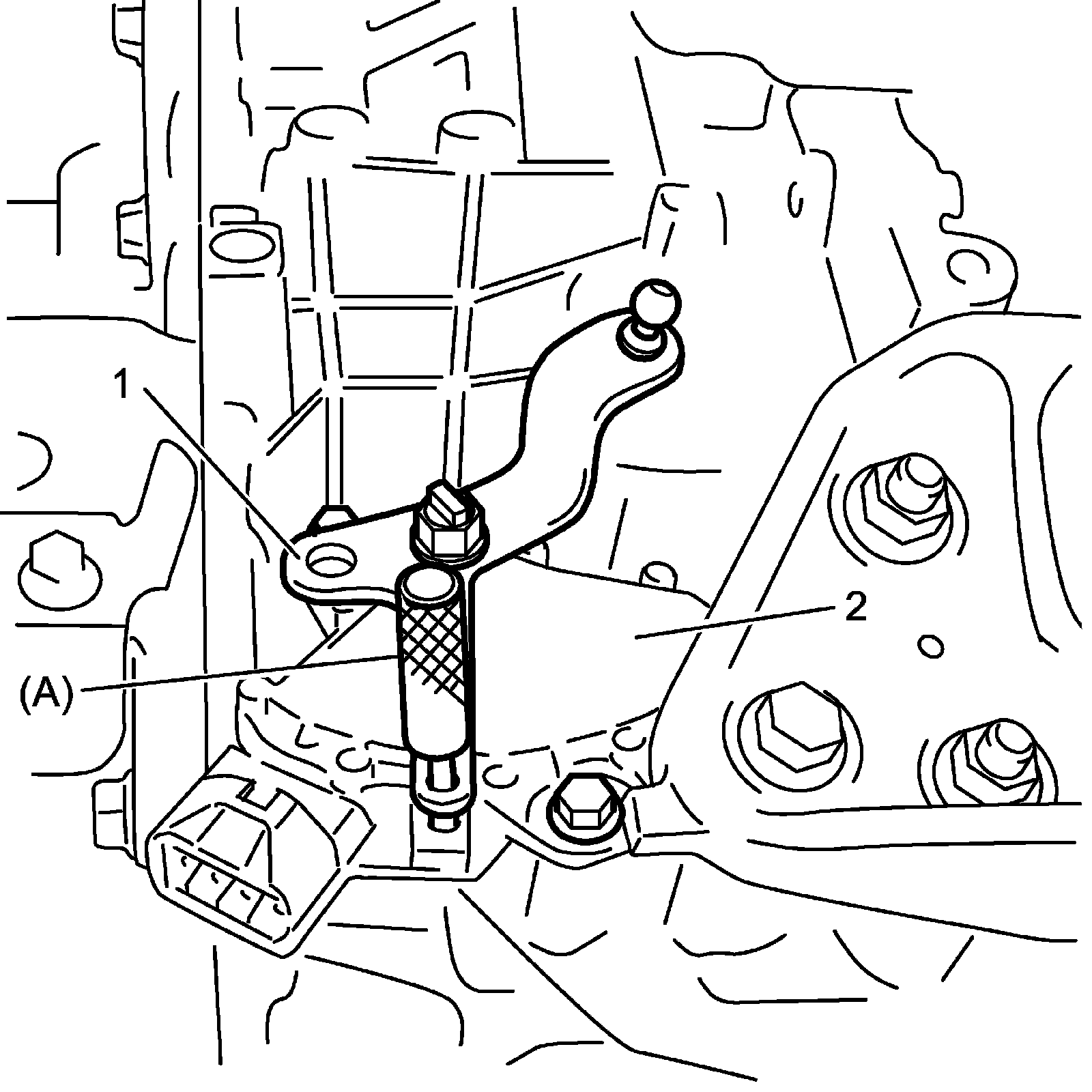

3) Shift select lever to "N" position and use special tool to check that aligning holes on manual select lever (1) and transmission range sensor (2) are aligned as shown in figure. If not, adjust transmission range sensor.

Special Tool
(A): 09916-44310





4) Check for continuity between terminals of transmission range sensor connector over each range shown in figure.
