CVT Symptom Diagnosis

CVT Symptom Diagnosis

Driving performance problems

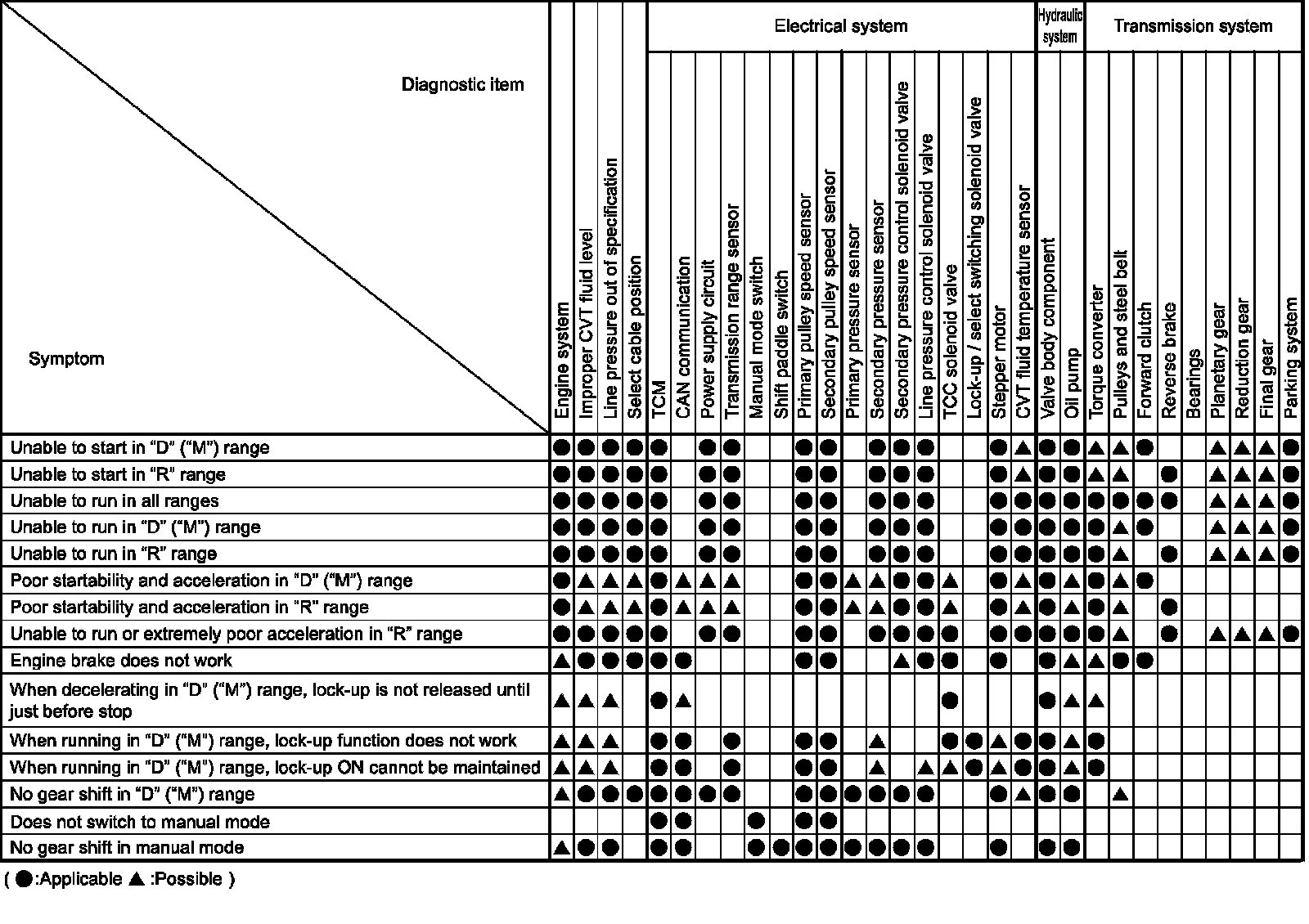

CVT Symptom Diagnosis - Driving performance problems:





Shock / vibration / abnormal noise

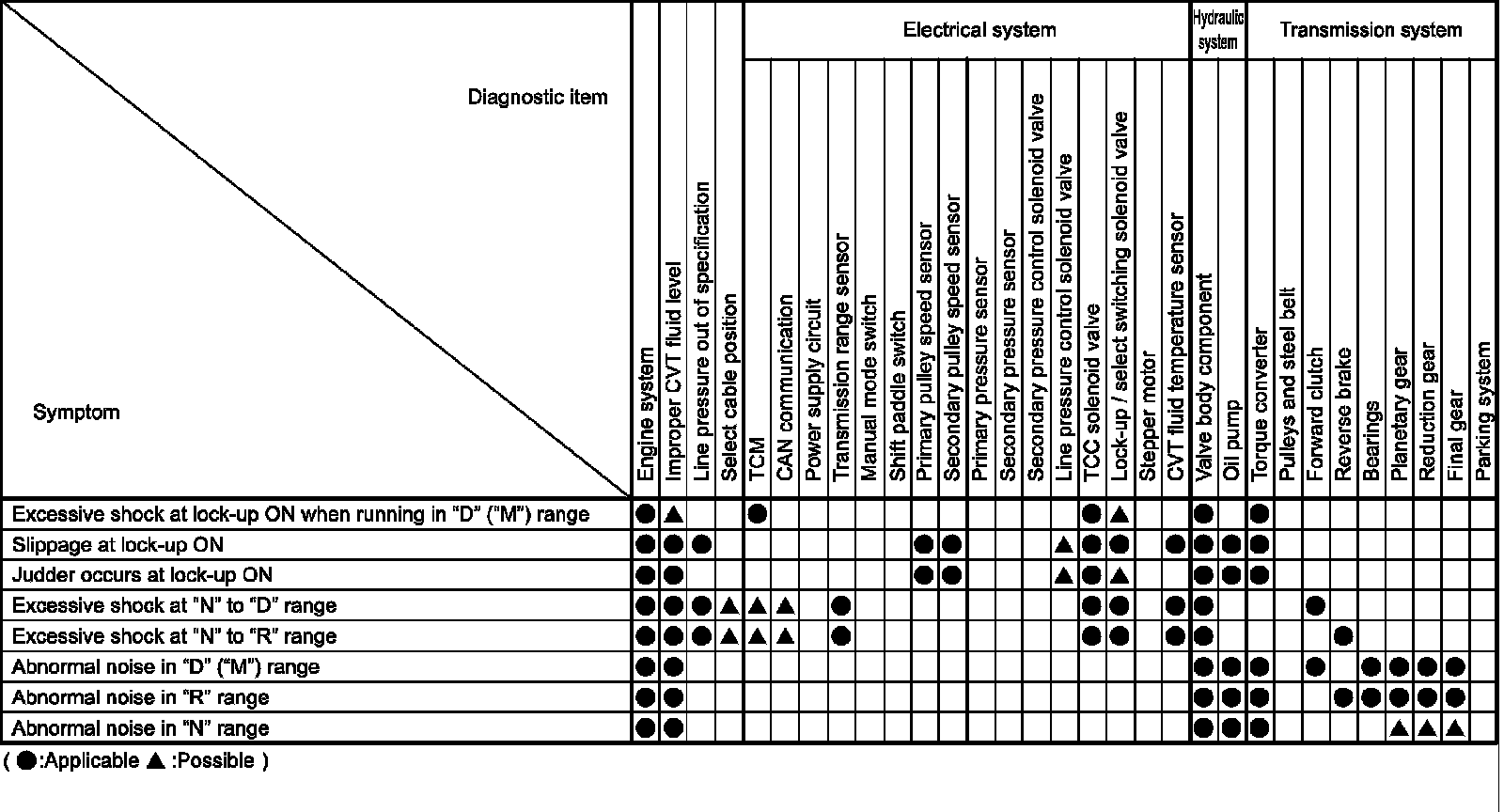

CVT Symptom Diagnosis - Shock / vibration / abnormal noise:





Others

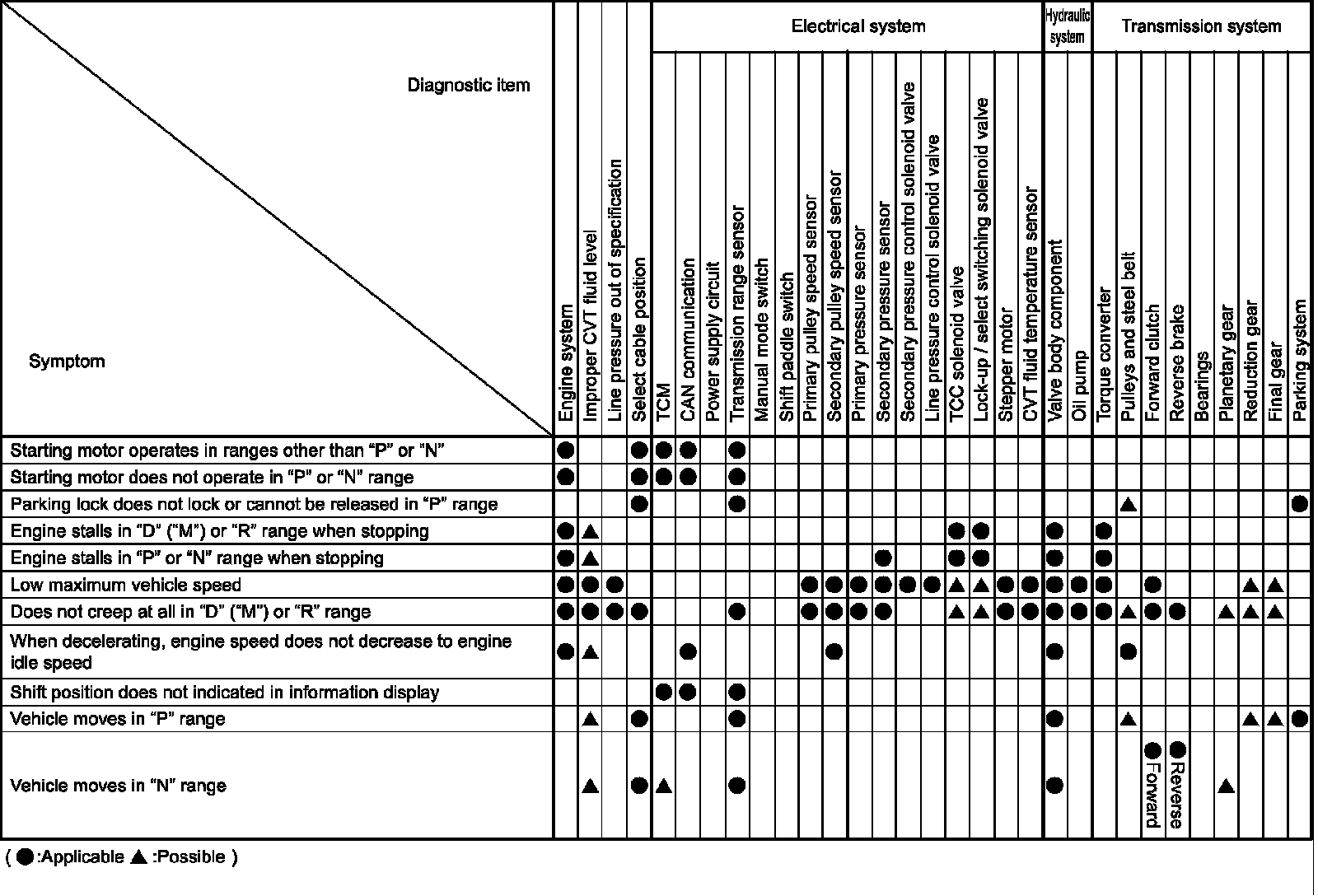

CVT Symptom Diagnosis - Others:
