Shift Paddle Switch Removal and Installation
Shift Paddle Switch Removal and InstallationCAUTION:
To avoid impairment of the original performance, do not remove horn plate from steering wheel assembly. If it is removed, one replace the entire steering wheel assembly with new one.
Removal
1) Remove steering wheel.

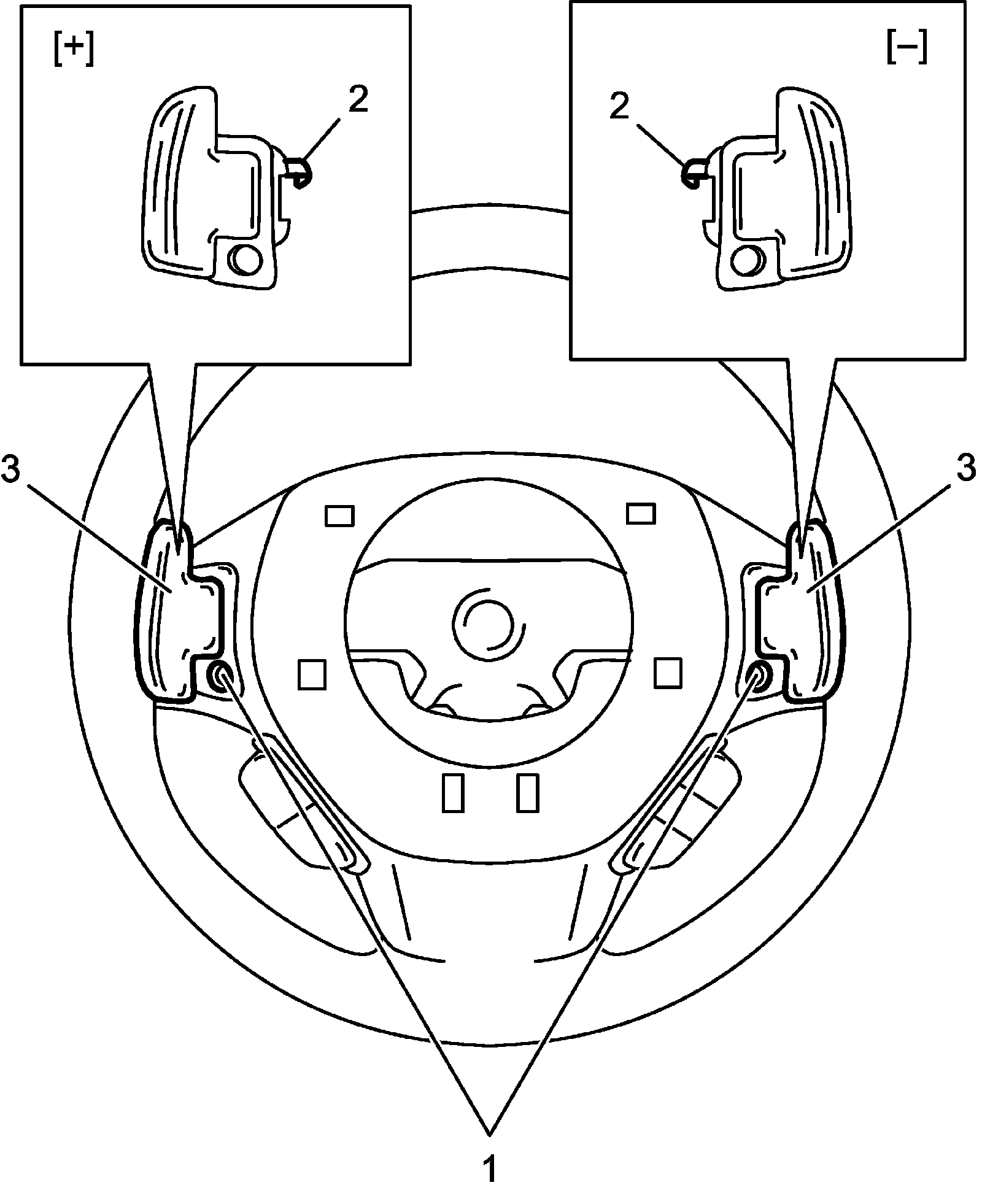

2) Remove screws (1) and release claws (2).
3) Disconnect connectors and then remove shift paddle switches (3).
Installation
Reference: Shift Paddle Switch Inspection
Reverse removal procedure.
