Fluid Pan: Testing and Inspection

CVT Oil Pan Inspection
Reference: CVT Oil Pan Removal and Installation

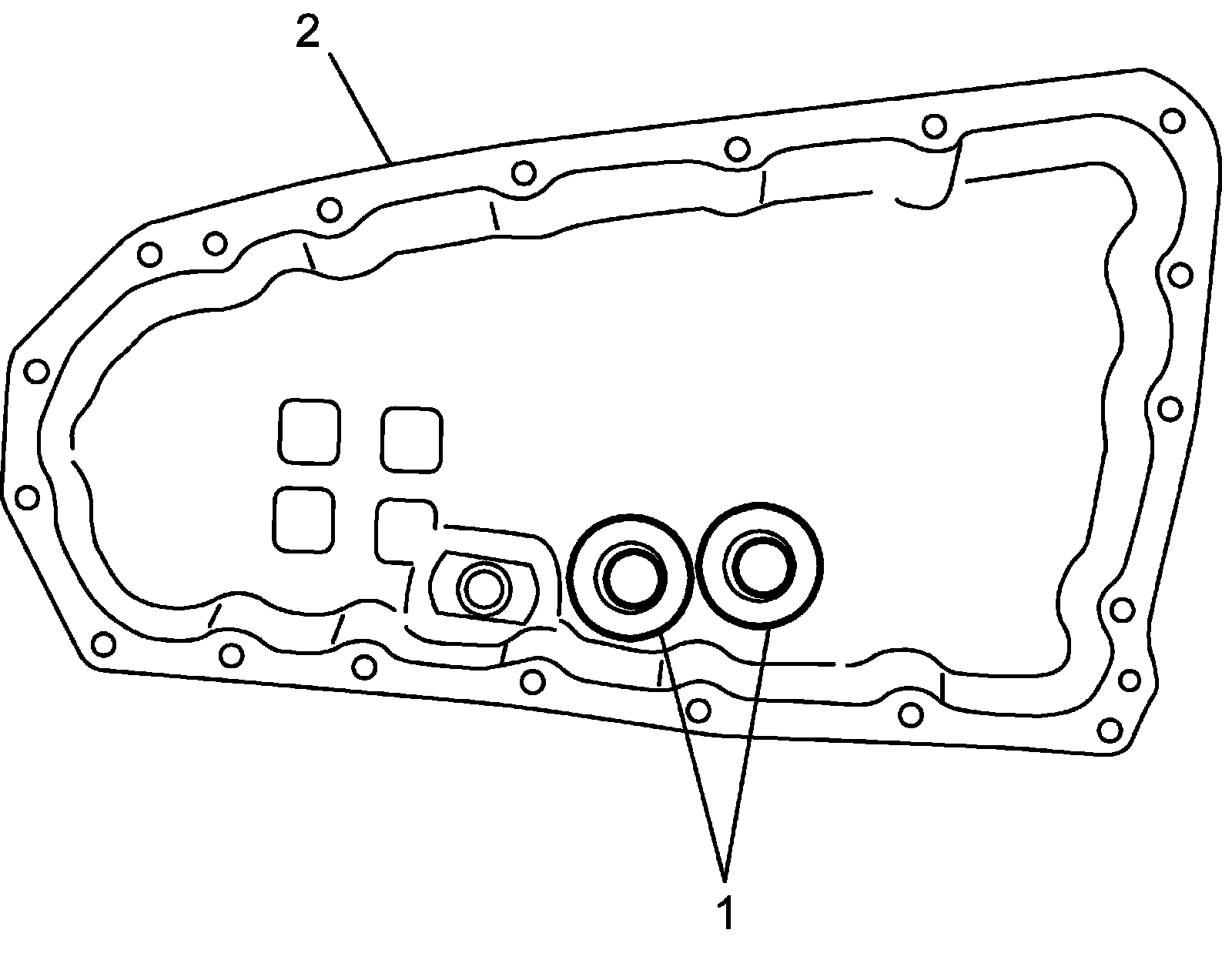

^ Check that no metal particle is attached to the oil cleaner magnets (1). If attached, clean it.
^ Check CVT oil pan (2) for crack, deformation, and damage. If any defect is found, replace CVT oil pan.
