Front Suspension

Suspension Arm Inspection
Reference: Suspension Arm Removal and Installation

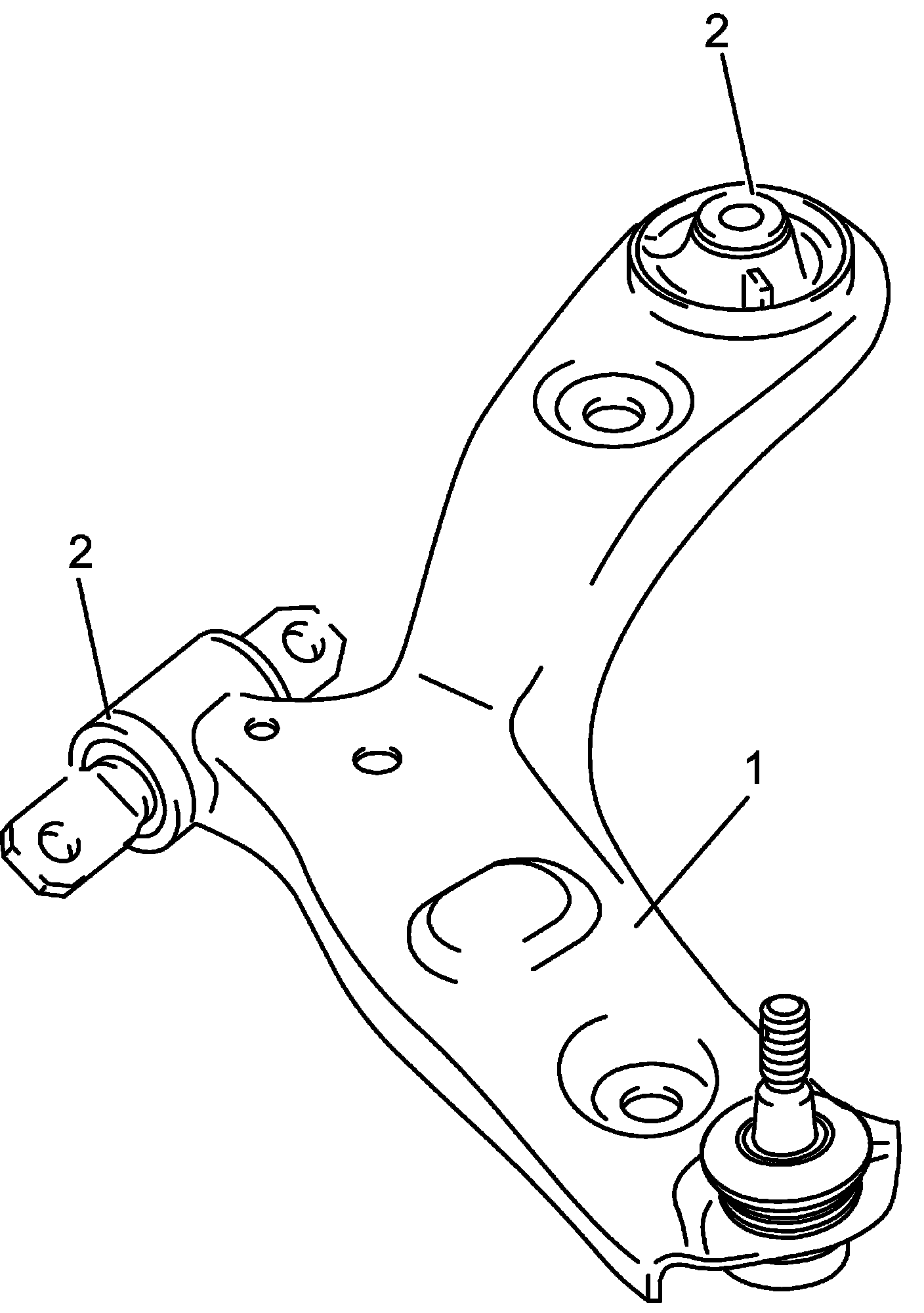

Suspension Arm
Inspect suspension arm (1) for damage and deformation. Replace suspension arm if defective.

Bushing
Inspect bushing (2) for damage, wear and deformation. Replace suspension arm if defective.

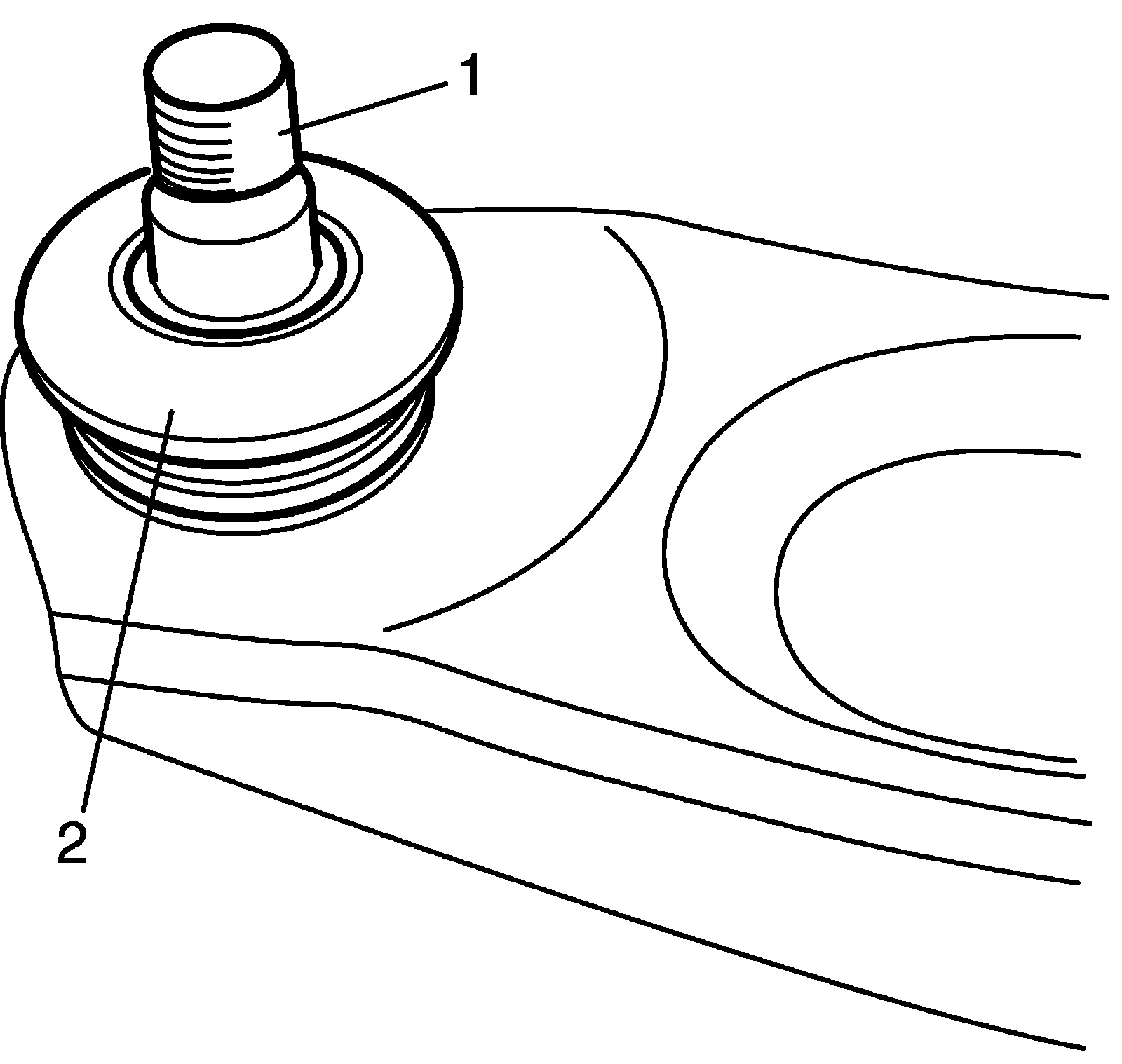

Suspension arm joint
^ Inspect ball stud (1) for stickiness, damage and run-out. Replace suspension arm if defective.
^ Inspect suspension arm joint dust cover (2) for cracks and damage. Replace suspension arm joint dust cover (2) with new one, if defective.

NOTE:
Suspension arm and arm joint cannot be separated.
