Control Rod / Bushing Disassembly and Reassembly
Control Rod / Bushing Disassembly and ReassemblyDisassembly

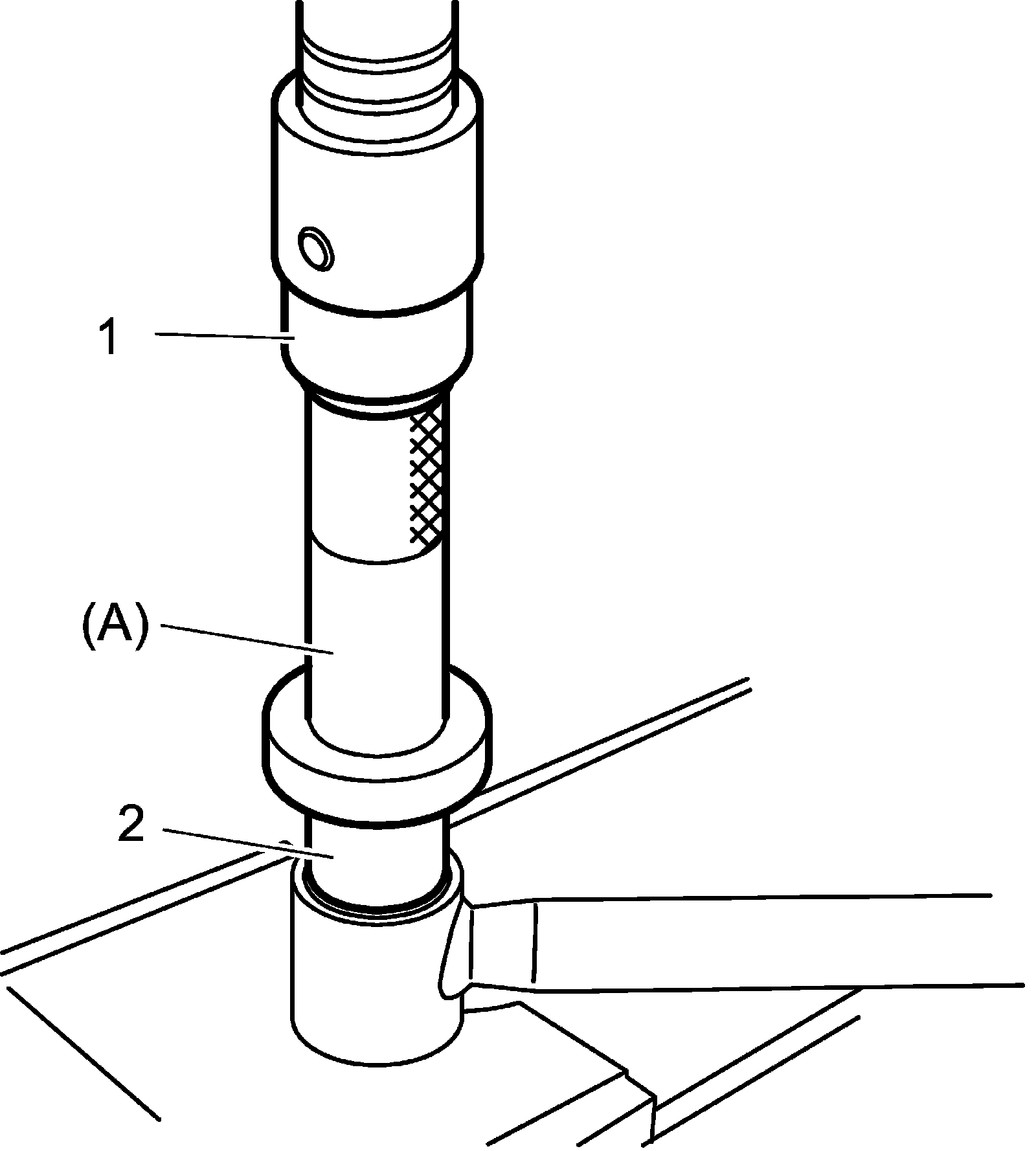

1) Push out control rod bushing (2) by using special tool and hydraulic press (1).
Special Tool
(A): 09913-70210
Reassembly
Reverse disassembly procedure, noting the following points.

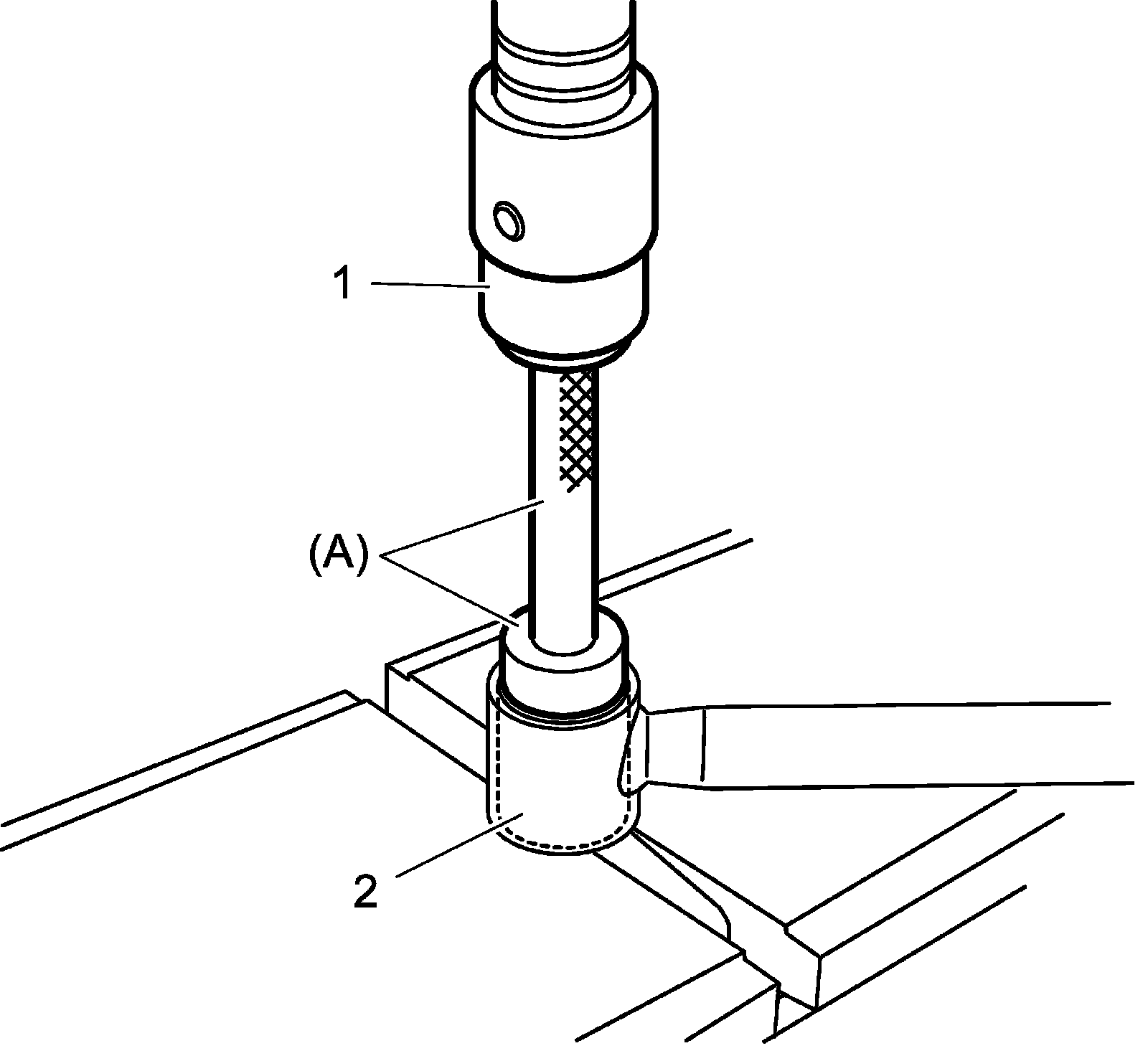

^ Use special tool and hydraulic press (1) to press fit control rod bushing (2).
^ Bushing should be directed as shown below and both ends of bushing collar (4) projecting from control rod should be the same in amount.
CAUTION:
Be sure to use new bushing.
Special Tool
(A): 09913-85210
