Pinout Values and Diagnostic Parameters

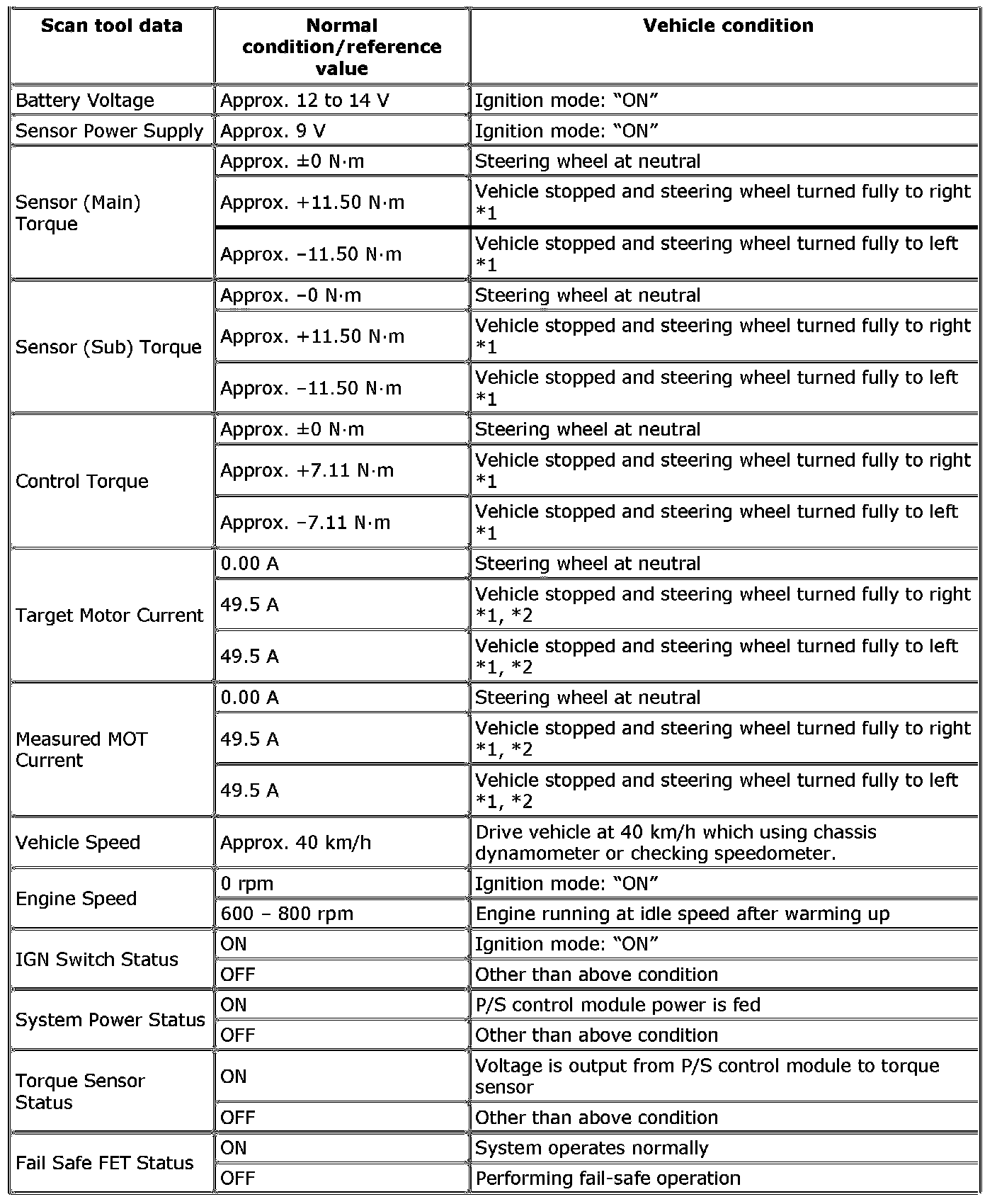

Scan Tool Data

P/S Control Module

NOTE:
^ If communication between SUZUKI scan tool and P/S control module is not possible, check related items according to the following points for recovery.
- SUZUKI scan tool and communication cable
- DLC power circuit and ground circuit
- CAN communication system malfunction (Control Module Communication Bus "Off" is detected in any control module)
^ For "Ignition mode" described in the following table, it means power supply mode in keyless push start system. For more details of ignition mode, refer to Description of Keyless Engine Start Function.
^ *1: Turn steering wheel fully after stopping and hold it with force applied.
^ *2: The voltage and current of motor decreases gradually after few seconds when steering wheel is turned.
