P/S Warning Light Check

P/S Warning Light Check

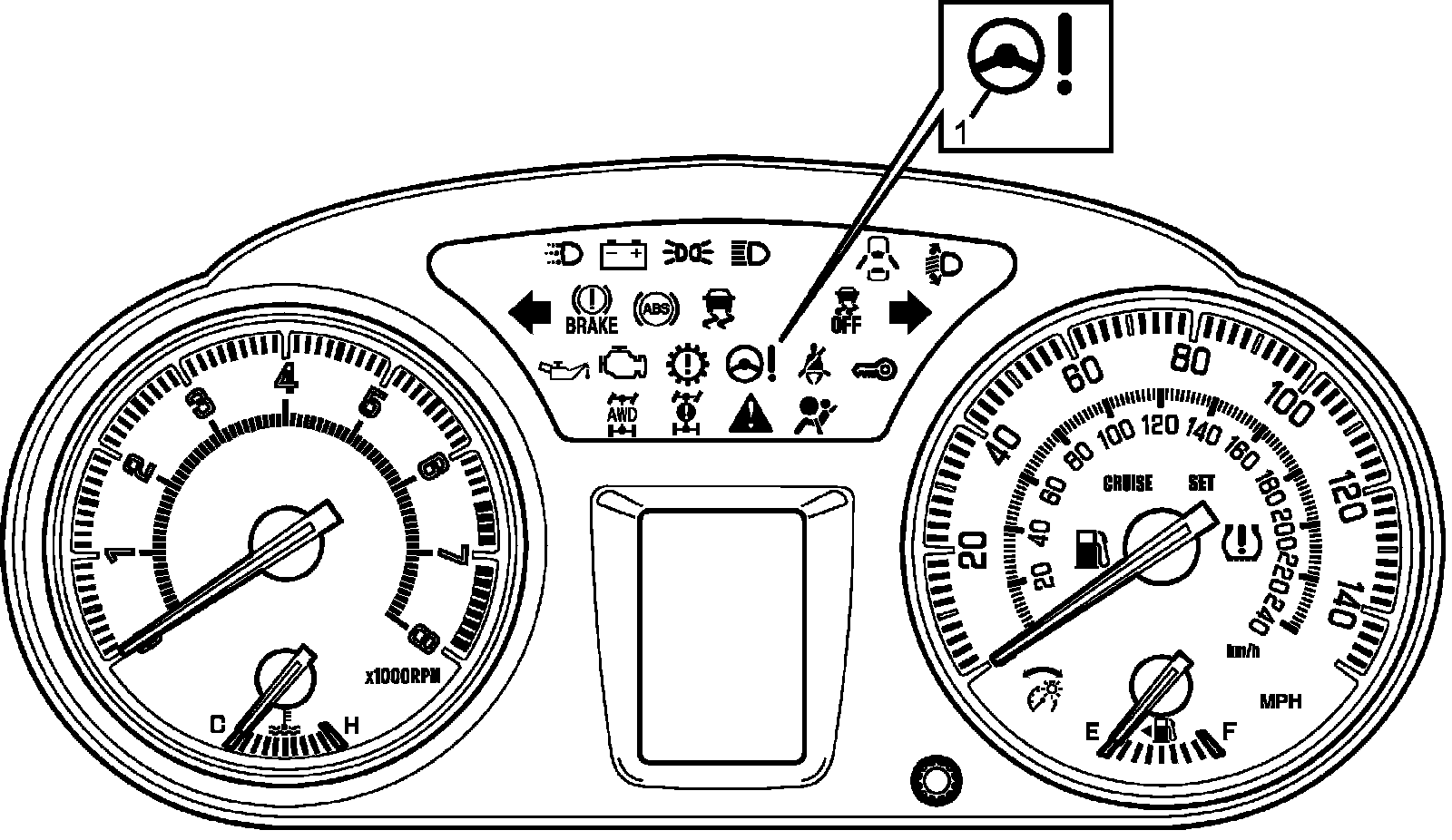

1) Push engine switch to change ignition mode of keyless push start system to "ON" (without engine running) and check if "P/S" warning light (1) comes on. If the light does not come on, go to P/S Warning Light Does Not Come ON with Ignition Mode Change to "ON" before Engine Starts P/S Warning Light Does Not Come On With Ignition Mode Change to "On" Before Engine Starts of the diagnostic flows.
2) Start engine and check if "P/S" warning light turns OFF. If light remains ON and no DTC is detected, go to P/S Warning Light Remains ON Steady after Engine Starts P/S Warning Light Remains On Steady After Engine Starts for troubleshooting.
