Rear Outside Antenna Removal And Installation

Rear Outside Antenna Removal and Installation

Removal
1. Disconnect negative (-) cable at battery.
2. Remove rear bumper.

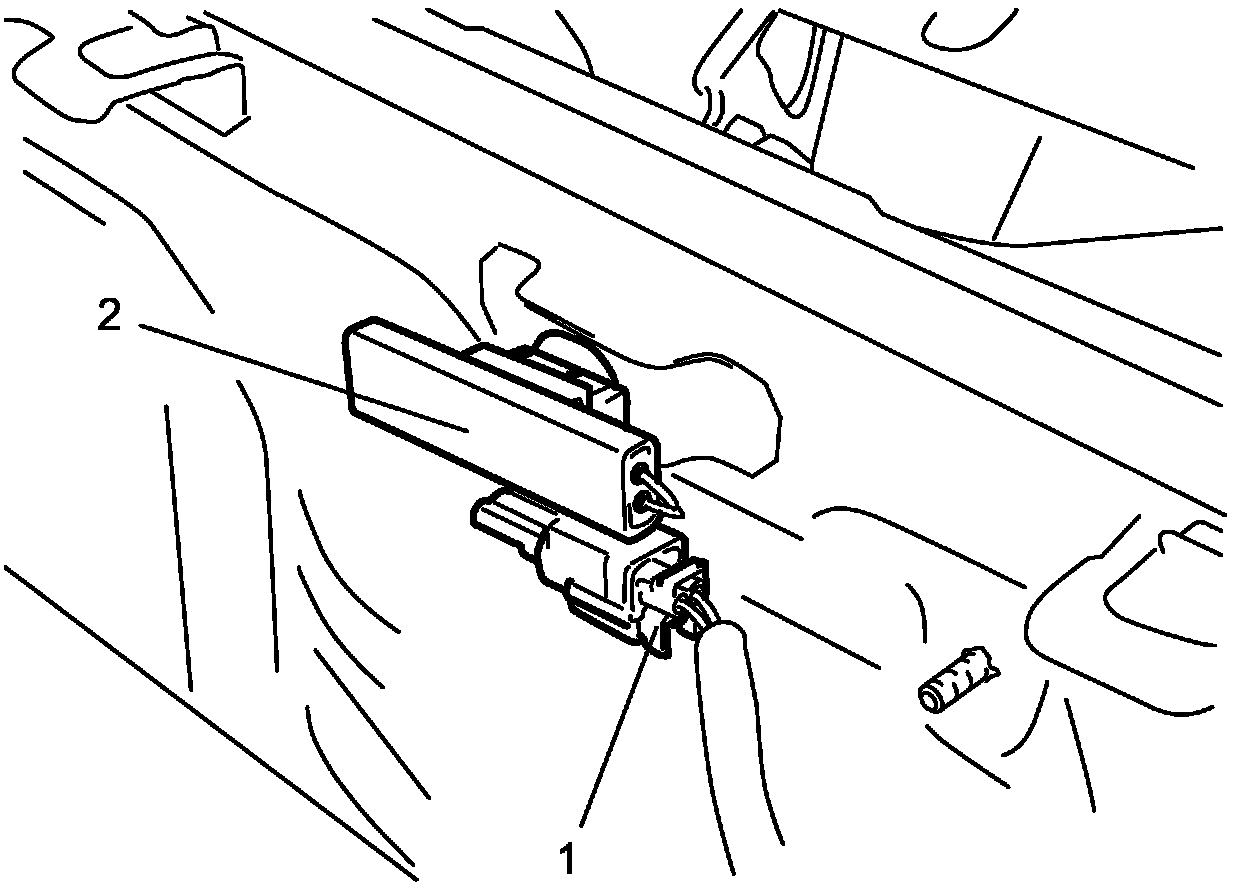

3. Disconnect connector (1), and then remove rear outside antenna (2).







Installation
Reverse removal procedure.
