Rear Inside Antenna Removal And Installation

Rear Inside Antenna Removal and Installation

Removal
1. Disconnect negative (-) cable at battery.
2. Remove partition trim.

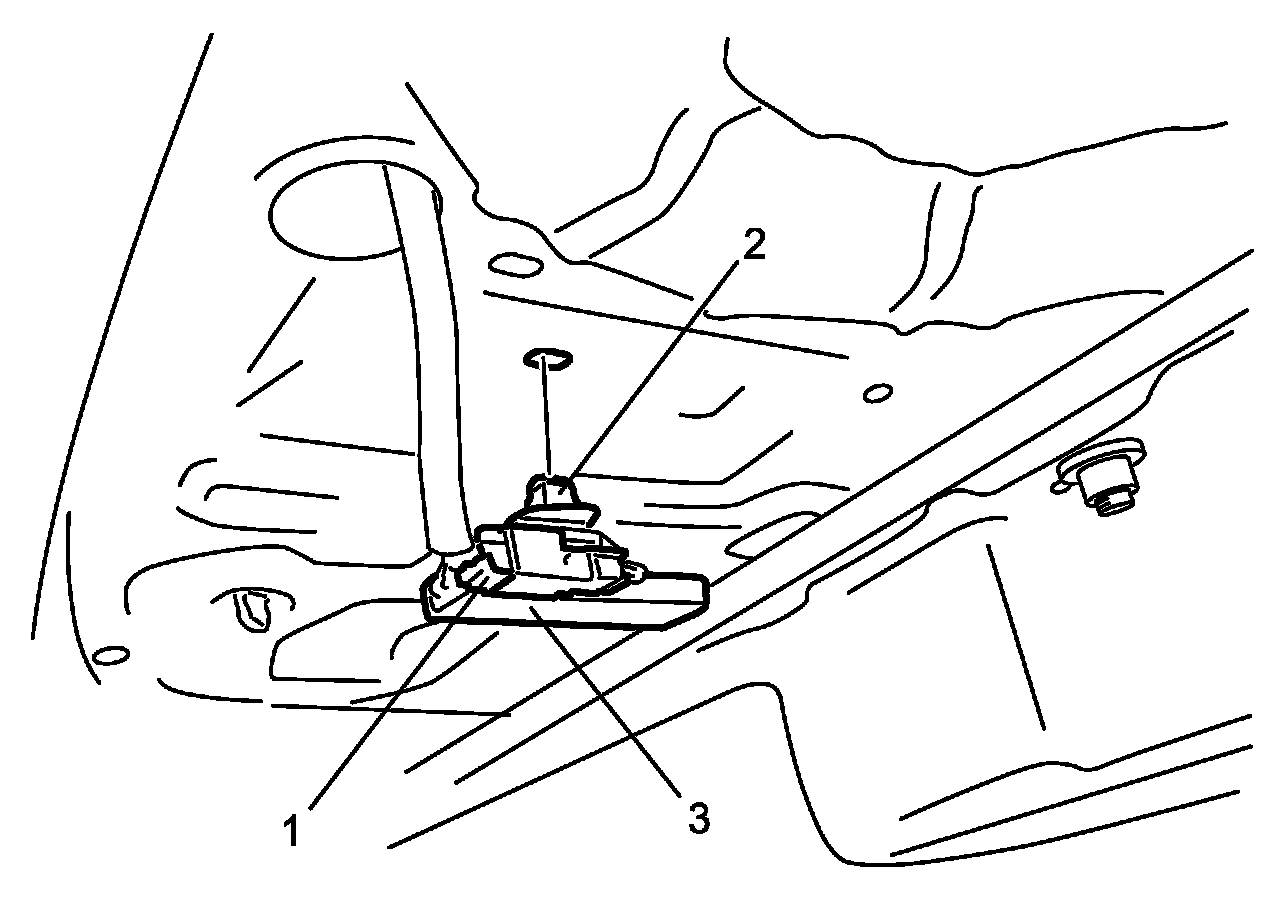

3. Disconnect rear inside antenna connector (1).
4. Remove clip (2), and then remove rear inside antenna (3) from partition panel.







Installation
Reverse removal procedure.
