Mid Inside Antenna Removal And Installation

Mid Inside Antenna Removal and Installation

Removal
1. Disconnect negative (-) cable at battery.
2. Remove center console box.

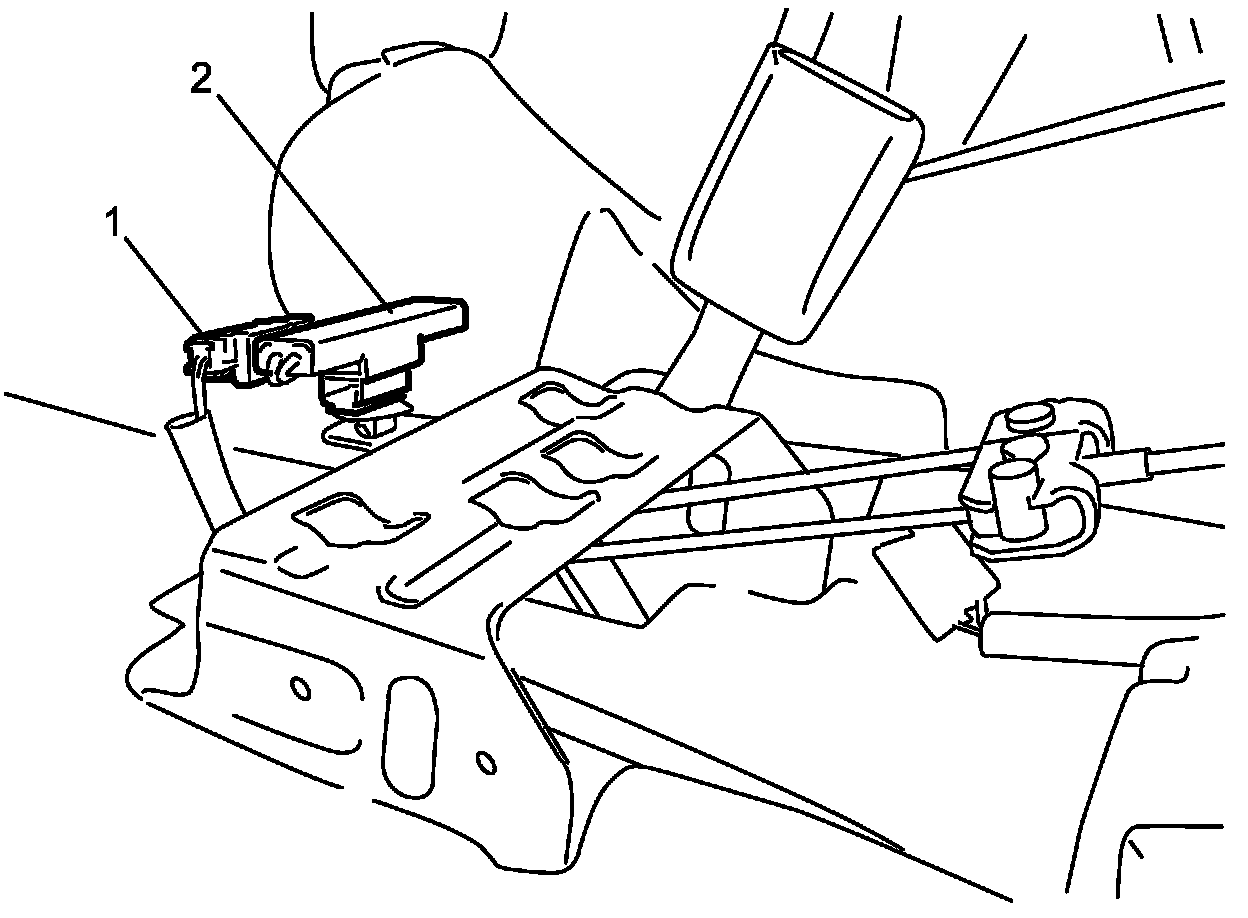

3. Disconnect connector (1), and then remove mid inside antenna (2).







Installation
Reverse removal procedure.
