Battery: Service and Repair

Battery Removal And Installation

Removal

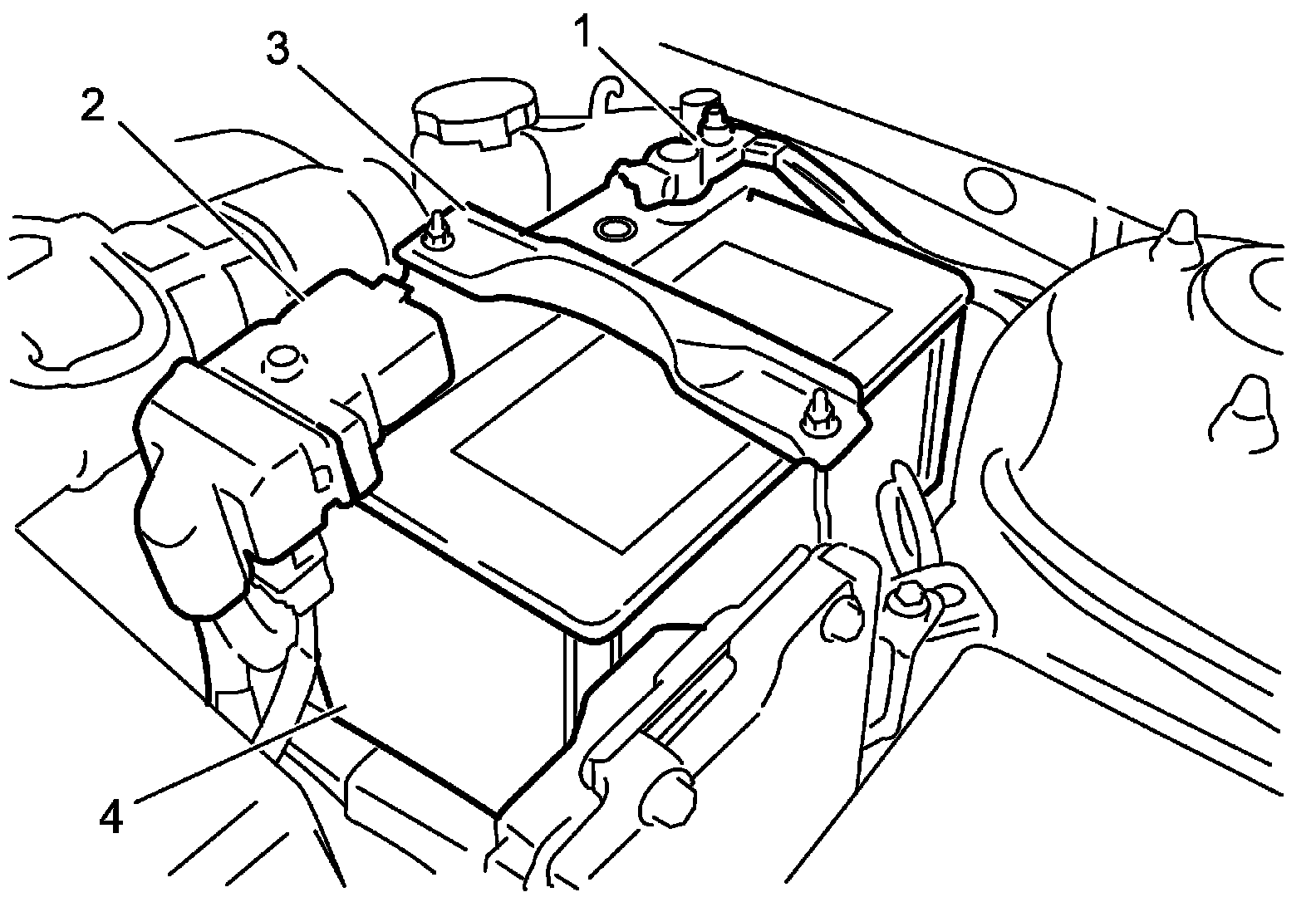

1. Disconnect negative (-) cable (1) at battery (4).
2. Disconnect positive (+) cable (2) at battery.
3. Remove retainer (3).
4. Remove battery.

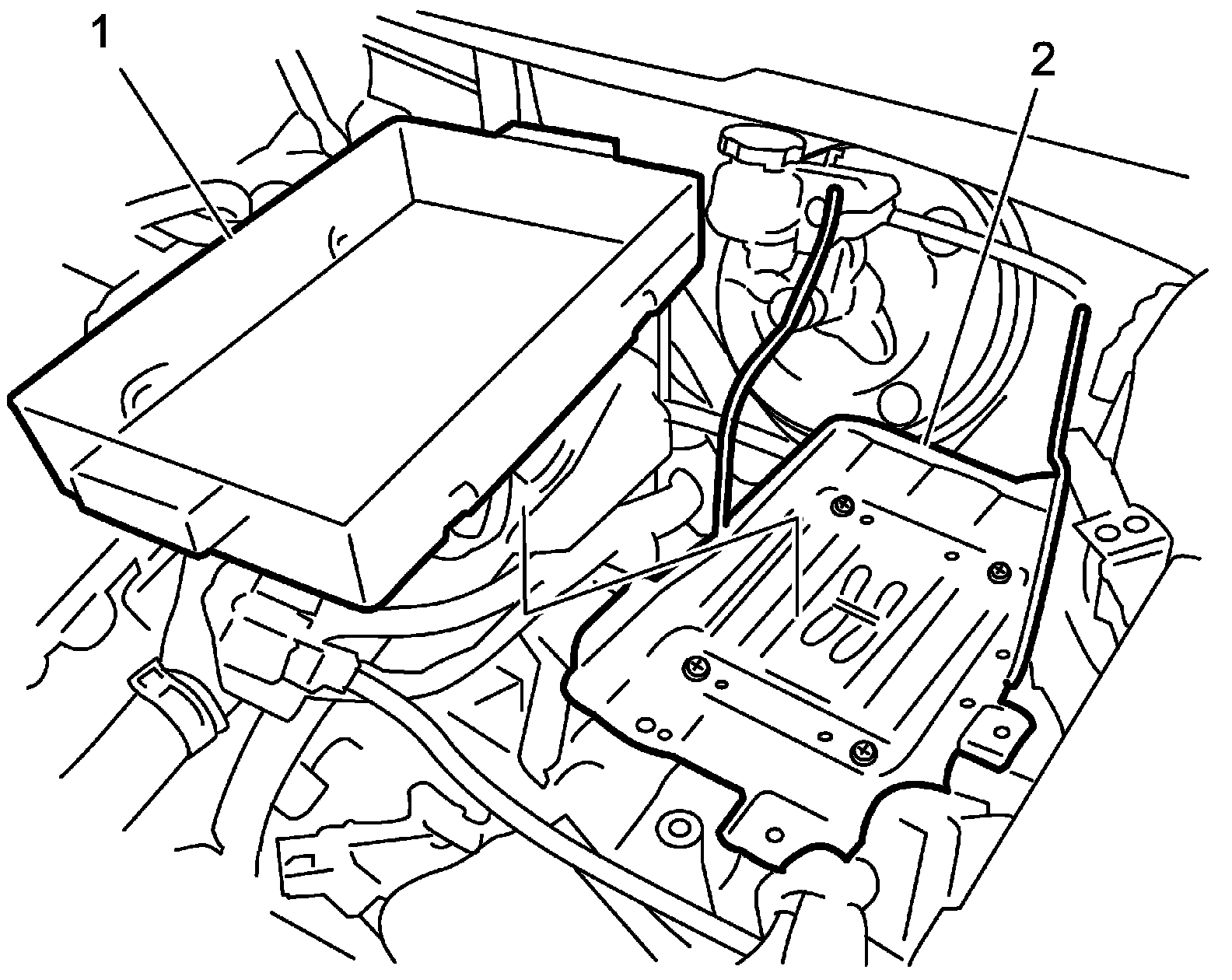

5. Remove battery tray (1).
6. Remove battery bracket (2) by removing air cleaner assembly and ECM if necessary.






Installation
1. Reverse removal procedure.
2. Tighten battery cables securely.
3. Initialize electrical devices if necessary.
