Clockspring Assembly / Spiral Cable: Testing and Inspection

Contact Coil Cable And Its Circuit Check

Circuit Diagram

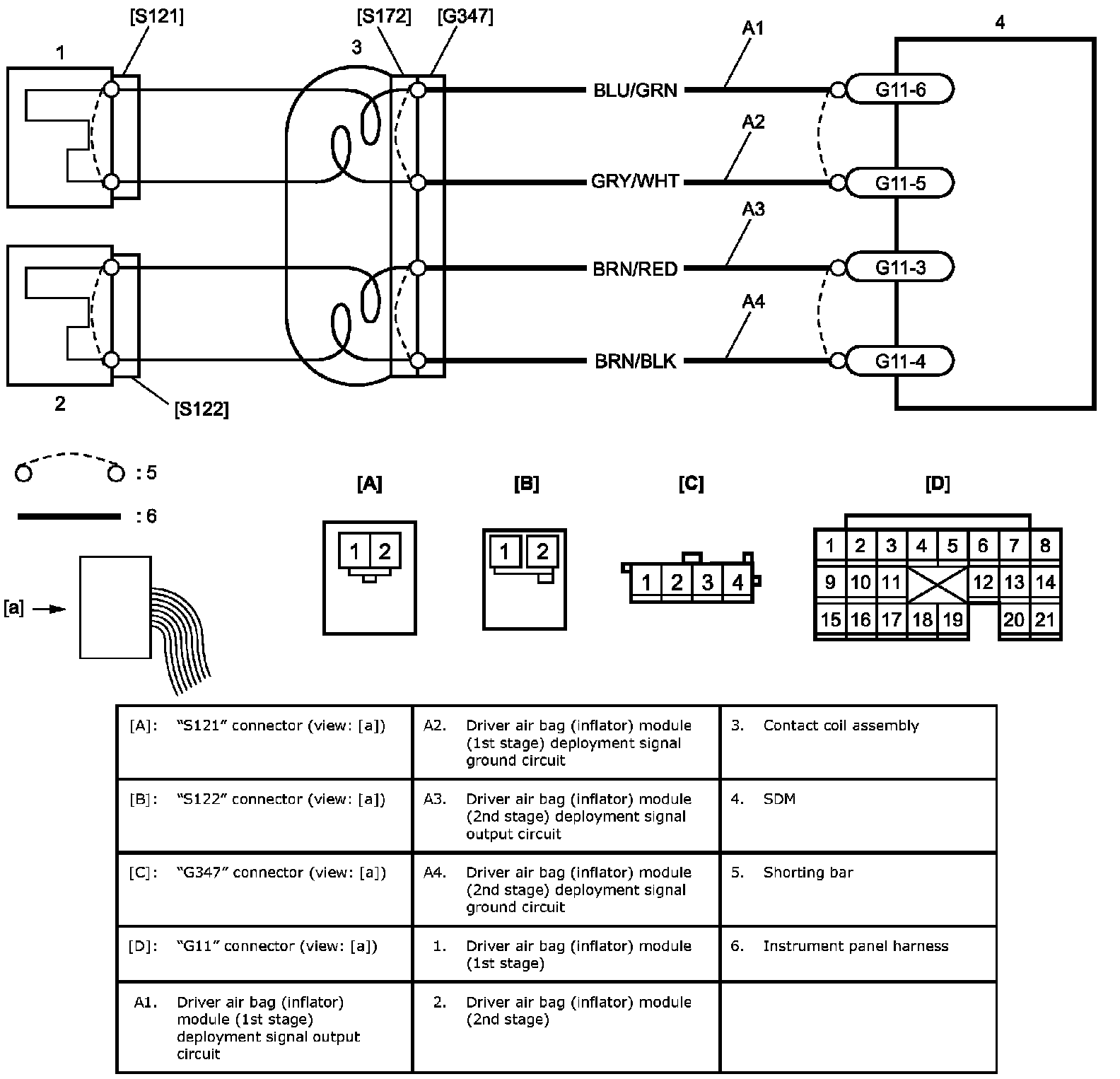

Circuit Diagram:






Troubleshooting

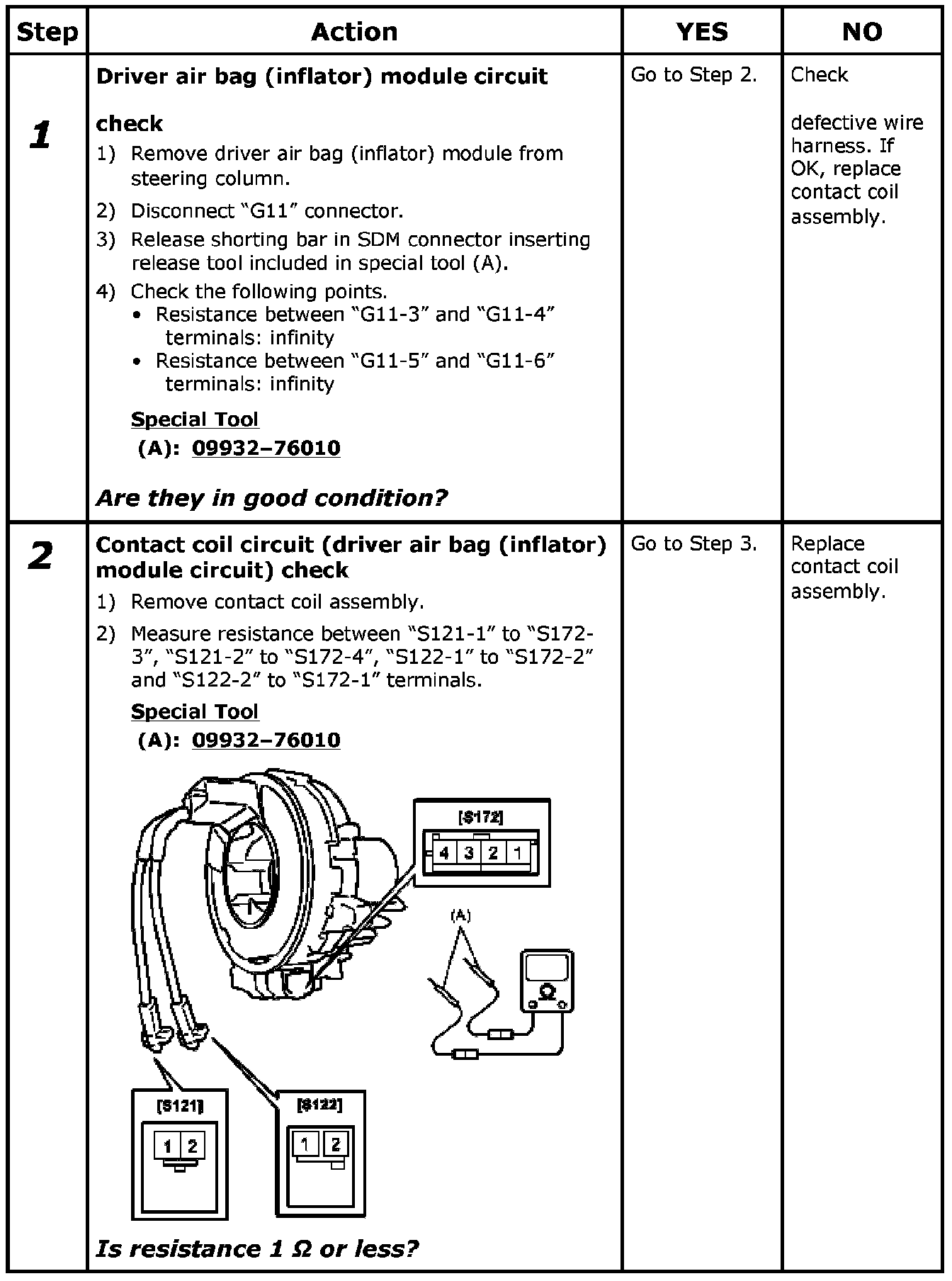

Step 1-2:

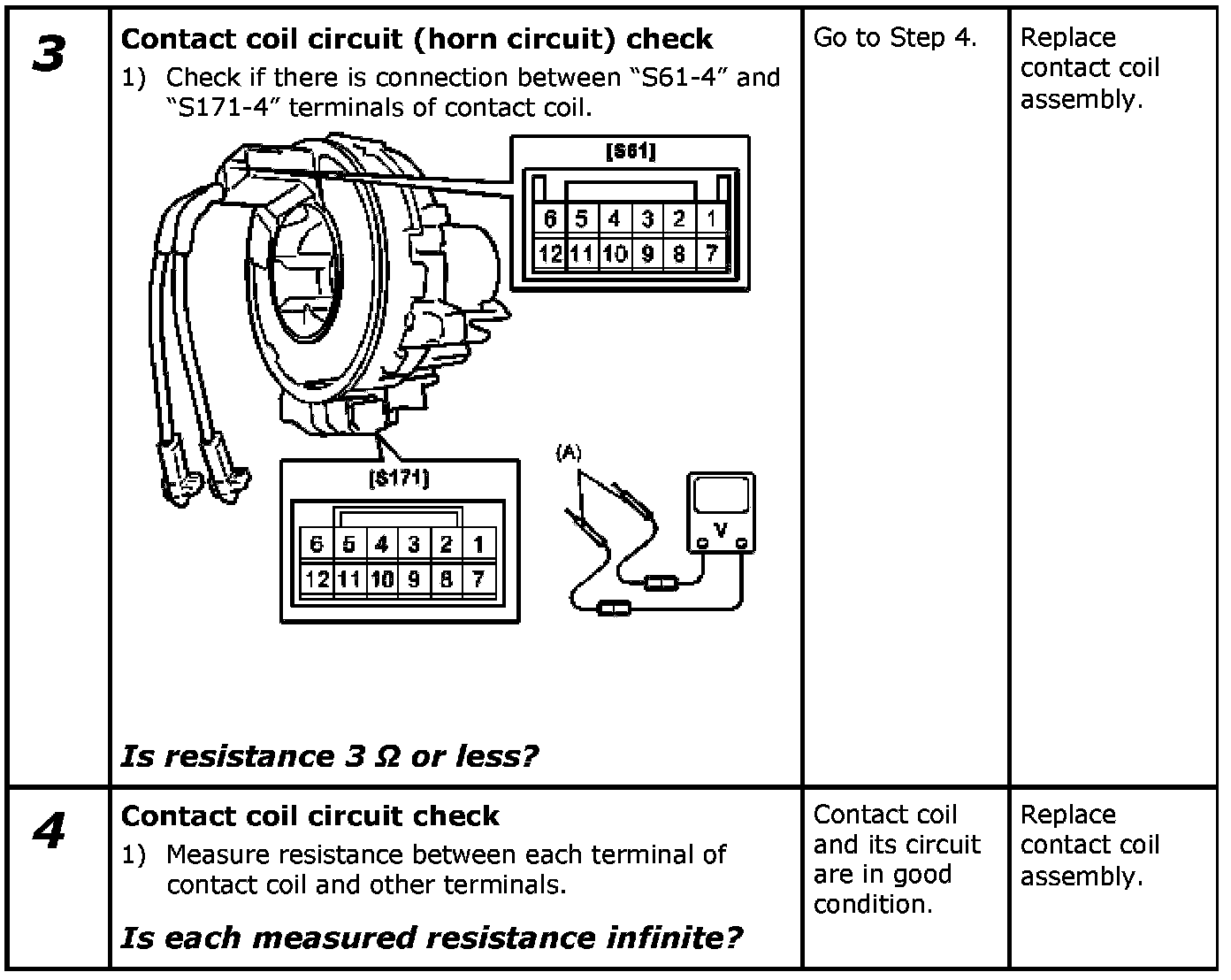

Step 3-4:
