Passenger Air Bag (Inflator) Module Inspection

Passenger Air Bag (inflator) Module Inspection

WARNING:

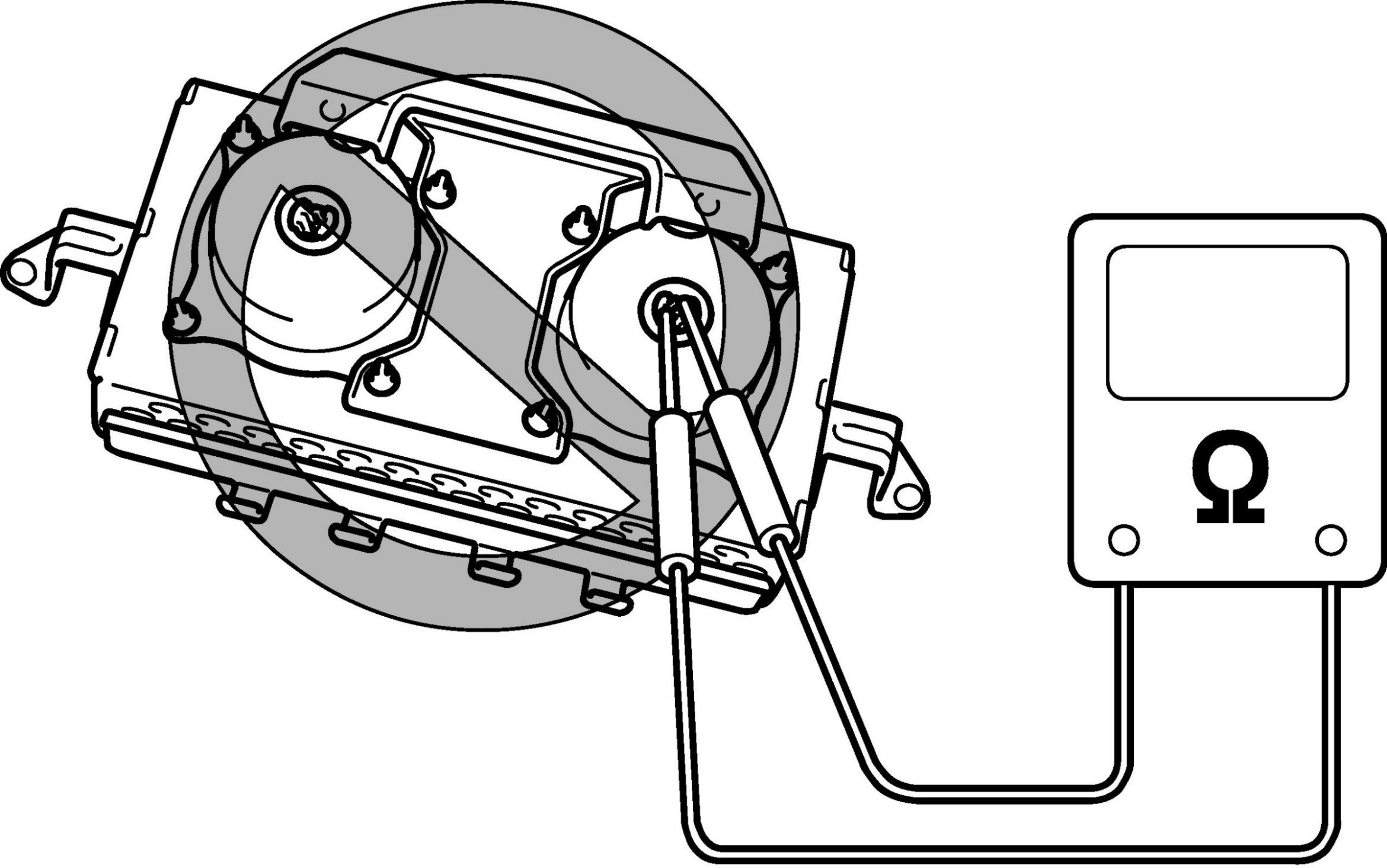

- Never measure resistance of air bag (inflator) module. Current of tester can deploy air bag.

- Never repair or disassemble air bag (inflator) module.

Check air bag (inflator) module and if any of the following condition is found, replace air bag (inflator) module with new one.
- Air bag being deployed.
- Air bag (inflator) module being deformed or damaged.
- Connector being damaged.
- Bend or deformity of air bag (inflator) module bracket.
