Driver Air Bag (Inflator) Module Inspection
Driver Air Bag (inflator) Module InspectionWARNING:

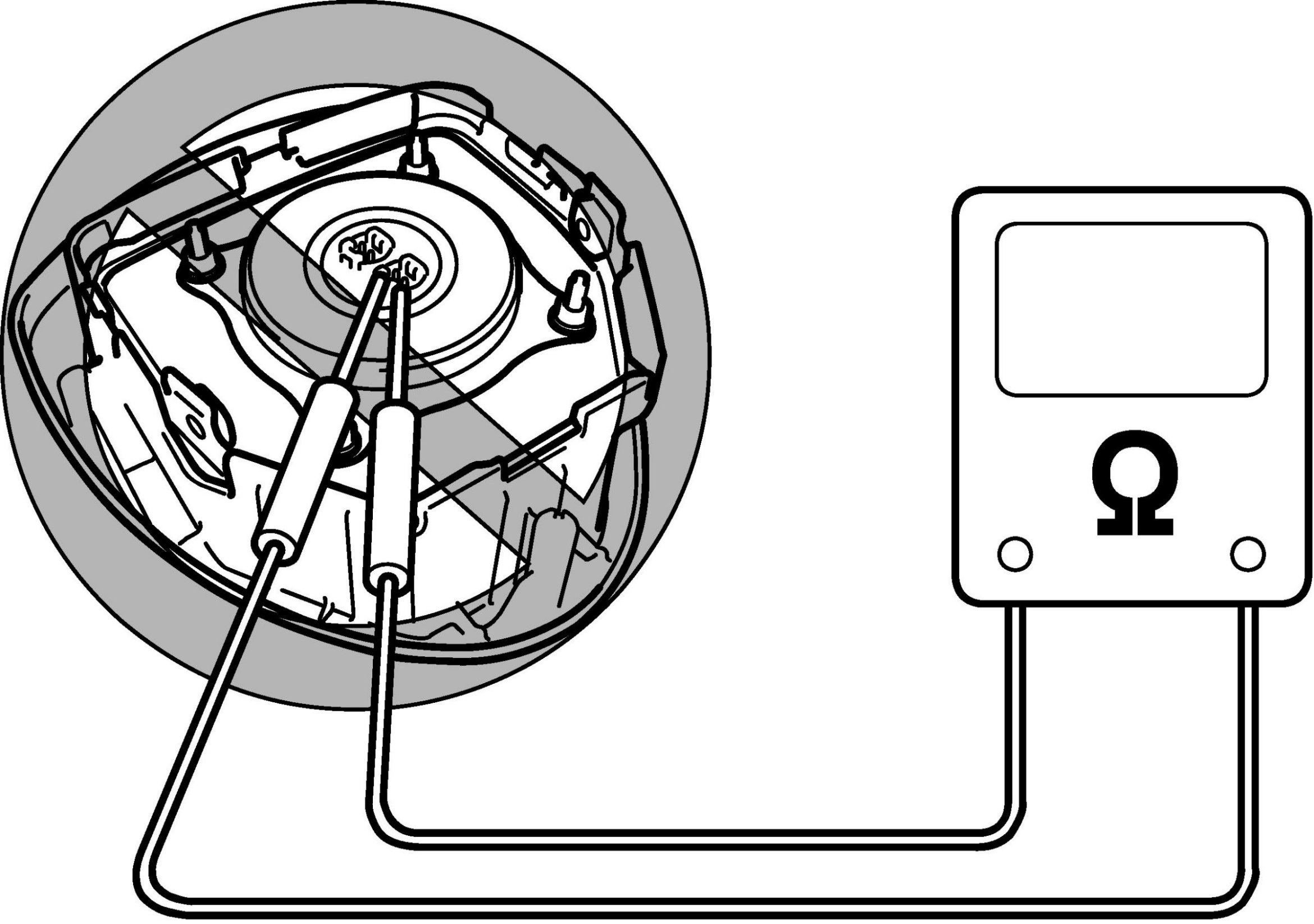

- Never measure resistance of air bag (inflator) module. Current of tester can deploy air bag.
- Never repair or disassemble air bag (inflator) module.
Check air bag (inflator) module and if any of the following condition is found, replace air bag (inflator) module or steering wheel with new one.
- Air bag being deployed.
- Air bag (inflator) module being deformed or damaged
- Connector being damaged
- Air bag (inflator) module bracket of steering wheel being deformed or damaged

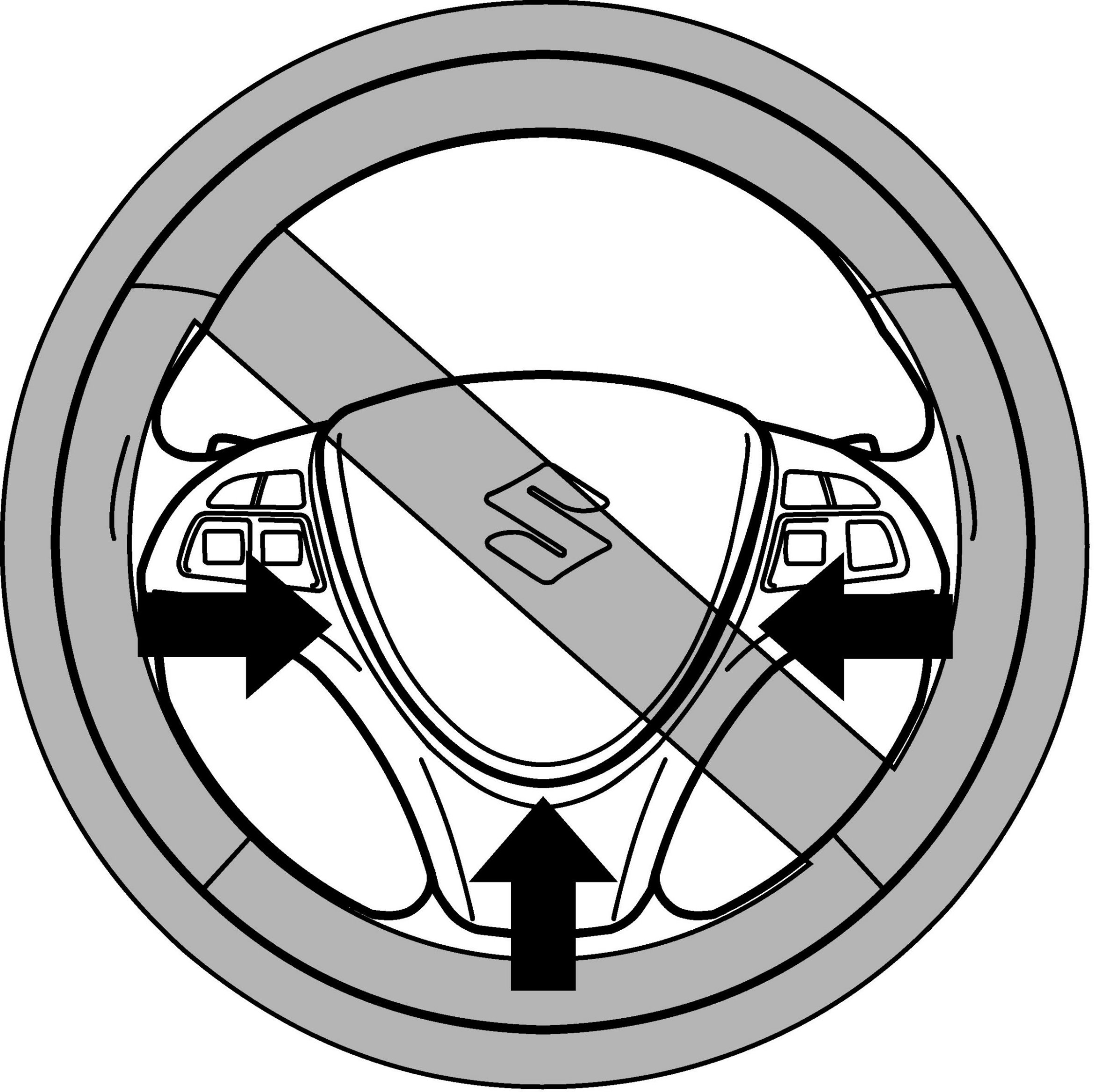

- Unable to install new air bag (inflator) module smoothly (Clearance between steering wheel and air bag (inflator) module is uneven)
