Air Cleaner Assembly Removal and Installation
Air Cleaner Assembly Removal and InstallationReference: Air Cleaner Components
Removal
1) Disconnect negative (-) cable at battery.

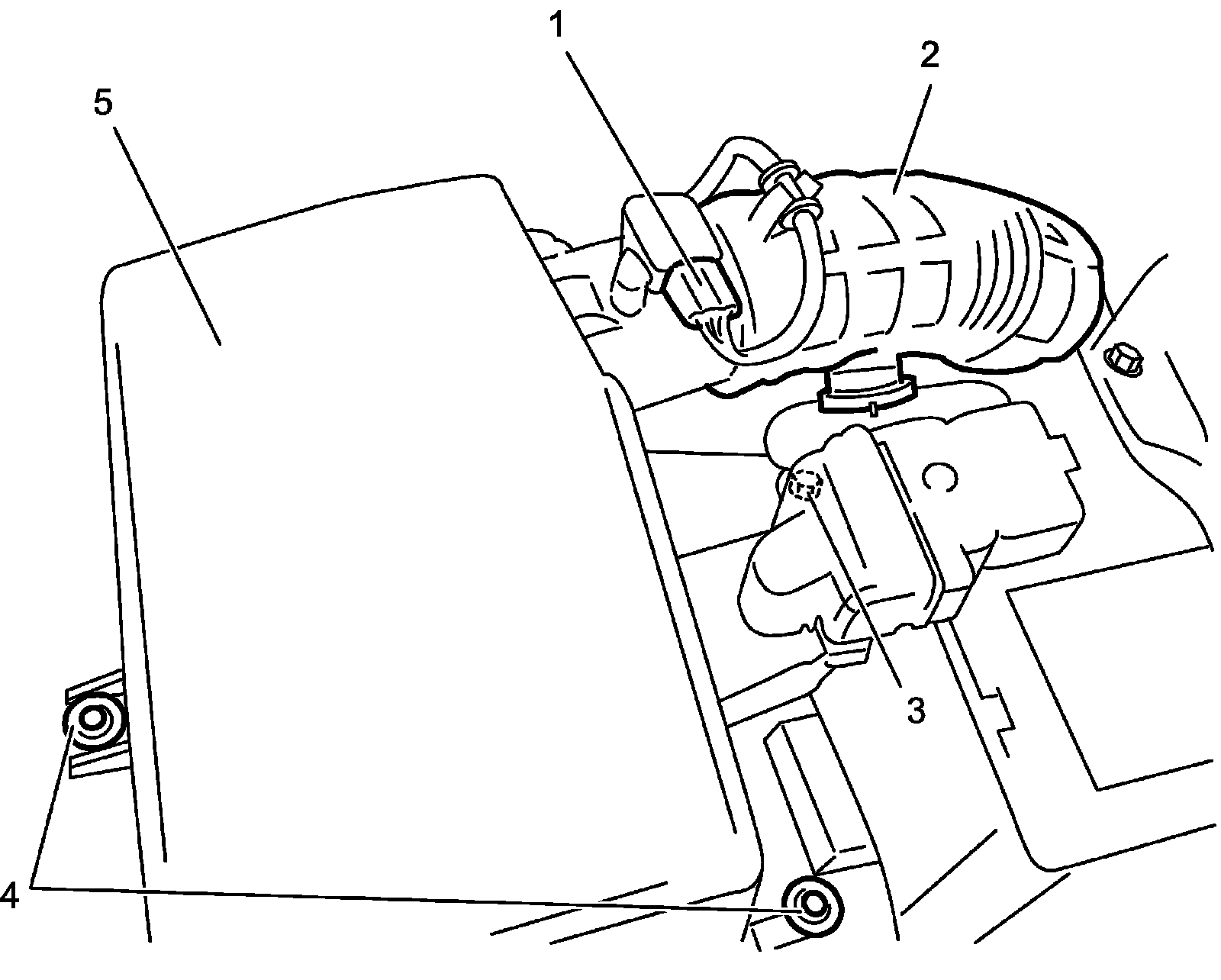

2) Disconnect MAF and IAT sensor connector (1).
3) Remove air cleaner outlet hose (2).
4) Remove air cleaner bolts No.1 (3) and No.2 (4).
5) Remove air cleaner assembly (5).
Installation
Reverse removal procedure for installation noting the following points:
^ Align matchmark of air cleaner outlet hose and air cleaner suction hose when installing.

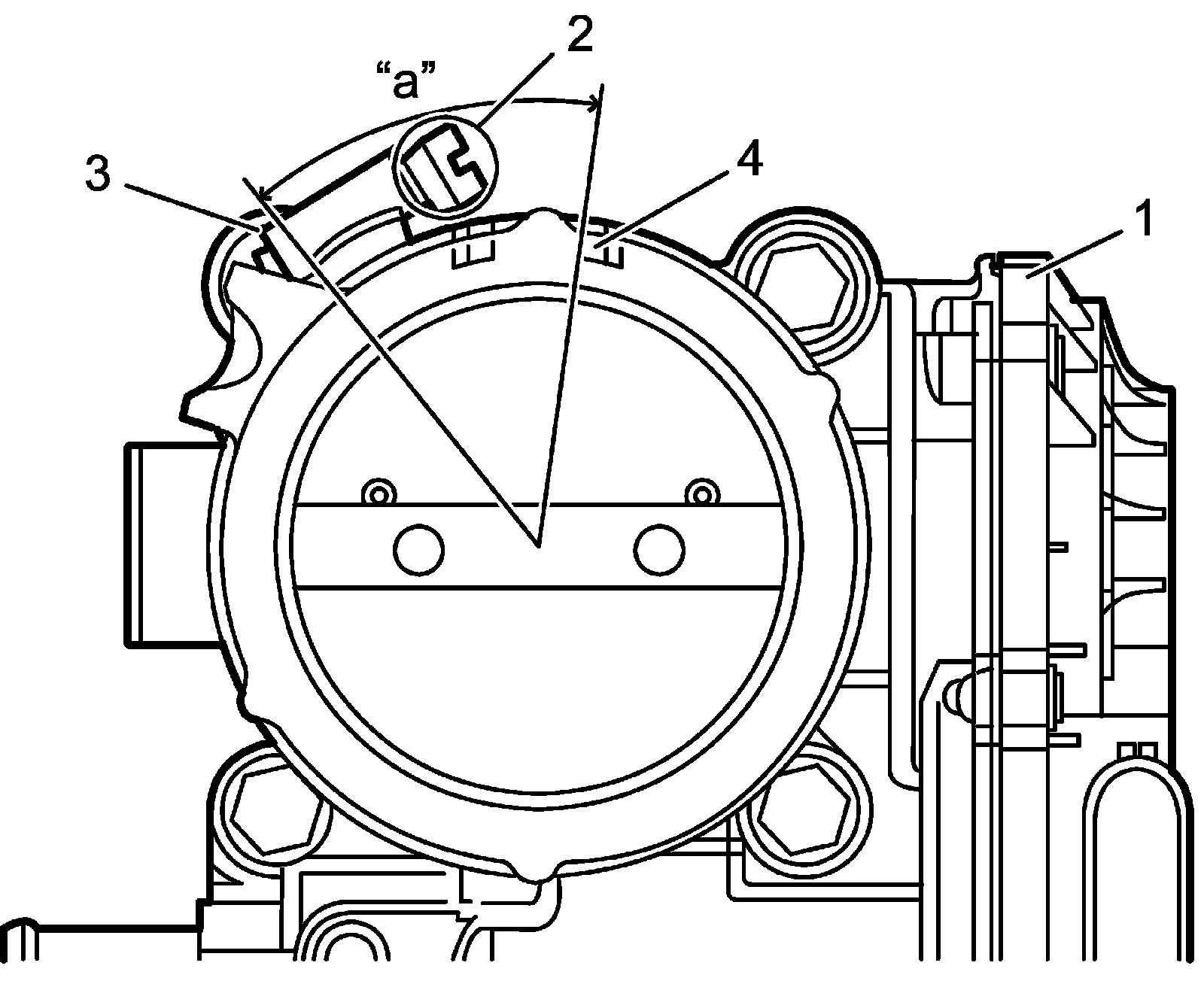

^ Install throttle body (1) side clamp bolt head (2) within specified range "a" shown below and tighten it to specified torque.
^ Tighten clamps and bolts to specified torque.
