Fuel Supply Line: Testing and Inspection

Fuel Line On-Vehicle Inspection

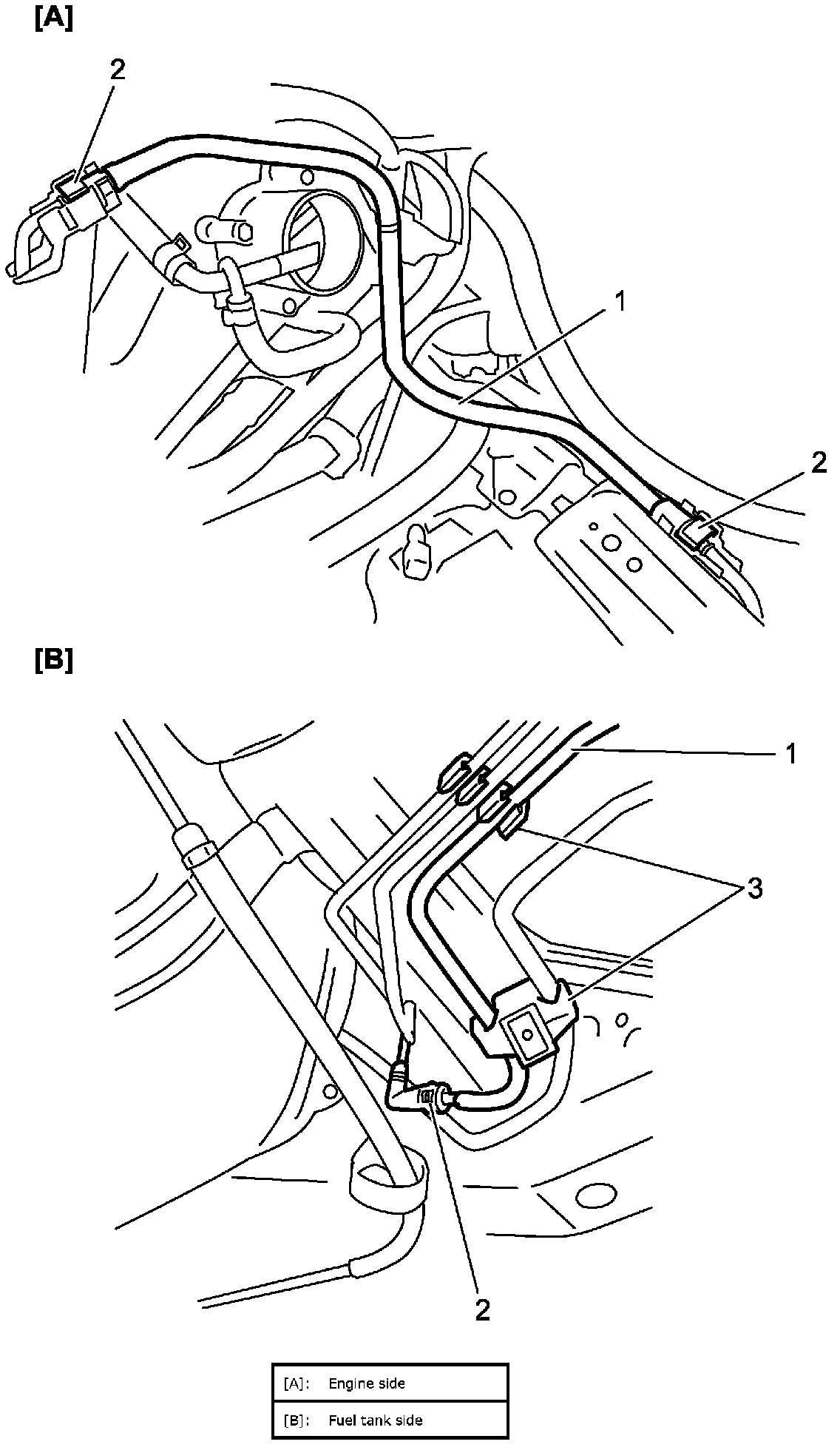

Visually inspect fuel lines for evidence of fuel leakage, pipe (1) crack, deterioration and damage.
Check that quick joint (2) is connected securely.
Make sure all clamps (3) are secure.
Replace parts as needed.
