Suzuki
>>
2010
>>
Kizashi AWD L4-2.4L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>
Fuse, Relay Side
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuse, Relay Side

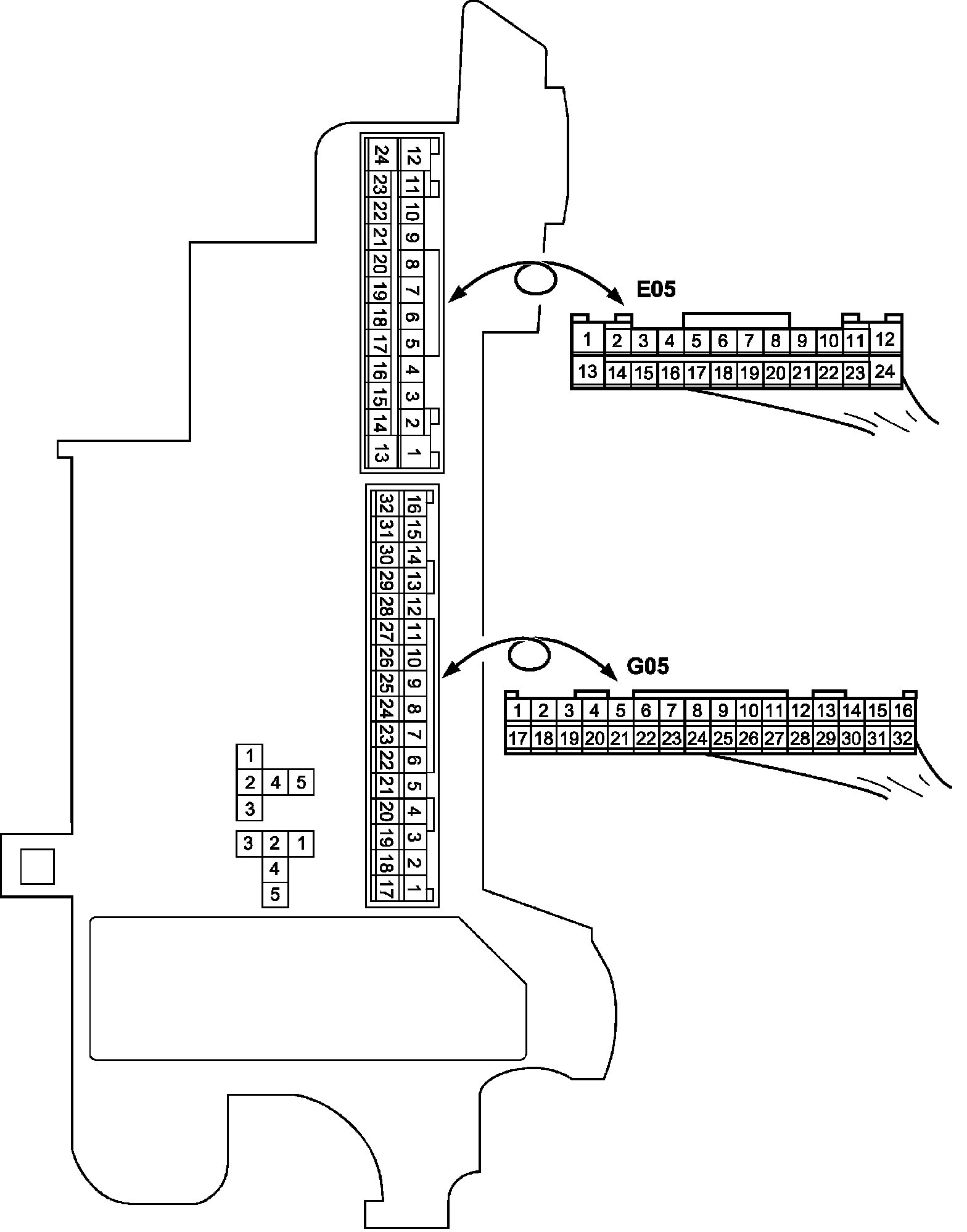

Relay Box No. 2 Connector Layout
Fuse, Relay Side
Relay Box No. 2 Connector Layout - Fuse, Relay Side:
