Grounding Point: Application and ID

Reassembling Note for Wiring Harness

Refer to Around Engine
Refer to Around Battery
Refer to Around Strut
Refer to Around Instrument Panel
Refer to Around Main Floor
Refer to Around Fuel Tank

Ground Bolt Used on Painted Panels

The bolts are specially designed to get good metal-to-metal contact on painted panels.
Be sure to use the specified ground bolt.
Using an ordinary bolt can cause poor grounding on painted panels.

CAUTION: Using this bolt on aluminum blocks will damage the screw hole of the block. Never use this bolt on aluminum blocks.

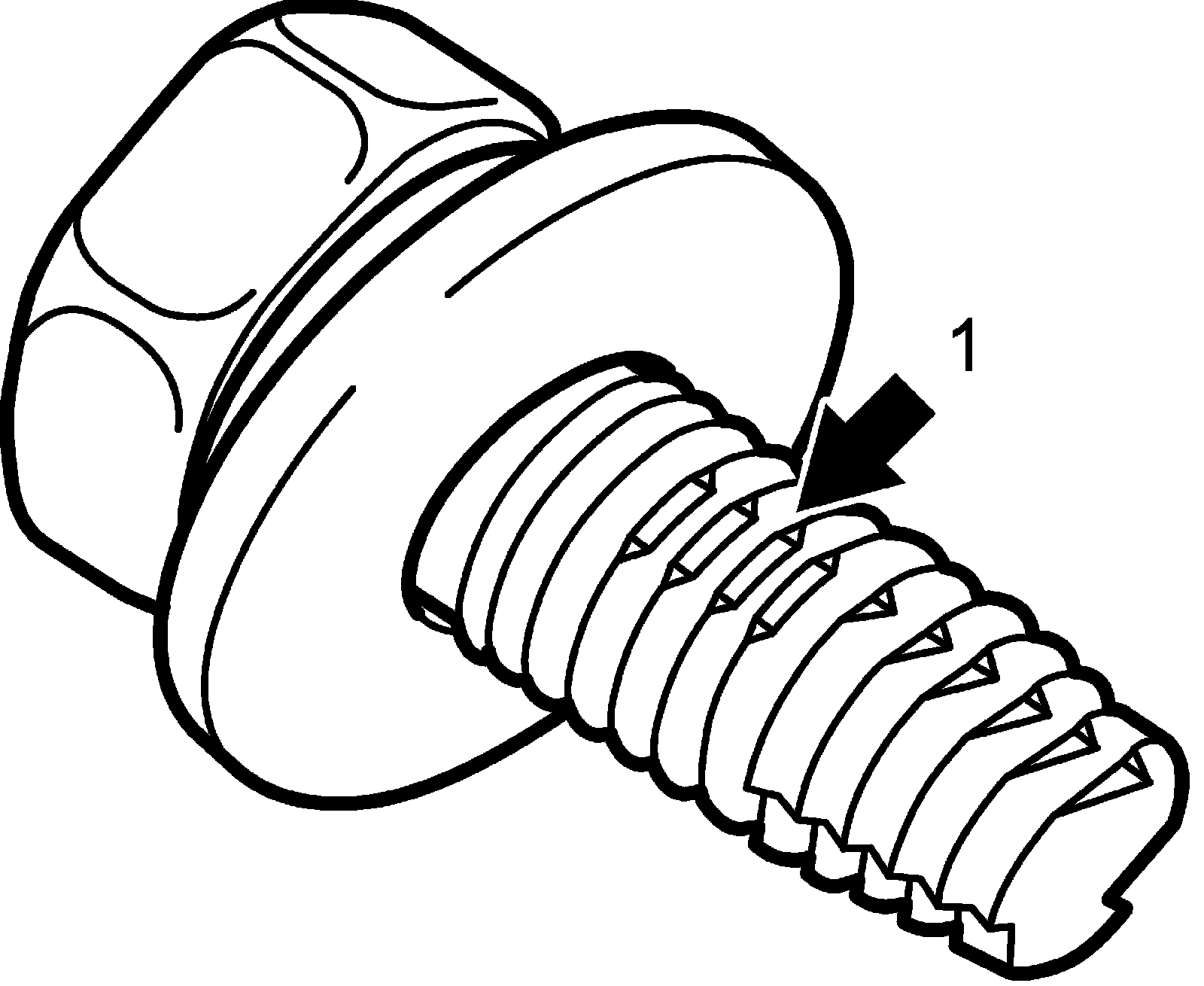

NOTE: This ground bolt is not used on the engine block, the transmission case or the steering column mounting bracket (non-painted). Identify the bolt with the paint-scratch shape (1) on the screw.
