Manual Transaxle Oil Level Check

Manual Transaxle Oil Level Check
1) Hoist vehicle horizontally.
2) Remove left side engine undercover.

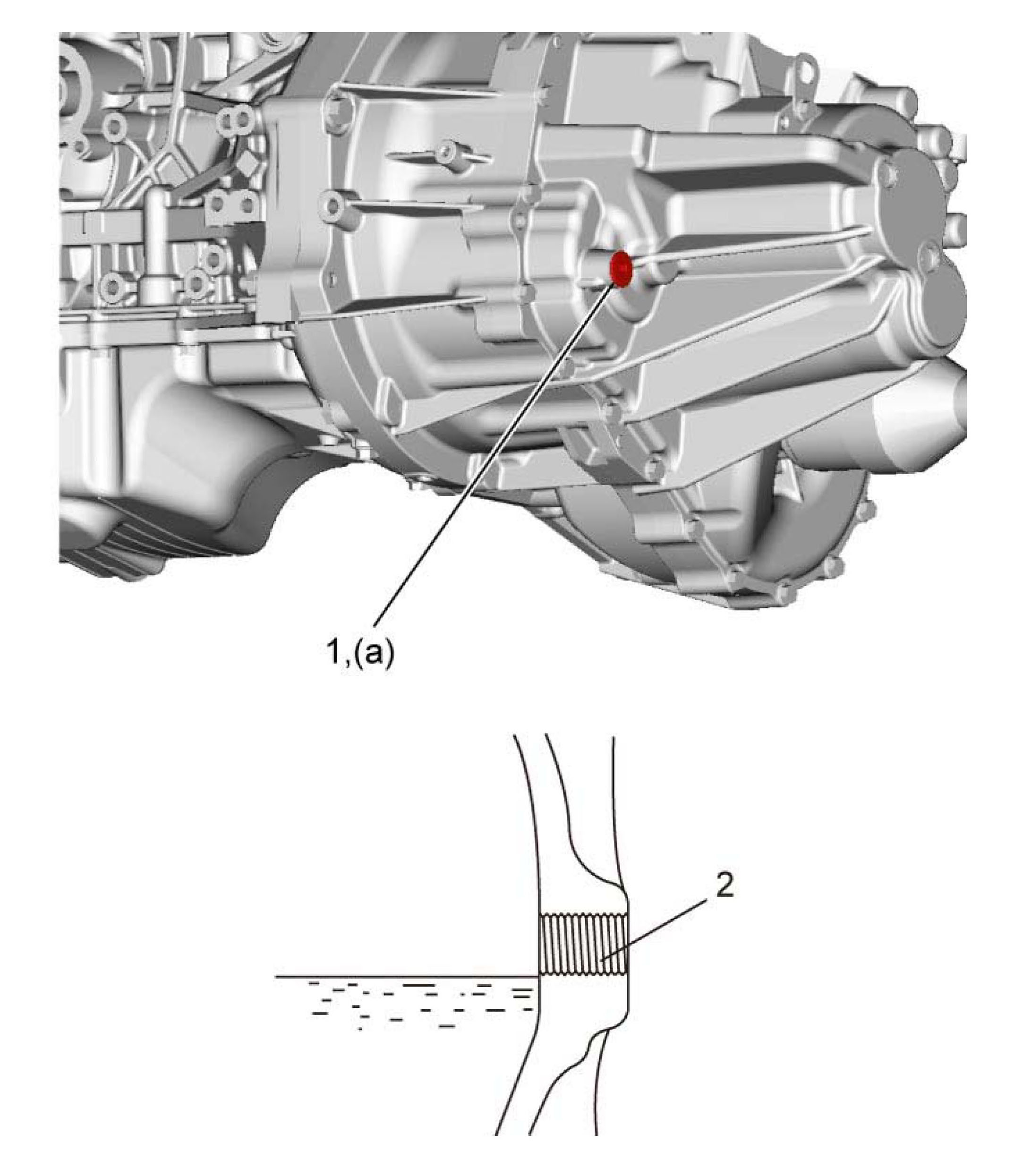

3) Remove transaxle oil level / filler plug (1) and gasket, and confirm oil flow from oil level / filler plug hole (2). If oil does not flow, pour specified oil until a little oil flows from oil level / filler plug hole.
4) Install transaxle oil level / filler plug with new gasket, and then tighten it to specified torque.

Tightening torque
Transaxle oil level / filler plug (a): 27 Nm (2.8 kg-m, 20.0 lbf-ft)
